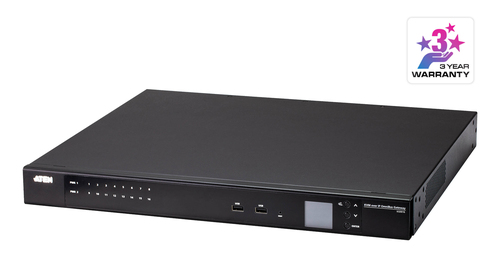

KG0016 KVM switch Rack mounting Black
Model KG0016EAN 672792015076
38 specifications
- Display4.06 cm (1.6")
- Weight6.43 kg
- ColourBlack
- Number of computers controlled16
- Ethernet LANYes
- HD typeFull HD
Overview
- Display
- 4.06 cm (1.6")
- Weight
- 6.43 kg
- Colour
- Black
- Number of computers controlled
- 16
- Ethernet LAN
- Yes
- HD type
- Full HD
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KG0016
- Part numbers
- KG0016, KG0016-AX-U
- EAN / UPC
- 672792015076
- Also known as
- ATEN KG0016 KVM switch Rack mounting Black
Specifications
38 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Console ports | RJ–45 |
| Console RJ-45 ports quantity | 16 |
| Serial port type | RJ-45 |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Security algorithms | TLS |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum resolution | 1920 x 1080 pixels |
| Video bandwidth | 60 Hz |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 4.06 cm (1.6") |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.5 A |
| Power consumption (typical) | 34.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 379 mm |
| Depth | 433.6 mm |
| Height | 44 mm |
| Weight | 6.43 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 505 mm |
| Package depth | 575 mm |
| Package height | 128 mm |
| Package weight | 8.48 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
