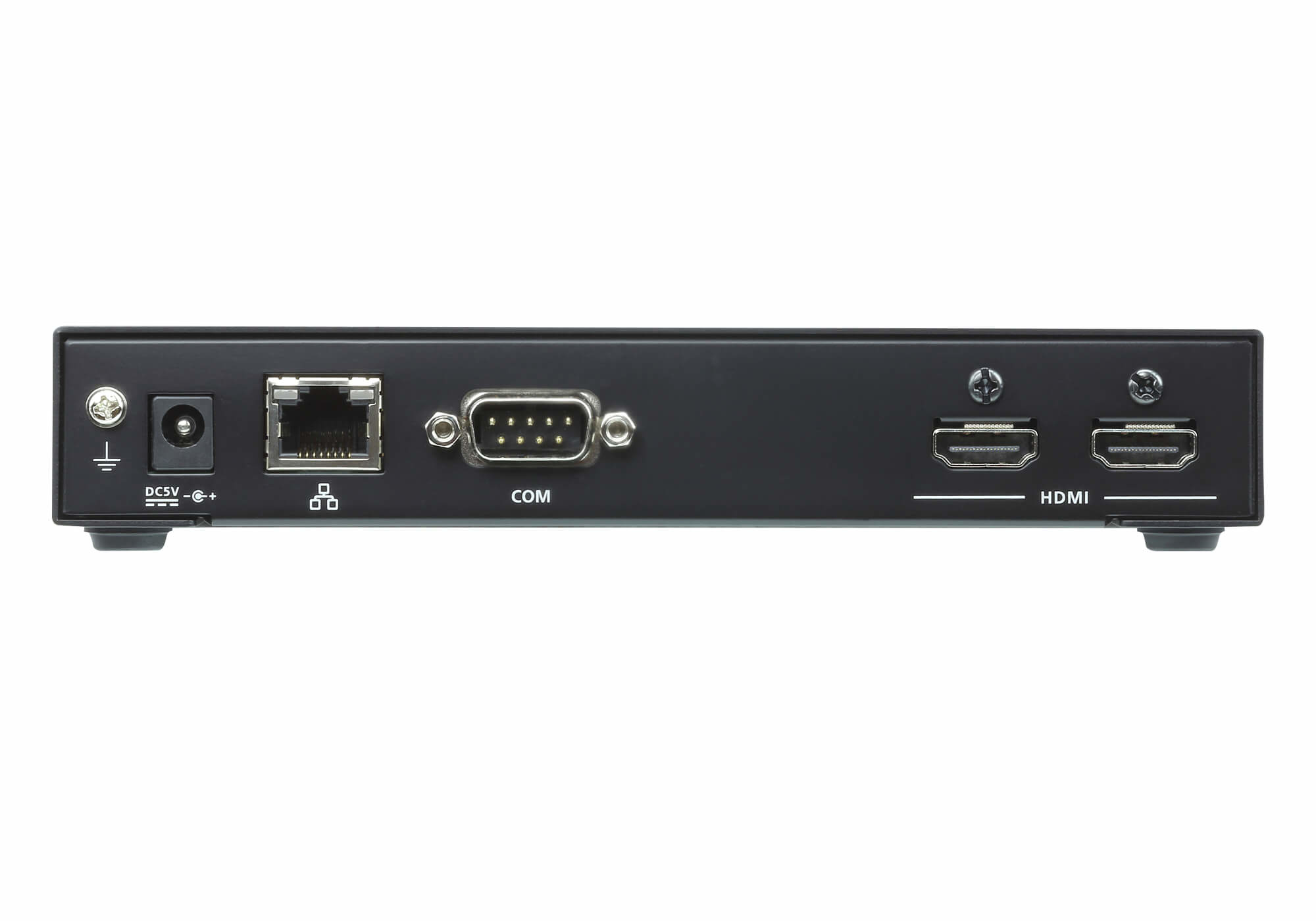

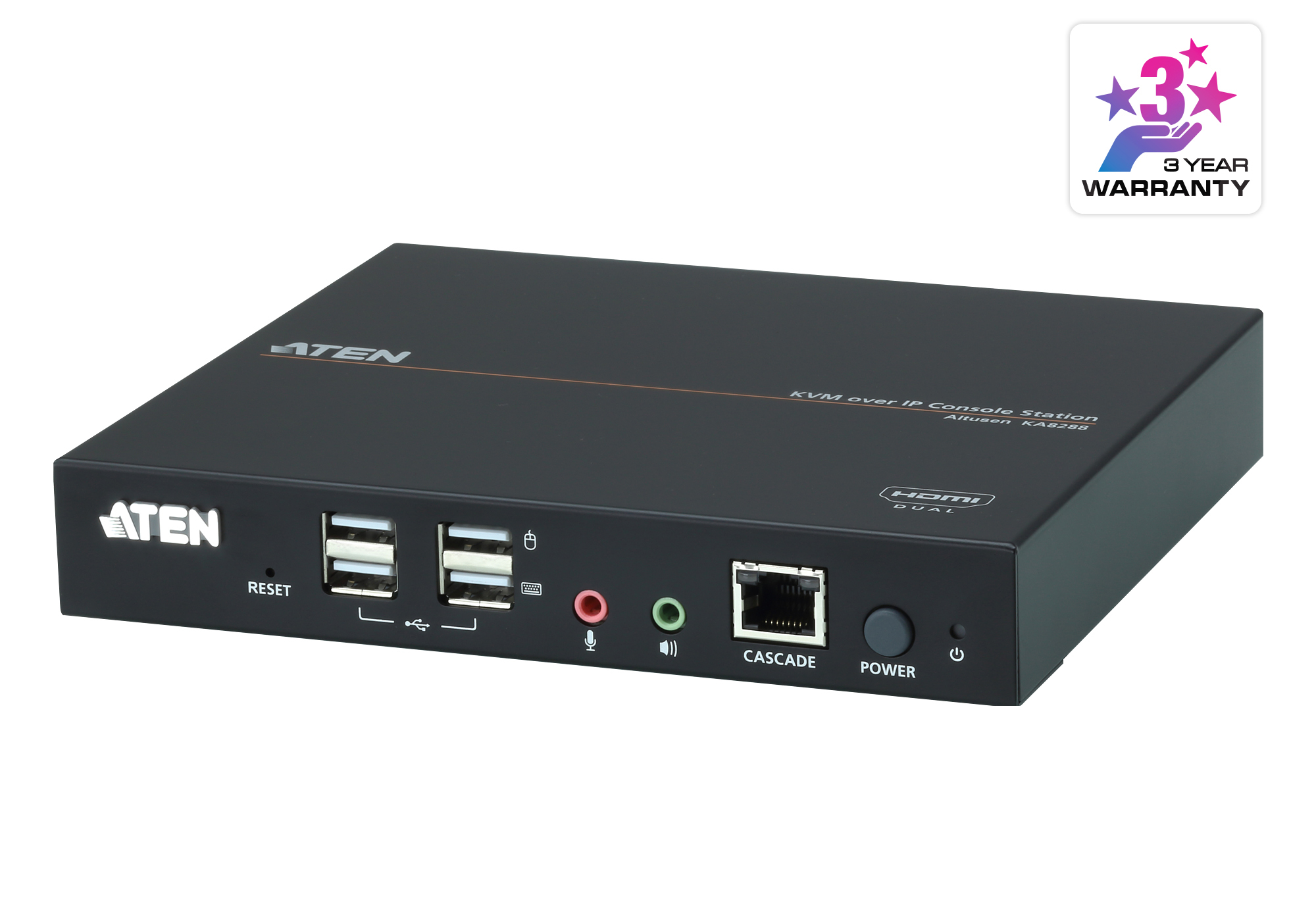

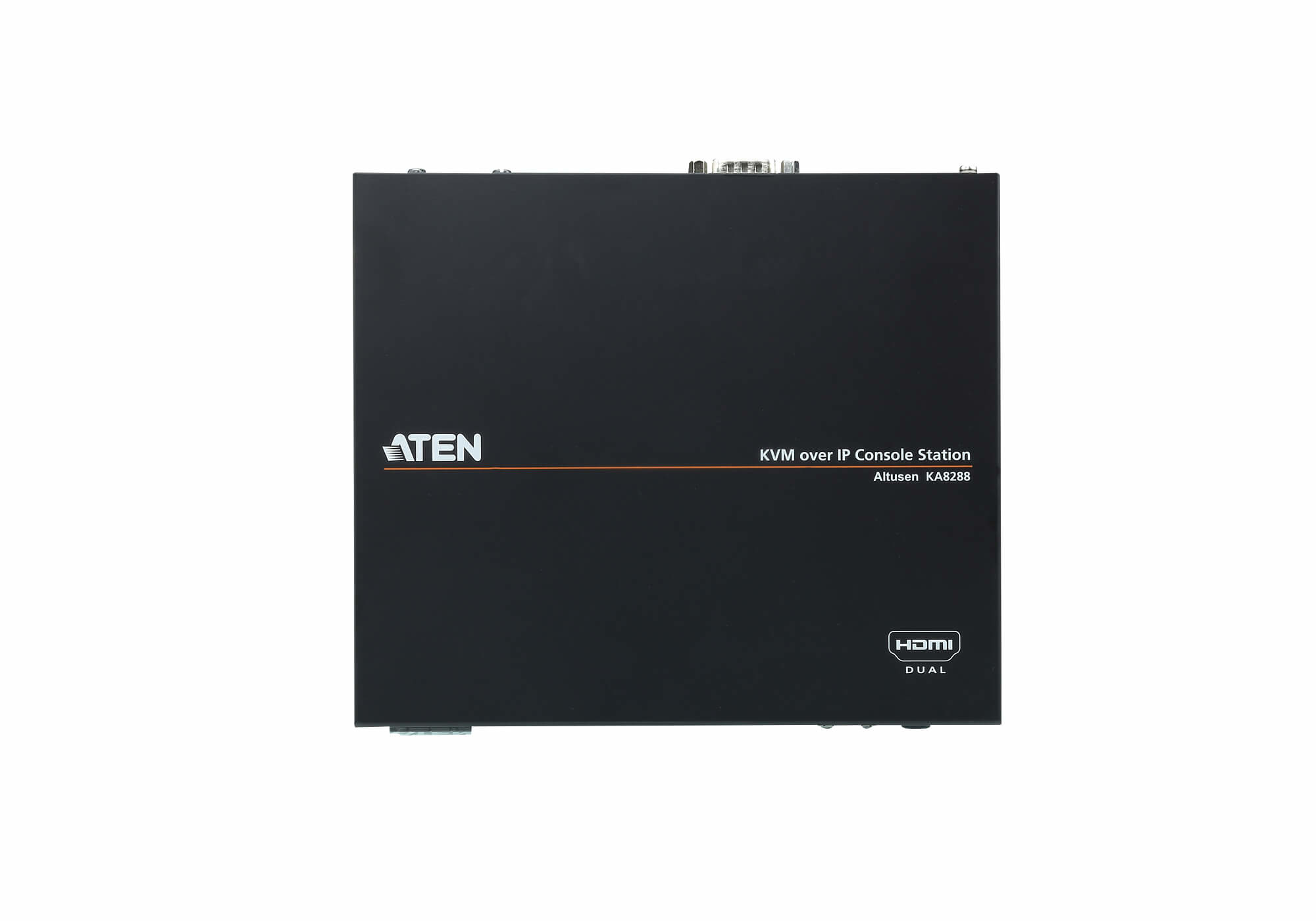

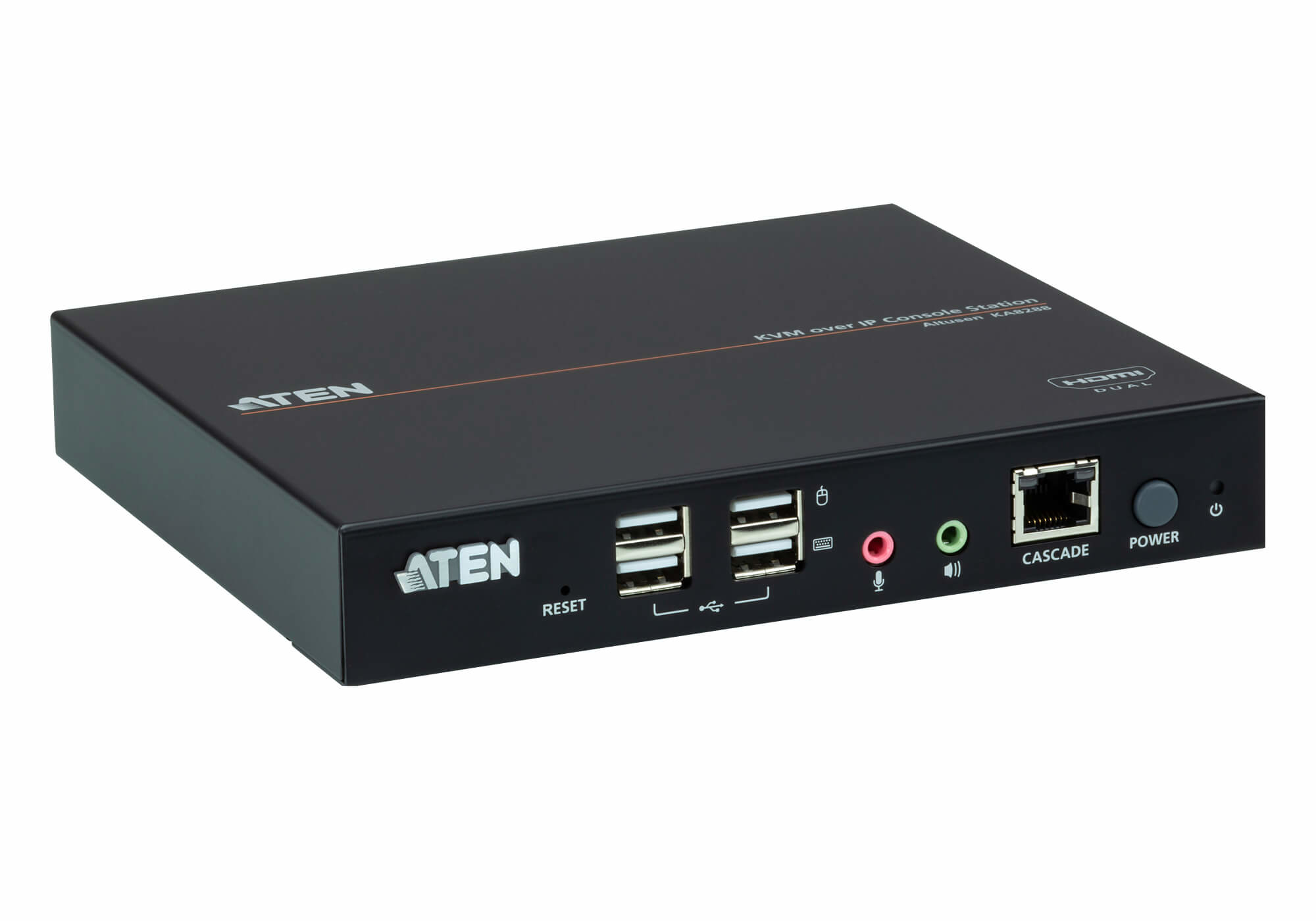

KA8288-AX-E KVM switch Rack mounting Black
Model KA8288-AX-E
40 specifications
- Weight1.29 kg
- ColourBlack
- Keyboard port typeUSB
- Ethernet LANYes
- HD typeFull HD+
- Built-in displayNo
Overview
- Weight
- 1.29 kg
- Colour
- Black
- Keyboard port type
- USB
- Ethernet LAN
- Yes
- HD type
- Full HD+
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KA8288-AX-E
- Part number
- KA8288-AX-E
- Also known as
- ATEN KA8288-AX-E KVM switch Rack mounting Black
Specifications
40 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| USB connector type | USB Type-A |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD+ |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.53 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155.4 mm |
| Depth | 174.2 mm |
| Height | 28.8 mm |
| Weight | 1.29 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 1.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
