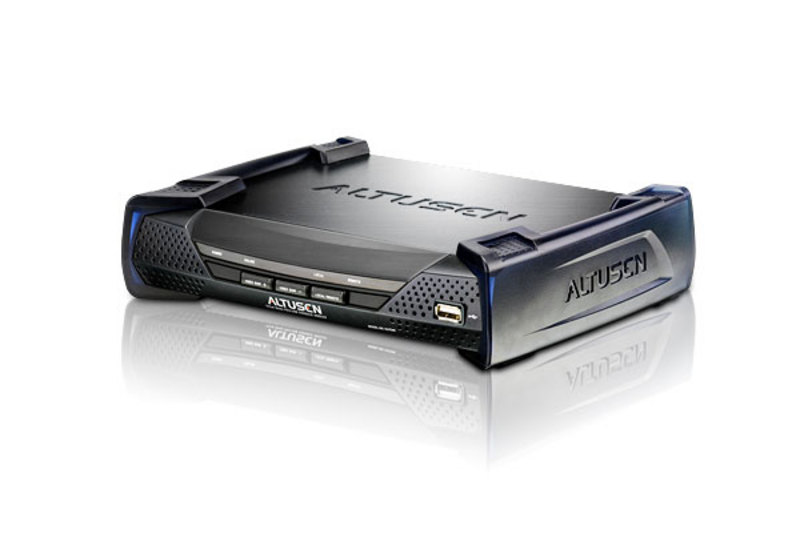

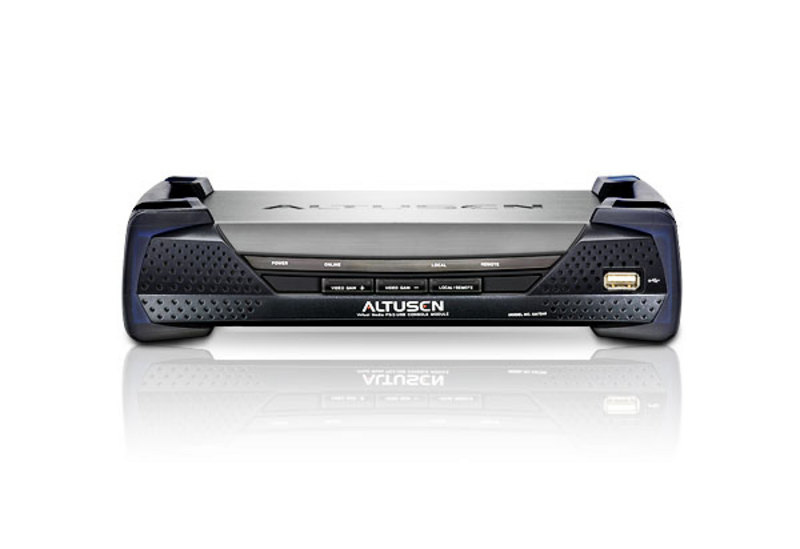

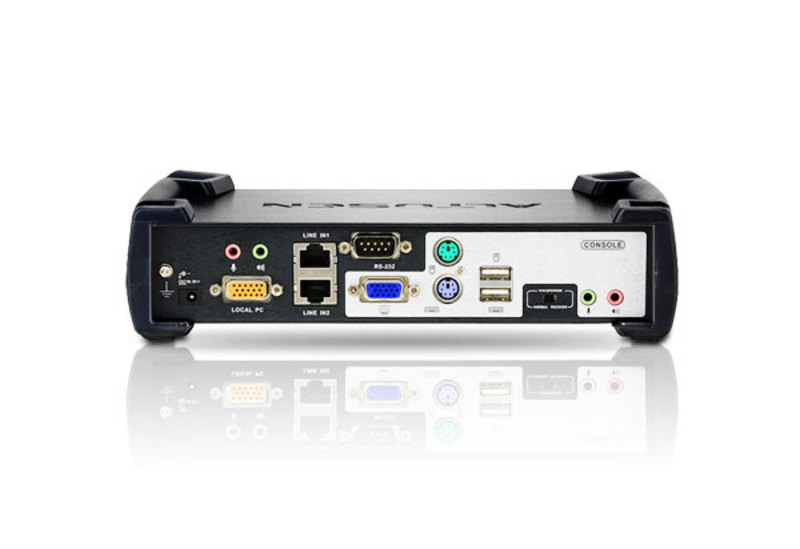

KA7240-AX-G KVM switch Black
Model KA7240-AX-GEAN 672792400261
44 specifications
- Weight1.26 kg
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeWUXGA
- Built-in displayNo
Overview
- Weight
- 1.26 kg
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KA7240-AX-G
- Part number
- KA7240-AX-G
- EAN / UPC
- 672792400261, 6727924002616
- Also known as
- ATEN KA7240-AX-G KVM switch Black
Specifications
44 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 2 |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,240 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 240 s |
| Maximum operating distance | 300 m |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 227.1 mm |
| Depth | 171.5 mm |
| Height | 54.8 mm |
| Weight | 1.26 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM, RS-232 |
| AC adapter included | Yes |
| Manual | Yes |
