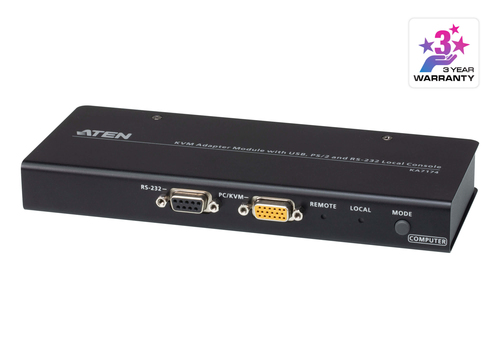

ATEN KVM Adapter Module with USB, PS/2, and RS-232 Local Console
ATEN

KVM Adapter Module with USB, PS/2, and RS-232 Local Console

Model KA7174Part no. KA7174-AX-GEAN 4710469341595

44 specifications
  • Weight490 g
  • ColourBlack
  • Keyboard port typeUSB, PS/2
  • Ethernet LANYes
  • HD typeWUXGA
  • Rack mountingNo
See all specifications

Overview

Weight
490 g
Colour
Black
Keyboard port type
USB, PS/2
Ethernet LAN
Yes
HD type
WUXGA
Rack mounting
No
Brand
ATEN
Category
KVM Switch
Model
KA7174
Part number
KA7174-AX-G
EAN / UPC
4710469341595
Also known as
ATEN KVM Adapter Module with USB, PS/2, and RS-232 Local Console

Specifications

44 specifications in 12 groups

Ports & interfaces

Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Console portsSPHD
Serial port typeDE-9 (DB-9)
Serial ports quantity2
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz

Design

Rack mountingNo
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes

Display

Built-in displayNo

Power

Input voltage5 V
Power consumption (typical)1.75 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width86.4 mm
Depth203 mm
Height25 mm
Weight490 g

Packaging data

Package width62 mm
Package depth283 mm
Package height173 mm
Package volume3114.85 cm³
Package weight1.02 kg
Package typeBox

Packaging content

Packaging content1x KA7174 KVM Adapter Module with USB, PS/2, and RS-232 Local Console 1x power adapter 1x KVM cable (VGA, USB, PS/2) 1x console cable (VGA, USB, PS/2) 1x foot pad set (4pcs) 1x user instructions

Other features

CompatibilityKN2116VA,KN2132VA,KN4116VA,KN4132VA,KN4164V,2L-5301UP,KN8132V,2L-5302UP,KN8164V,2L-5303UP,KN2124VA,KN2140VA,KN4124VA,KN4140VA,VE-RMK1U,KN1132V,2XRT-0015G,KA7171AK

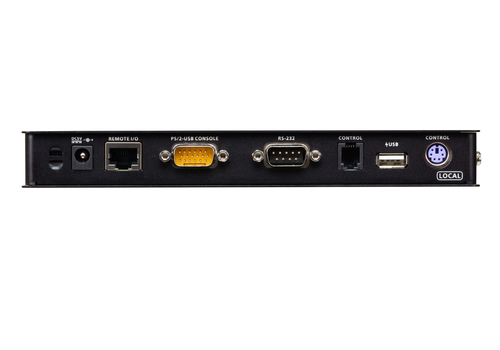

I/O ports1 x SPHD, 1 x 6-pin Mini-DIN, 1 x USB Type A

Logistics data

Harmonized System (HS) code85176200
Master (outer) case width300 mm
Master (outer) case length336 mm
Master (outer) case height194 mm
Master (outer) case gross weight5.61 kg
Master (outer) case volume19538.62 cm³
Products per master (outer) case5 pc(s)
Country of originTaiwan
