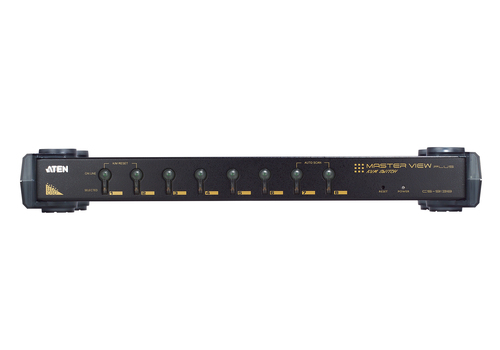

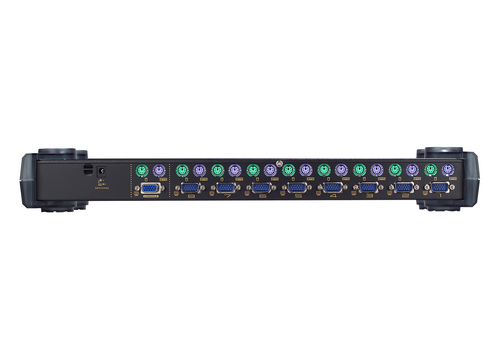

ATEN CS9138 KVM switch Rack mounting Black
Model CS9138Part no. DCP2920EAN 6727920003624
25 specifications
- Weight2.85 kg
- ColourBlack
- Number of computers controlled8
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 2.85 kg
- Colour
- Black
- Number of computers controlled
- 8
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS9138
- Part numbers
- DCP2920, CS9138
- EAN / UPC
- 6727920003624, 672792000362, 4014619611768, 4016032118237 +4 more
- Also known as
- ATEN CS9138 KVM switch Rack mounting Black
Specifications
25 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| PS/2 ports quantity | 18 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 3 s |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.08 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 450 mm |
| Depth | 170 mm |
| Height | 67 mm |
| Weight | 2.85 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000, XP, Vista; Linux; FreeBSD |
