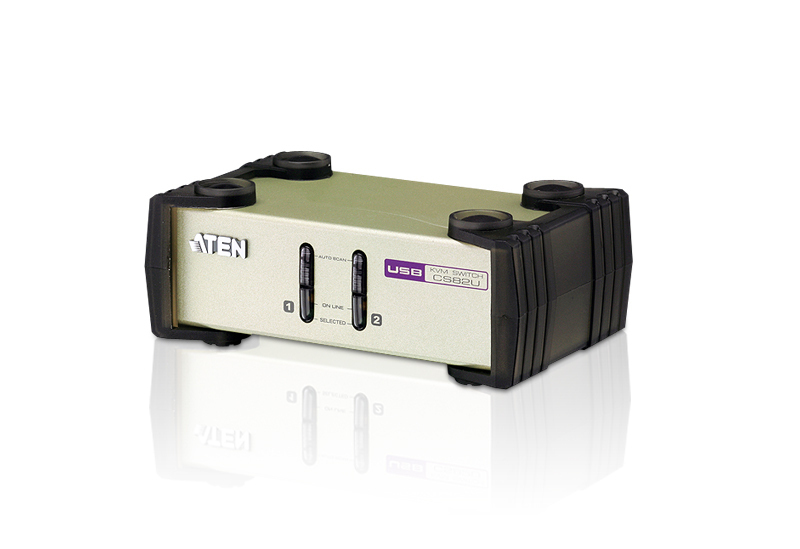

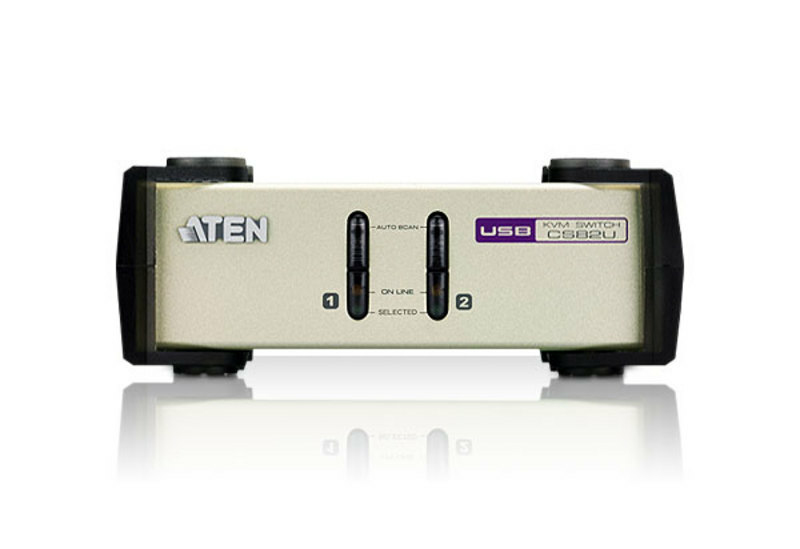

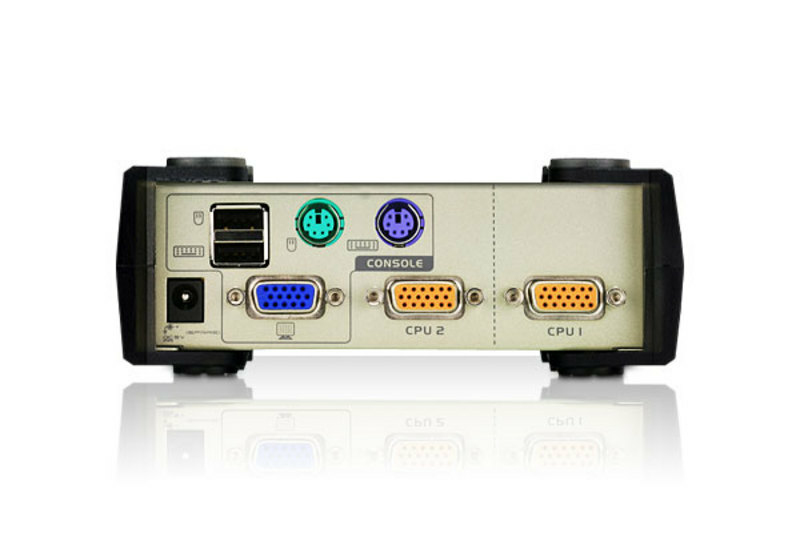

2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
Model CS82U-ATEAN 1320010366842
44 specifications
- Weight869 g
- ColourLight grey
- Number of computers controlled2
- HD typeQXGA
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 869 g
- Colour
- Light grey
- Number of computers controlled
- 2
- HD type
- QXGA
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS82U-AT
- Part number
- CS82U-AT
- EAN / UPC
- 1320010366842, 115971584234, 132017649009, 132018255773 +10 more
- Also known as
- ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
Specifications
44 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | USB A, VGA (D-Sub) |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| DDC2B support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Light grey |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 140 mm |
| Height | 55.5 mm |
| Weight | 869 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 175 mm |
| Package weight | 981 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 8.69 kg |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case height | 196 mm |
| Master (outer) case gross weight | 10.4 kg |
| Products per master (outer) case | 10 pc(s) |
