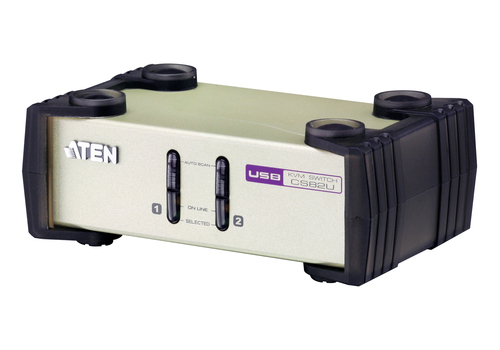

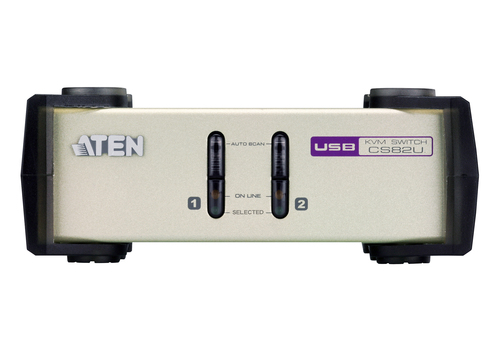

CS82U KVM switch Black, Light grey
Model CS82U
37 specifications
- Weight540 g
- ColourBlack, Light grey
- Number of computers controlled2
- HD typeQXGA
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 540 g
- Colour
- Black, Light grey
- Number of computers controlled
- 2
- HD type
- QXGA
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS82U
- Part number
- CS82U
- Also known as
- ATEN CS82U KVM switch Black, Light grey
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| DDC2B support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black, Light grey |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 140 mm |
| Height | 55.5 mm |
| Weight | 540 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| I/O ports | 2x SPHD-18 |
