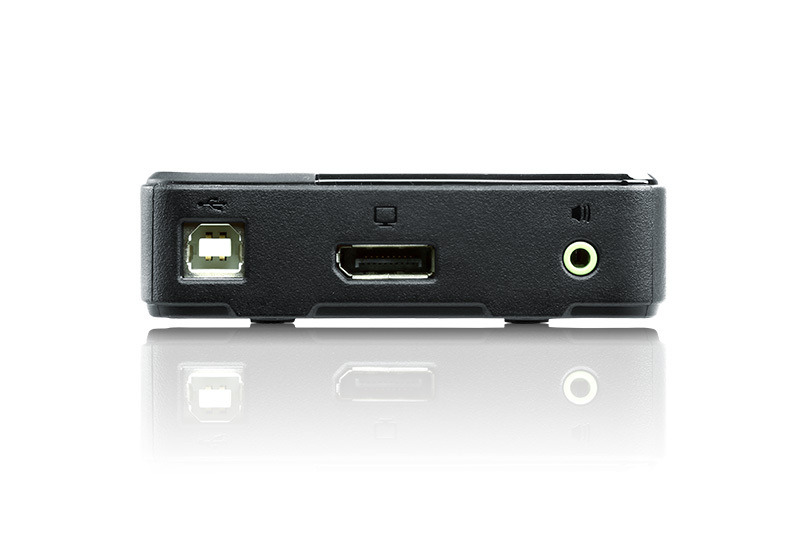

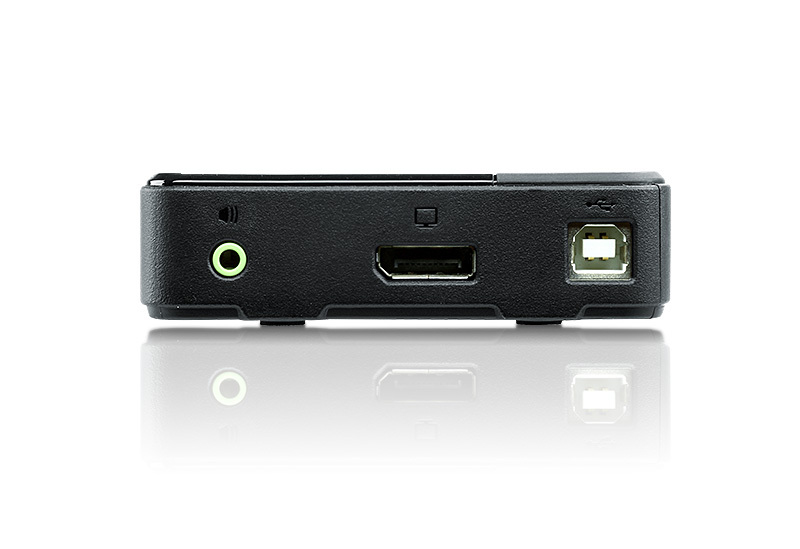

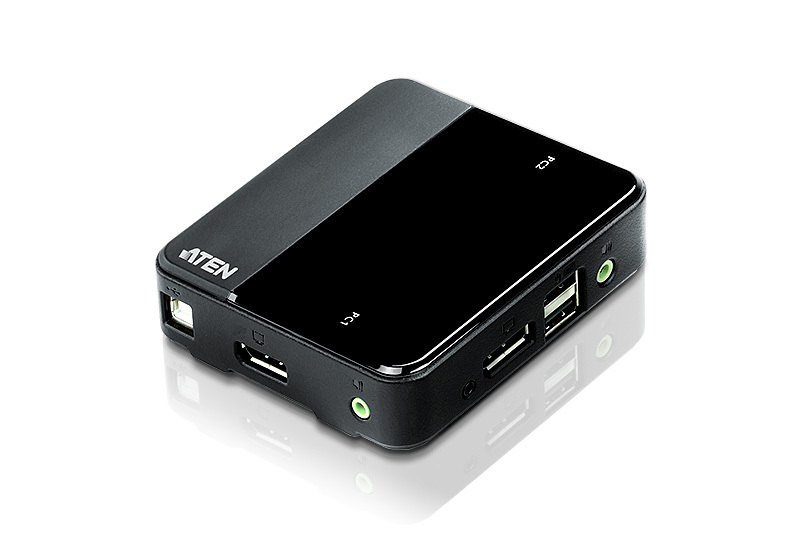

2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
Model CS782DP-ATEAN 672792006722
45 specifications
- Weight543 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 543 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS782DP-AT
- Part number
- CS782DP-AT
- EAN / UPC
- 672792006722, 4719264643644, 5055309625565
- Also known as
- ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
Specifications
45 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 2.18 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 93.7 mm |
| Height | 26.8 mm |
| Weight | 543 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 175 mm |
| Package weight | 687 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 5.43 kg |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case height | 196 mm |
| Master (outer) case gross weight | 7.71 kg |
| Products per master (outer) case | 10 pc(s) |
