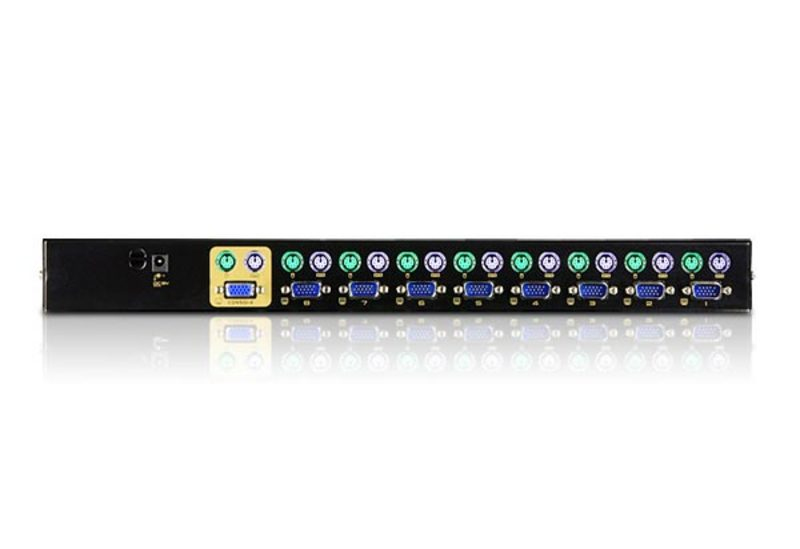

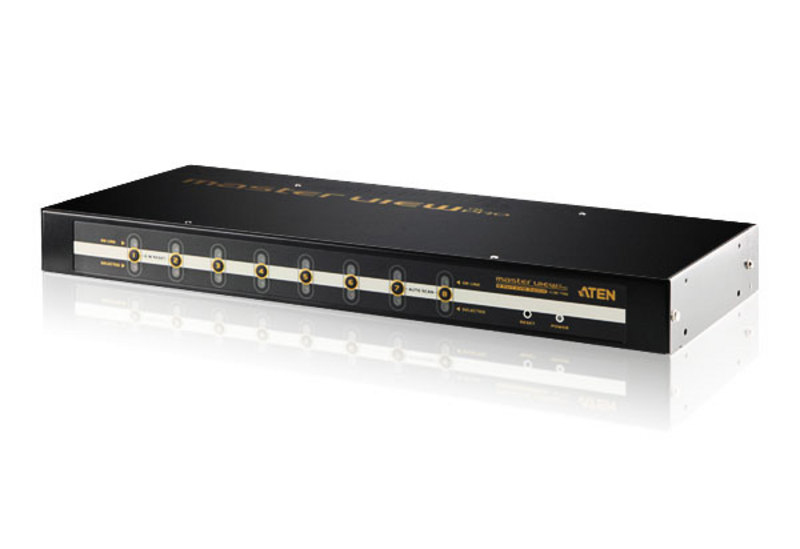

CS78-AT-G KVM switch Rack mounting Black
Model CS78-AT-GEAN 672792100697
29 specifications
- Weight2.85 kg
- ColourBlack
- Number of computers controlled8
- Ethernet LANNo
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
Overview
- Weight
- 2.85 kg
- Colour
- Black
- Number of computers controlled
- 8
- Ethernet LAN
- No
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS78-AT-G
- Part number
- CS78-AT-G
- EAN / UPC
- 672792100697
- Also known as
- ATEN CS78-AT-G KVM switch Rack mounting Black
Specifications
29 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| PS/2 ports quantity | 10 |
| Audio connections | No |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 1.98 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 150 mm |
| Height | 44.5 mm |
| Weight | 2.85 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
