CS74U KVM switch Grey
Model CS74U
31 specifications
- Weight640 g
- ColourGrey
- Number of computers controlled4
- HD typeQXGA
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 640 g
- Colour
- Grey
- Number of computers controlled
- 4
- HD type
- QXGA
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS74U
- Part number
- CS74U
- Also known as
- ATEN CS74U KVM switch Grey
Specifications
31 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 4 |
| Console USB ports quantity | 2 |

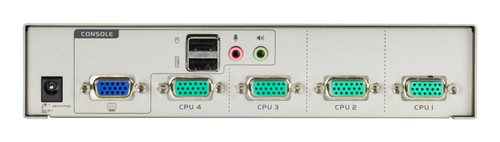

| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| DDC2B support | Yes |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Metal |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.177 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76.5 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 640 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
