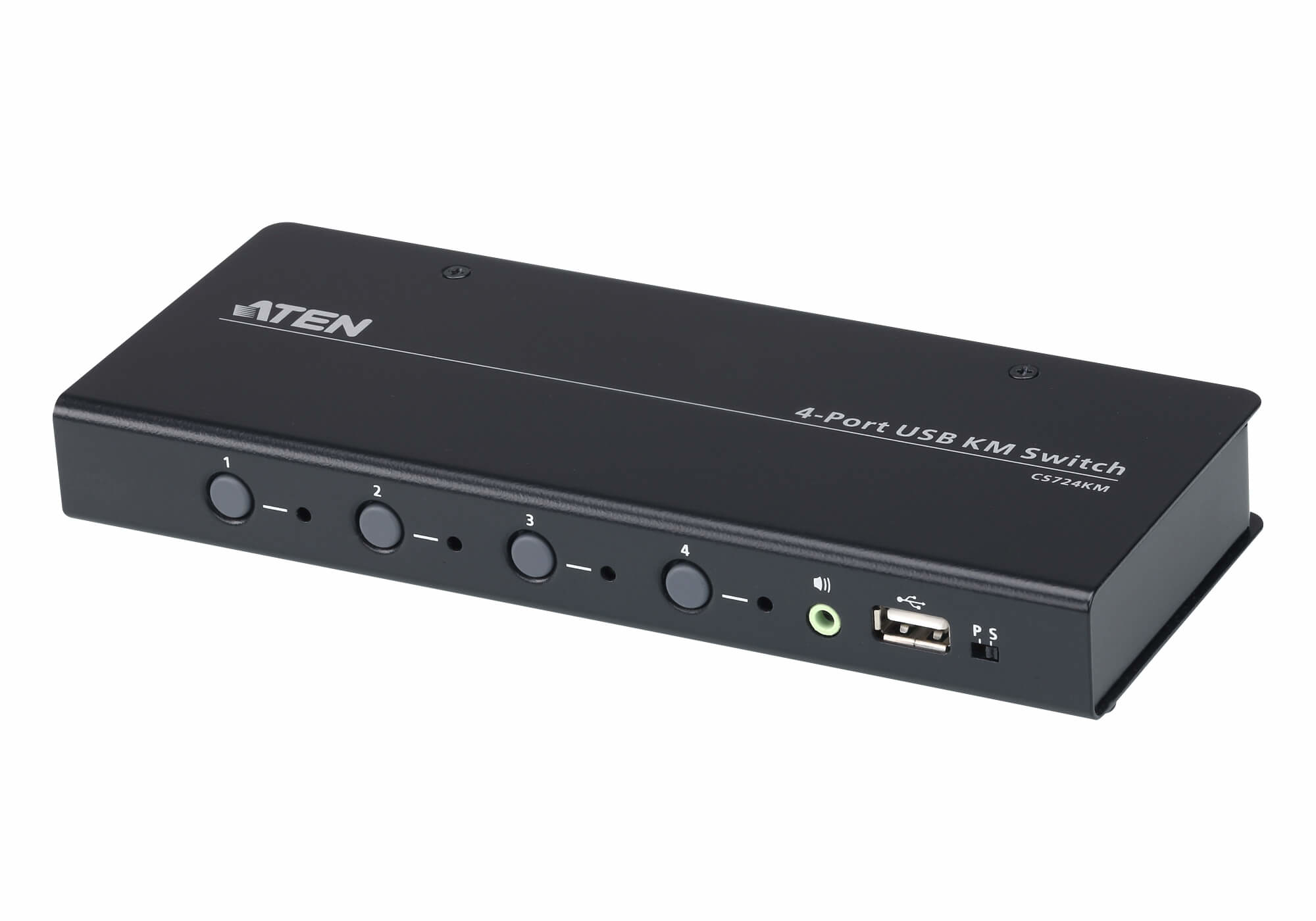

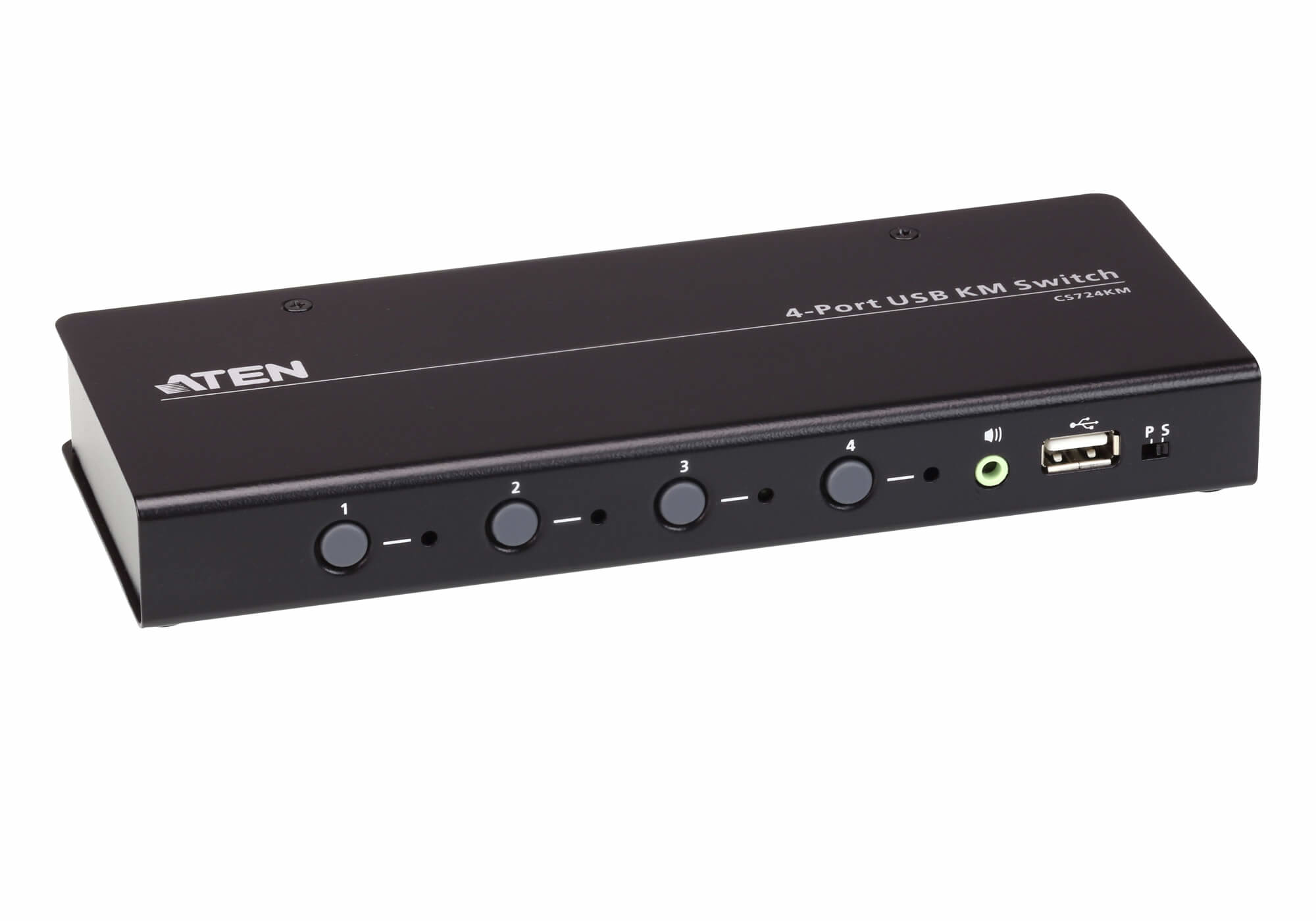

CS724KM KVM switch Black
Model CS724KM
32 specifications
- Weight500 g
- ColourBlack
- Number of computers controlled4
- Daisy chainYes
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 500 g
- Colour
- Black
- Number of computers controlled
- 4
- Daisy chain
- Yes
- Built-in display
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS724KM
- Part number
- CS724KM
- Also known as
- ATEN CS724KM KVM switch Black
Specifications
32 specifications in 8 groups

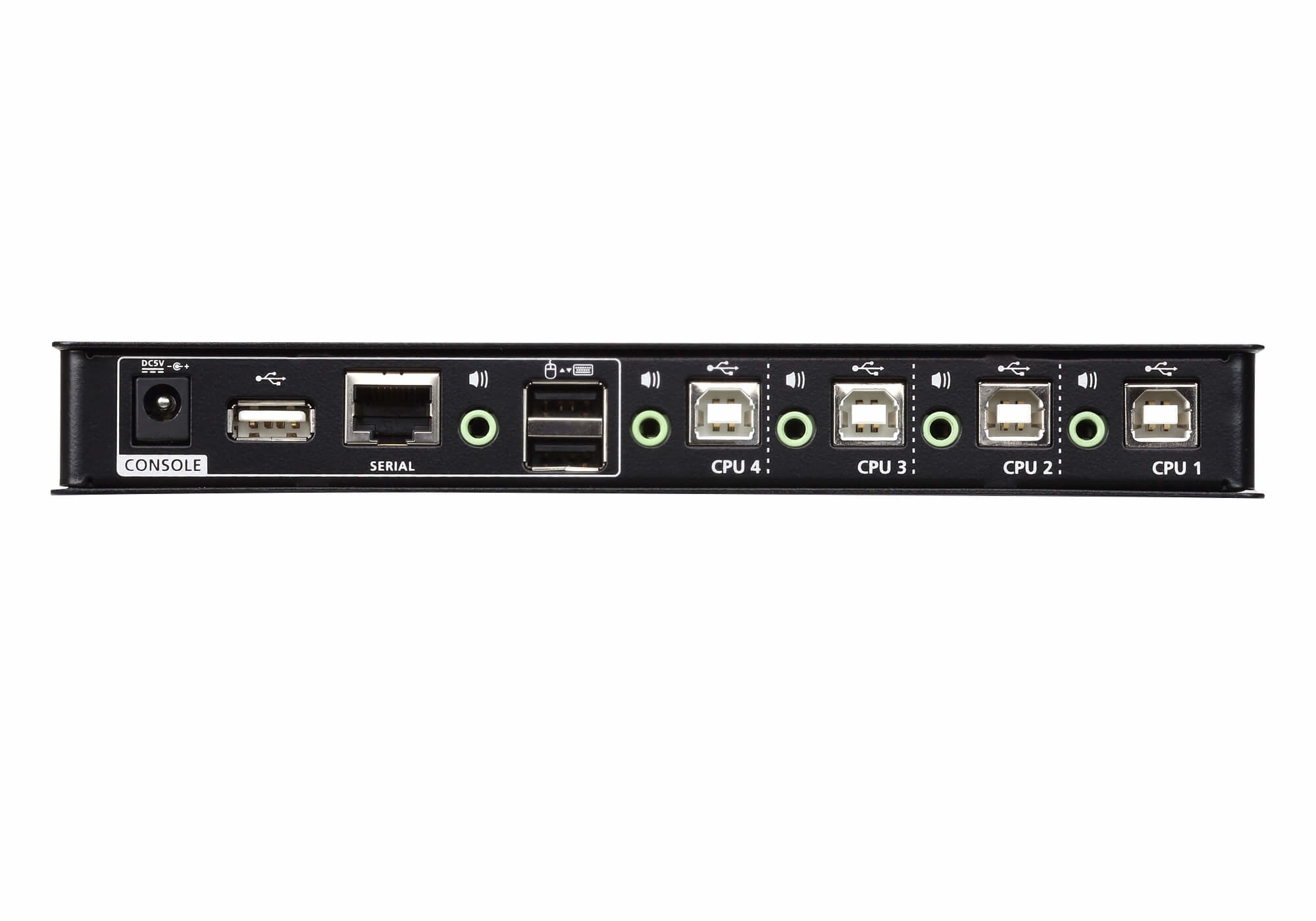

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, RJ–45, USB A |
| Console RJ-45 ports quantity | 1 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 5 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Daisy chain | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.69 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 80.6 mm |
| Height | 25 mm |
| Weight | 500 g |

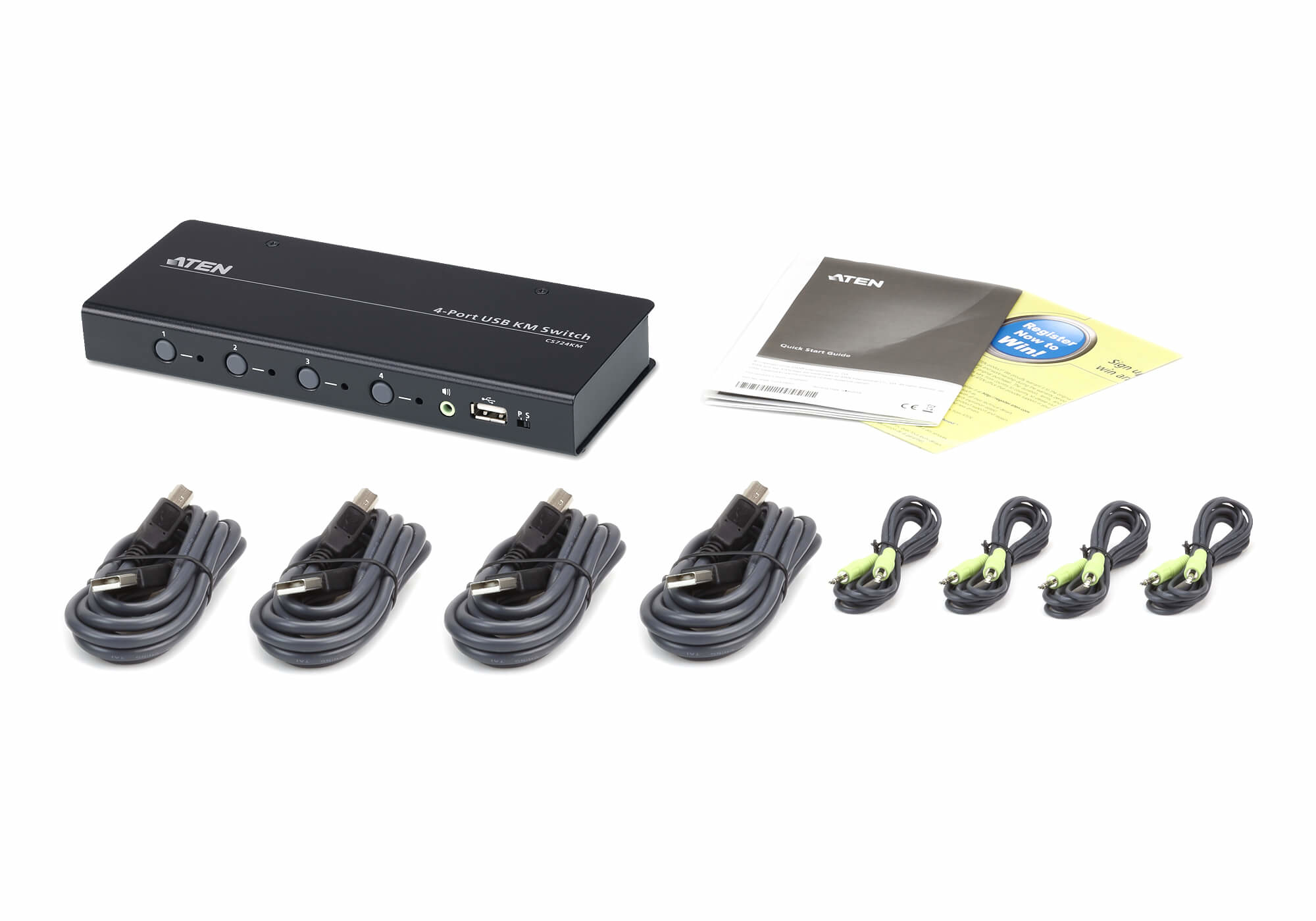

Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), USB |
| Manual | Yes |
