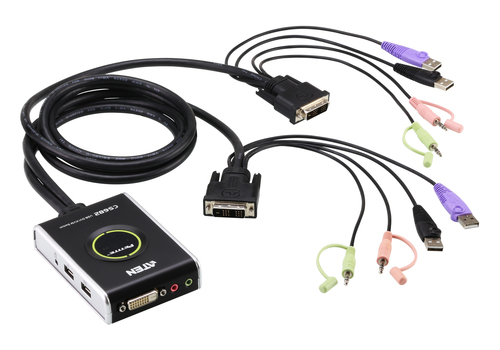

2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
Model CS682EAN 982495919404
40 specifications
- Weight490 g
- ColourBlack
- Number of computers controlled2
- HD typeWUXGA
- Built-in displayNo
- Input voltage5 V
Overview
- Weight
- 490 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- WUXGA
- Built-in display
- No
- Input voltage
- 5 V
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS682
- Part number
- CS682
- EAN / UPC
- 982495919404, 4344180107576
- Also known as
- ATEN 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
Specifications
40 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 3 |

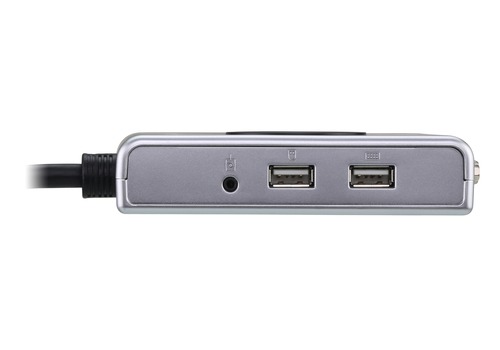

| Console USB ports quantity | 2 |

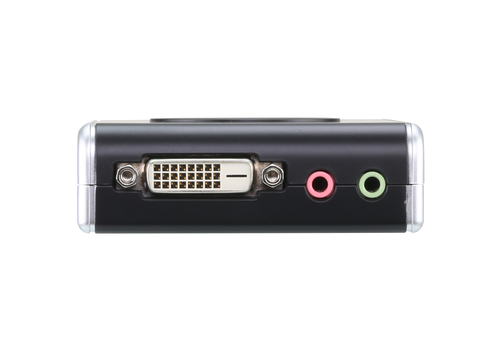

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-D, USB A |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Wired remote switch | Yes |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 3.23 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 111.5 mm |
| Height | 24 mm |
| Weight | 490 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
