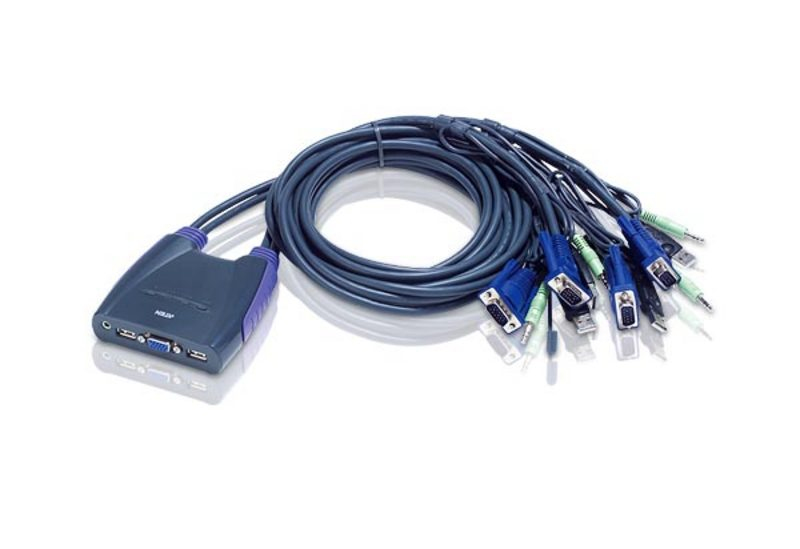

4-Port USB VGA KVM Switch with Audio
Model CS64US-ATEAN 6727920019946
42 specifications
- Weight580 g
- ColourBlue
- Number of computers controlled4
- HD typeQXGA
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 580 g
- Colour
- Blue
- Number of computers controlled
- 4
- HD type
- QXGA
- Built-in display
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS64US-AT
- Part number
- CS64US-AT
- EAN / UPC
- 6727920019946, 102930758928, 132017782300, 172302707120 +6 more
- Also known as
- ATEN 4-Port USB VGA KVM Switch with Audio
Specifications
42 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, USB A, VGA (D-Sub) |
| USB 2.0 Type-A hub ports quantity | 4 |
| Audio connections | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,5,99 s |
| DDC2B support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
| Housing material | Plastic |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.1 mm |
| Depth | 97.2 mm |
| Height | 26 mm |
| Weight | 580 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 95 mm |
| Package depth | 265 mm |
| Package height | 220 mm |
| Package weight | 765 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 2.9 kg |
| Master (outer) case width | 232 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case gross weight | 4.24 kg |
| Products per master (outer) case | 5 pc(s) |
