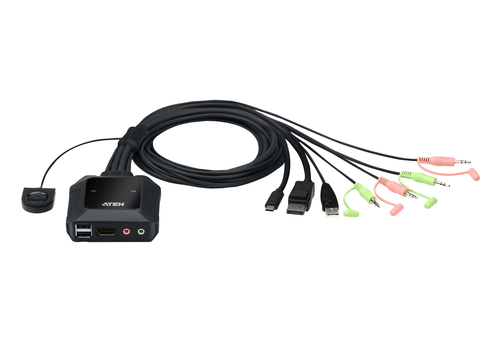

2-Port USB-C DisplayPort Hybrid Cable KVM Switch
Model CS52DPPart no. CS52DP-ATEAN 672792013126
47 specifications
- Weight303 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceUSB
Overview
- Weight
- 303 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- USB
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS52DP
- Part numbers
- CS52DP-AT, CS52DP
- EAN / UPC
- 672792013126, 4710469341311
- Also known as
- ATEN 2-Port USB-C DisplayPort Hybrid Cable KVM Switch
Specifications
47 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| USB connector type | USB Type-A, USB Type-C |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Hot-Plug support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | USB |
| Power consumption (typical) | 0.74 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84.2 mm |
| Depth | 83.4 mm |
| Height | 30.4 mm |
| Weight | 303 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package volume | 1897.2287222 cm³ |
| Package weight | 407 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 6.06 kg |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 8.49 kg |
| Master (outer) case volume | 42107.1508942 cm³ |
| Country of origin | Taiwan |
