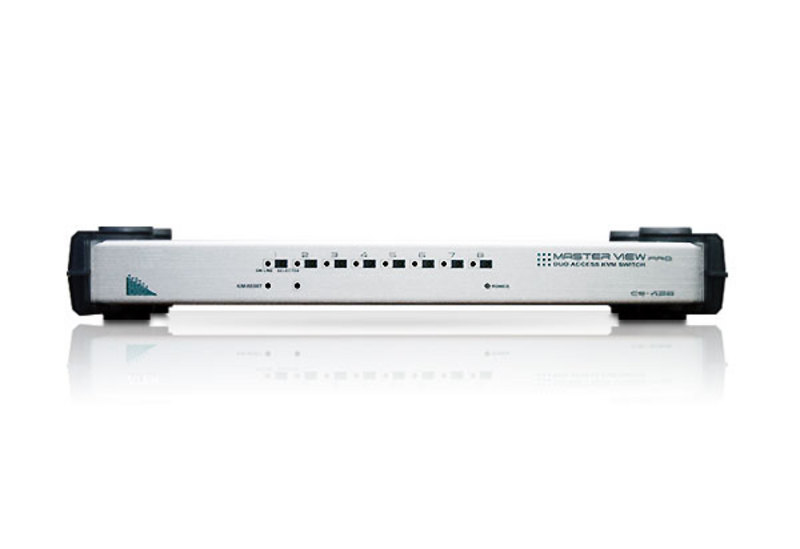

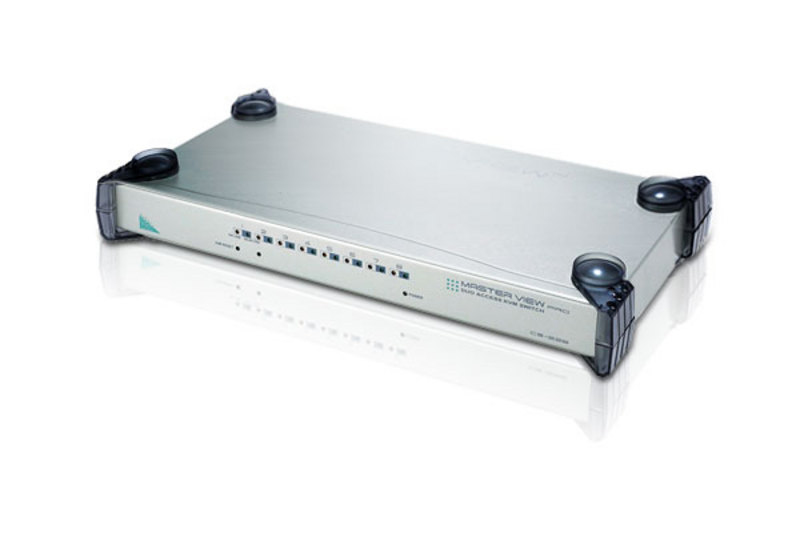

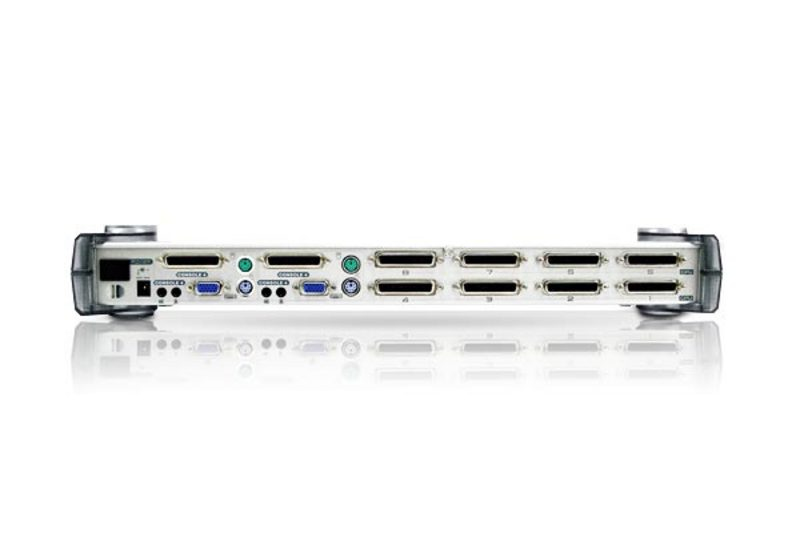

ATEN CS428 KVM switch Rack mounting Silver
Model CS428EAN 672792000096
31 specifications
- ConnectivityWired
- Weight4.2 kg
- ColourSilver
- Number of computers controlled8
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
Overview
- Connectivity
- Wired
- Weight
- 4.2 kg
- Colour
- Silver
- Number of computers controlled
- 8
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS428
- Part numbers
- CS428, DCP2916
- EAN / UPC
- 672792000096, 6727920000968, 7612320107005
- Also known as
- ATEN CS428 KVM switch Rack mounting Silver
Specifications
31 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 4 |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Silver |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 7.2 W |
| USB powered | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 275 mm |
| Depth | 450 mm |
| Height | 67 mm |
| Weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Power supply type | DC |
| Ports quantity | 8 |
