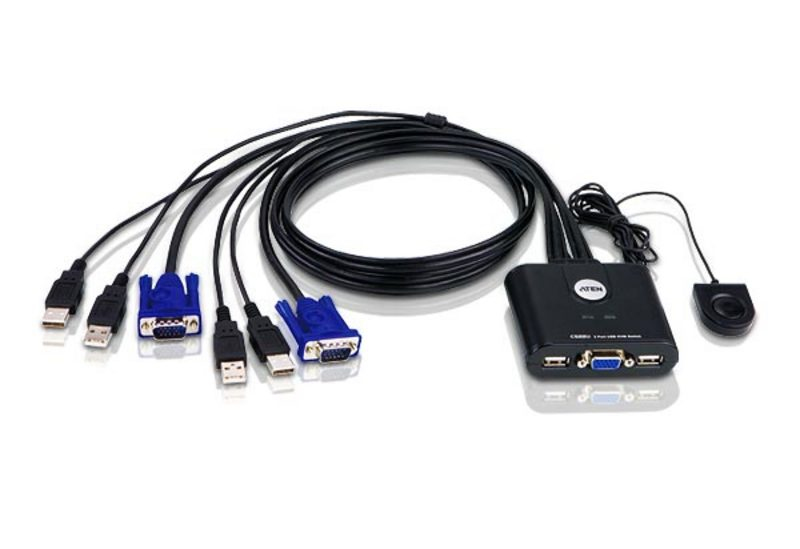

2-Port USB VGA KVM Switch
Model CS22U-ATEAN 4052921379488
40 specifications
- Weight302 g
- ColourBlack
- Number of computers controlled2
- HD typeQXGA
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 302 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- QXGA
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS22U-AT
- Part number
- CS22U-AT
- EAN / UPC
- 4052921379488, 132018257388, 163120794393, 172304249178 +13 more
- Also known as
- ATEN 2-Port USB VGA KVM Switch
Specifications
40 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 2 |
| Console ports | USB A, VGA (D-Sub) |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| DDC2B support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.14 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82.4 mm |
| Depth | 70.1 mm |
| Height | 24.6 mm |
| Weight | 302 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package weight | 400 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 6.04 kg |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 8.48 kg |
| Products per master (outer) case | 20 pc(s) |
