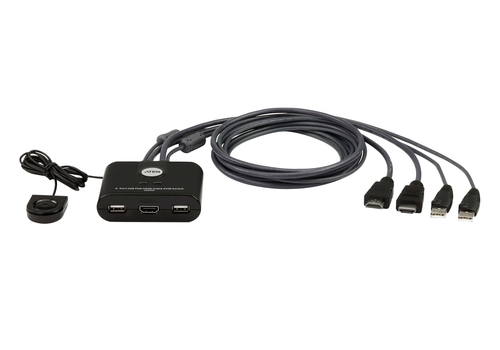

2-Port USB FHD HDMI Cable KVM Switch
Model CS22HFPart no. CS22HF-ATEAN 672792013119
47 specifications
- Weight260 g
- ColourBlack
- Number of computers controlled2
- HD typeFull HD
- Rack mountingNo
- Input voltage5 V
Overview
- Weight
- 260 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- Full HD
- Rack mounting
- No
- Input voltage
- 5 V
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS22HF
- Part numbers
- CS22HF-AT, CS22HF
- EAN / UPC
- 672792013119, 4710469341304
- Also known as
- ATEN 2-Port USB FHD HDMI Cable KVM Switch
Specifications
47 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 1 |
| Console ports | HDMI, USB A |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 1.518 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66.5 mm |
| Depth | 82.4 mm |
| Height | 25.2 mm |
| Weight | 260 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package volume | 1982.18 cm³ |
| Package weight | 360 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | 1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 7.9 kg |
| Master (outer) case volume | 42192.1 cm³ |
| Products per master (outer) case | 20 pc(s) |
| Country of origin | Taiwan |
