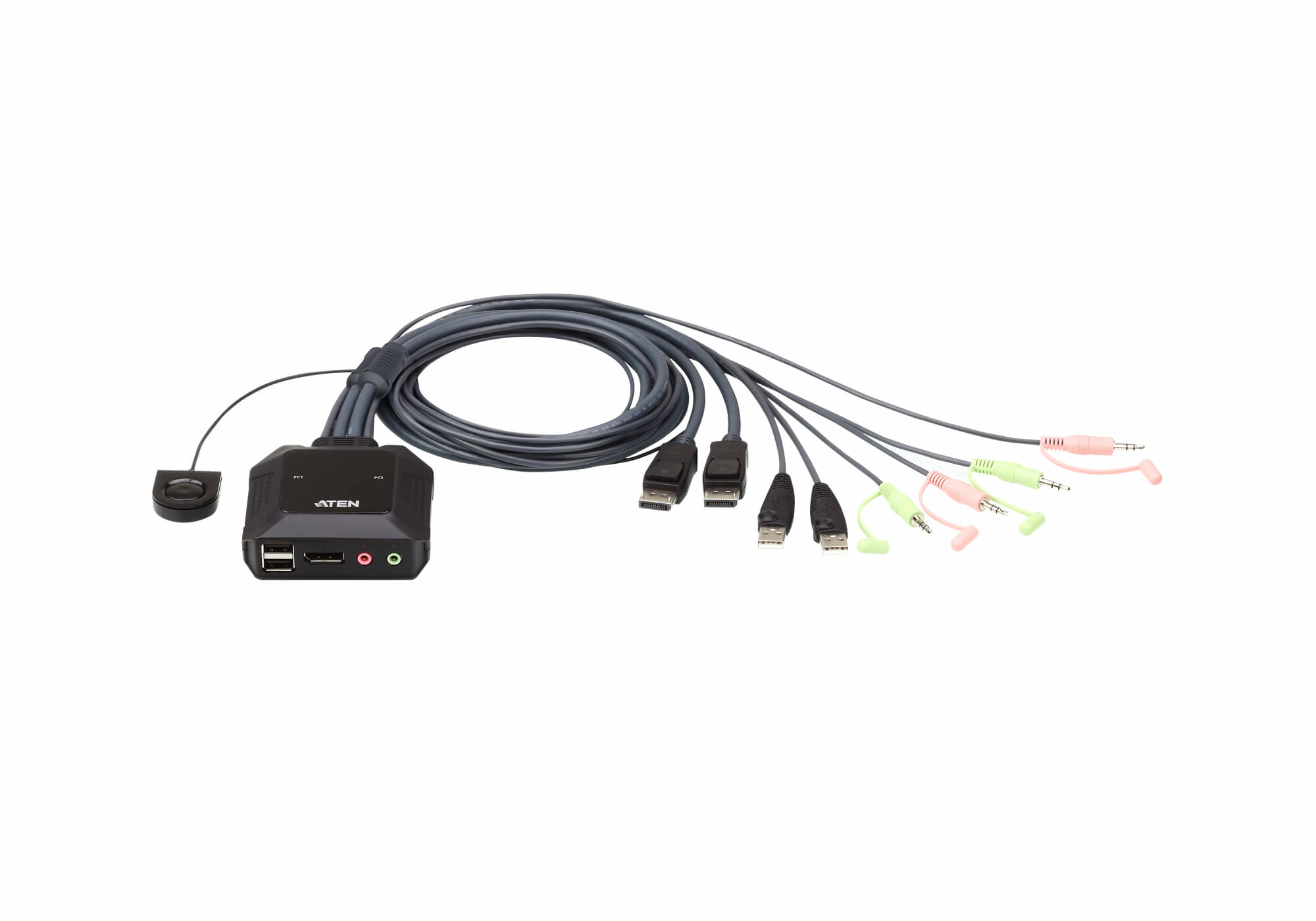

CS22DP KVM switch Black
Model CS22DP
43 specifications
- Weight350 g
- ColourBlack
- Number of computers controlled2
- Ethernet LANNo
- HD type4K Ultra HD
- Power sourceDC
Overview
- Weight
- 350 g
- Colour
- Black
- Number of computers controlled
- 2
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS22DP
- Part number
- CS22DP
- Also known as
- ATEN CS22DP KVM switch Black
Specifications
43 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.1 |
| Console USB ports quantity | 2 |

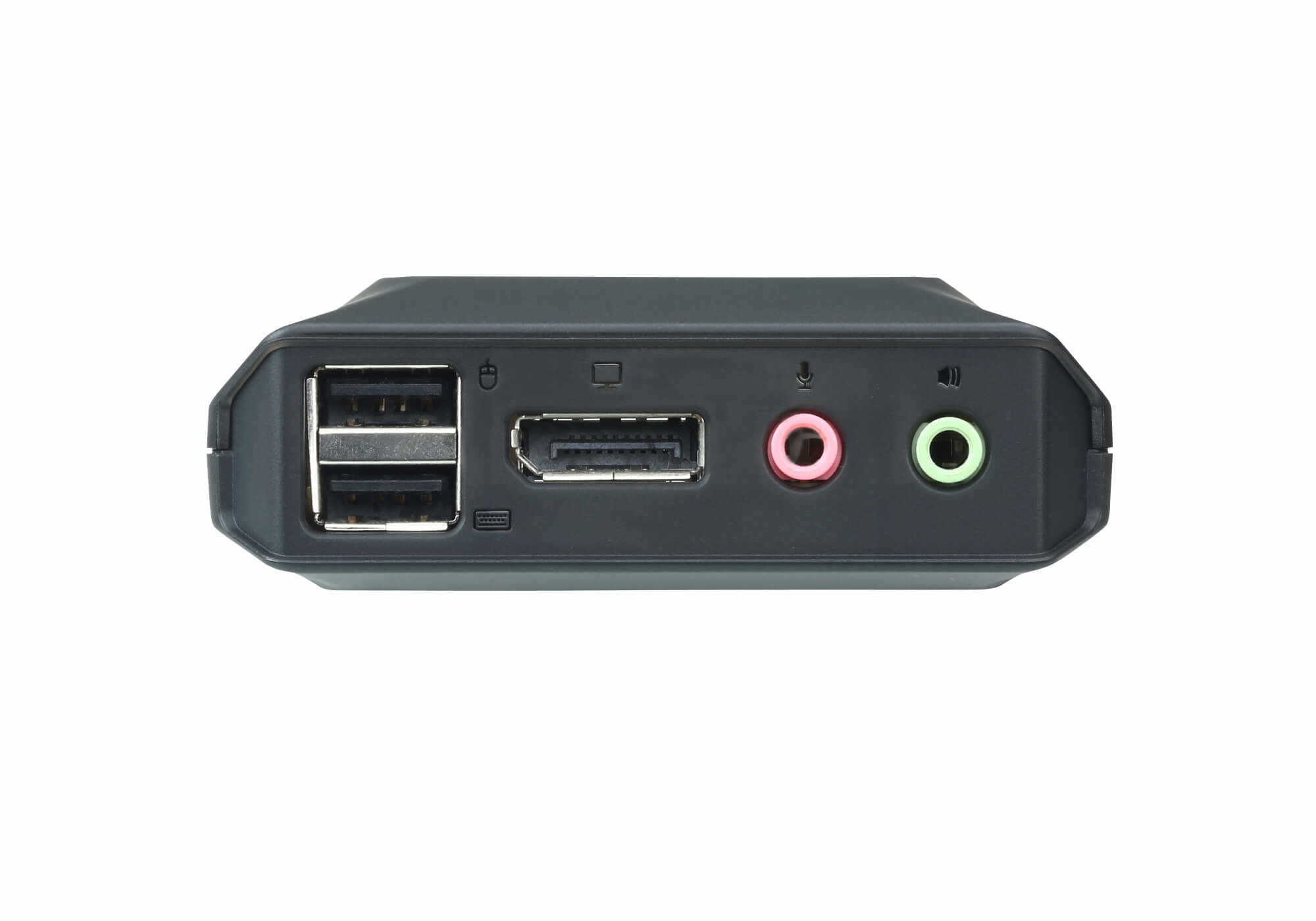

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console DisplayPorts ports quantity | 1 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | Micro-USB B, USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 30 Hz |
| HDCP | Yes |
| Hot-Plug support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| Wired remote switch | Yes |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.38 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84.2 mm |
| Depth | 83.4 mm |
| Height | 30.4 mm |
| Weight | 350 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
