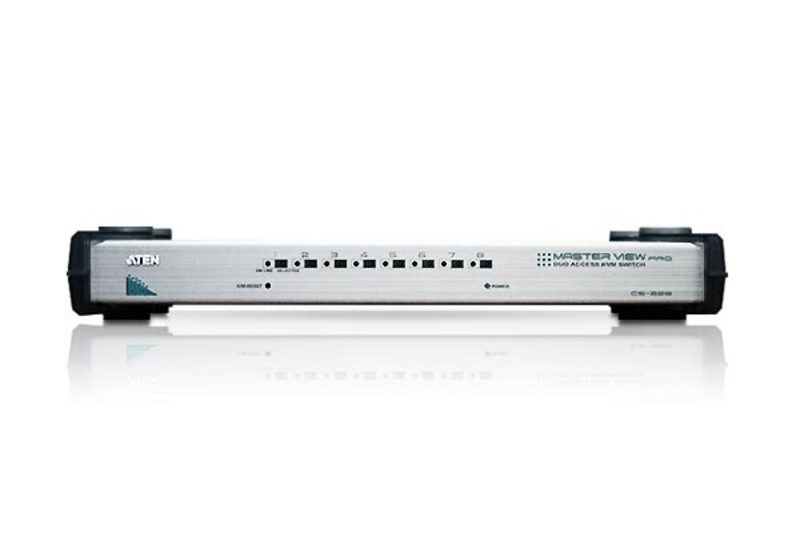

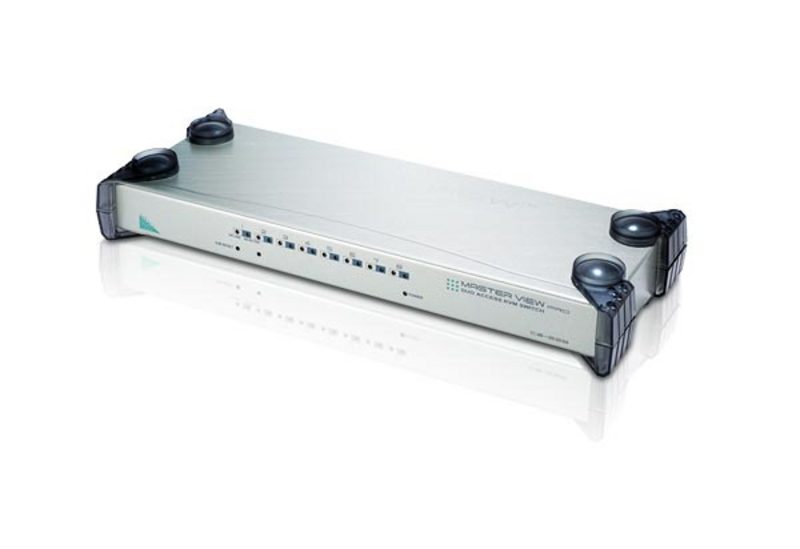

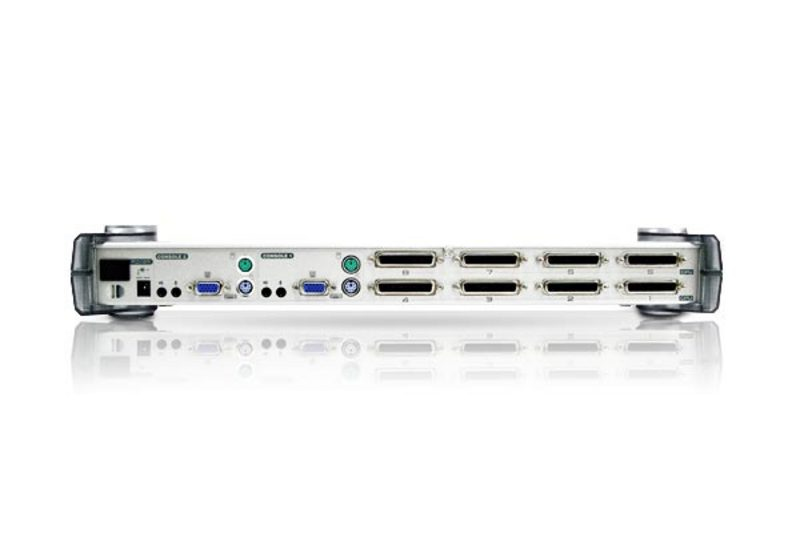

ATEN CS228 KVM switch Rack mounting Silver
Model CS228EAN 672792000157
36 specifications
- ConnectivityWired
- Weight2.7 kg
- ColourSilver
- Number of computers controlled8
- Ethernet LANNo
- Maximum resolution1920 x 1440 pixels
Overview
- Connectivity
- Wired
- Weight
- 2.7 kg
- Colour
- Silver
- Number of computers controlled
- 8
- Ethernet LAN
- No
- Maximum resolution
- 1920 x 1440 pixels
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS228
- Part numbers
- CS228, DCP2915
- EAN / UPC
- 672792000157, 6727920001576
- Also known as
- ATEN CS228 KVM switch Rack mounting Silver
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 0 |
| PS/2 ports quantity | 4 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 60 s |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Silver |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 450 mm |
| Depth | 170 mm |
| Height | 67 mm |
| Weight | 2.7 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Compatible operating systems | Windows 2000/XP/Vista, Linux, FreeBSD |
