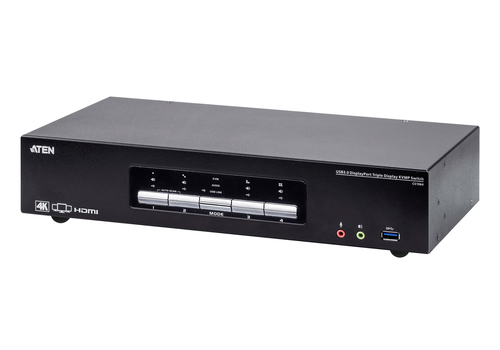

CS1964 KVM switch Black
Model CS1964EAN 672792009501
29 specifications
- Weight1.93 kg
- ColourBlack
- Number of computers controlled12
- Ethernet LAN (RJ-45) ports1
- Maximum resolution4096 x 2160 pixels
- Power sourceDC
Overview
- Weight
- 1.93 kg
- Colour
- Black
- Number of computers controlled
- 12
- Ethernet LAN (RJ-45) ports
- 1
- Maximum resolution
- 4096 x 2160 pixels
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1964
- Part number
- CS1964
- EAN / UPC
- 672792009501
- Also known as
- ATEN CS1964 KVM switch Black
Specifications
29 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 12 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 12 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 15.49 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156 mm |
| Depth | 335 mm |
| Height | 655 mm |
| Weight | 1.93 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
