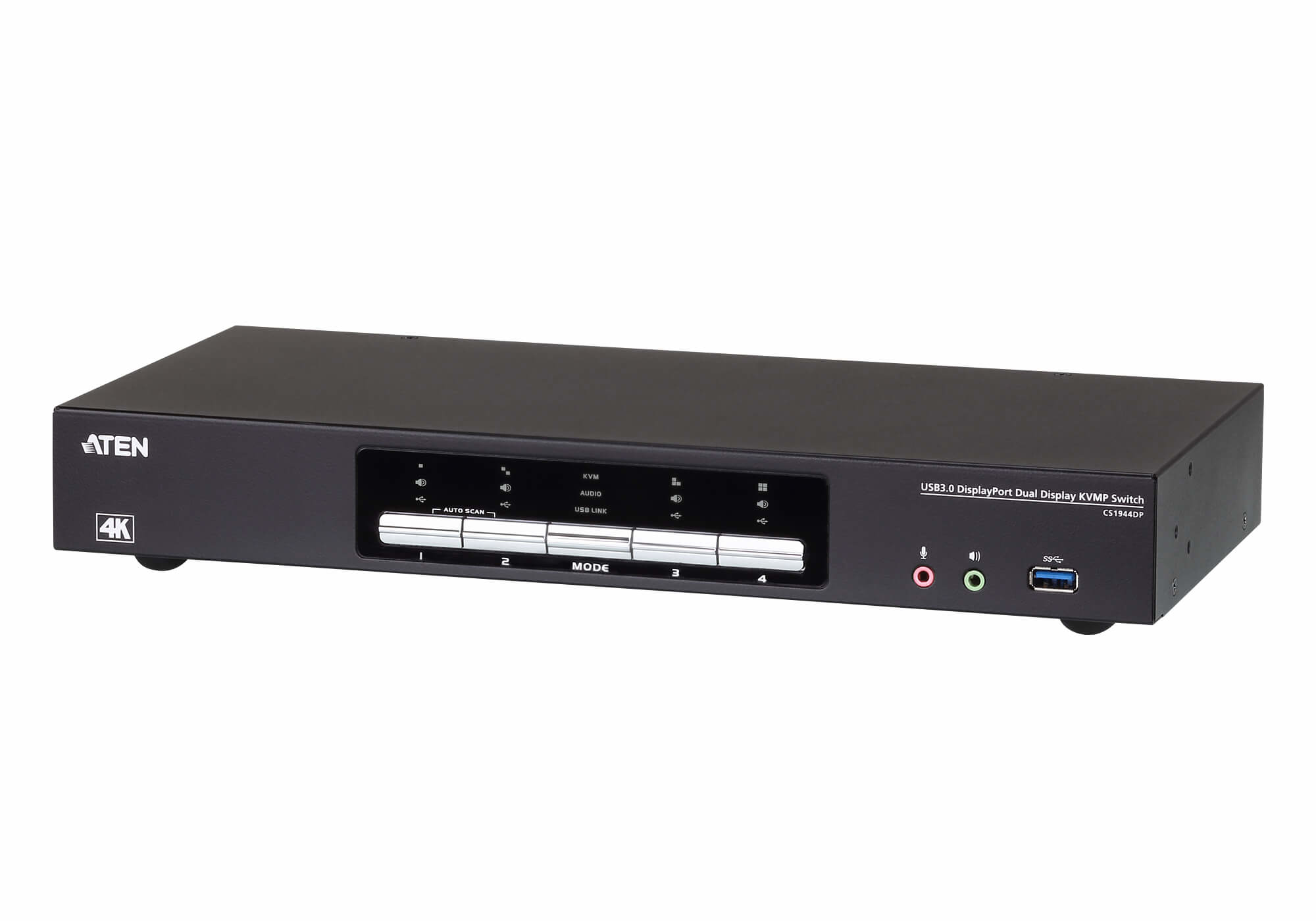

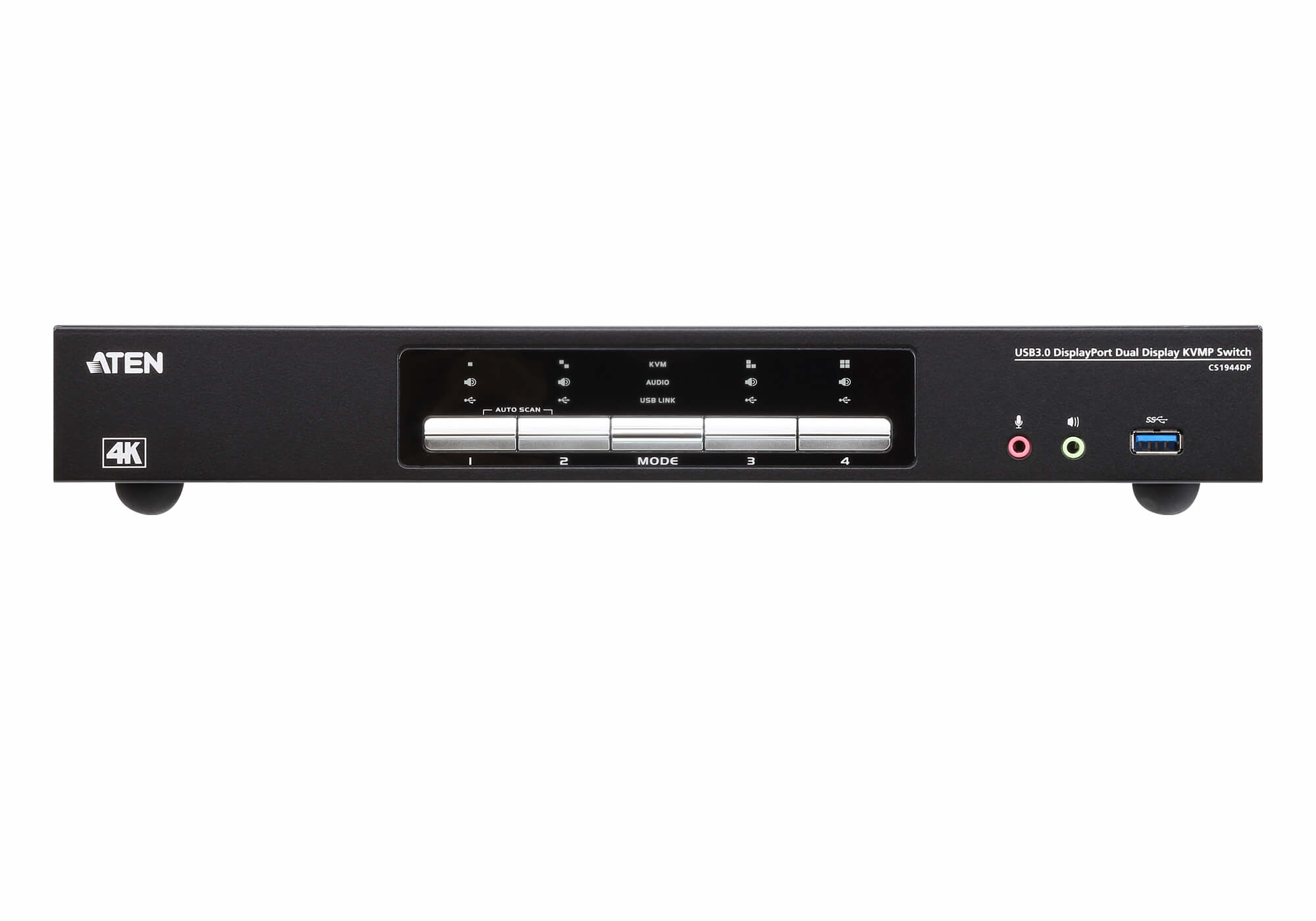

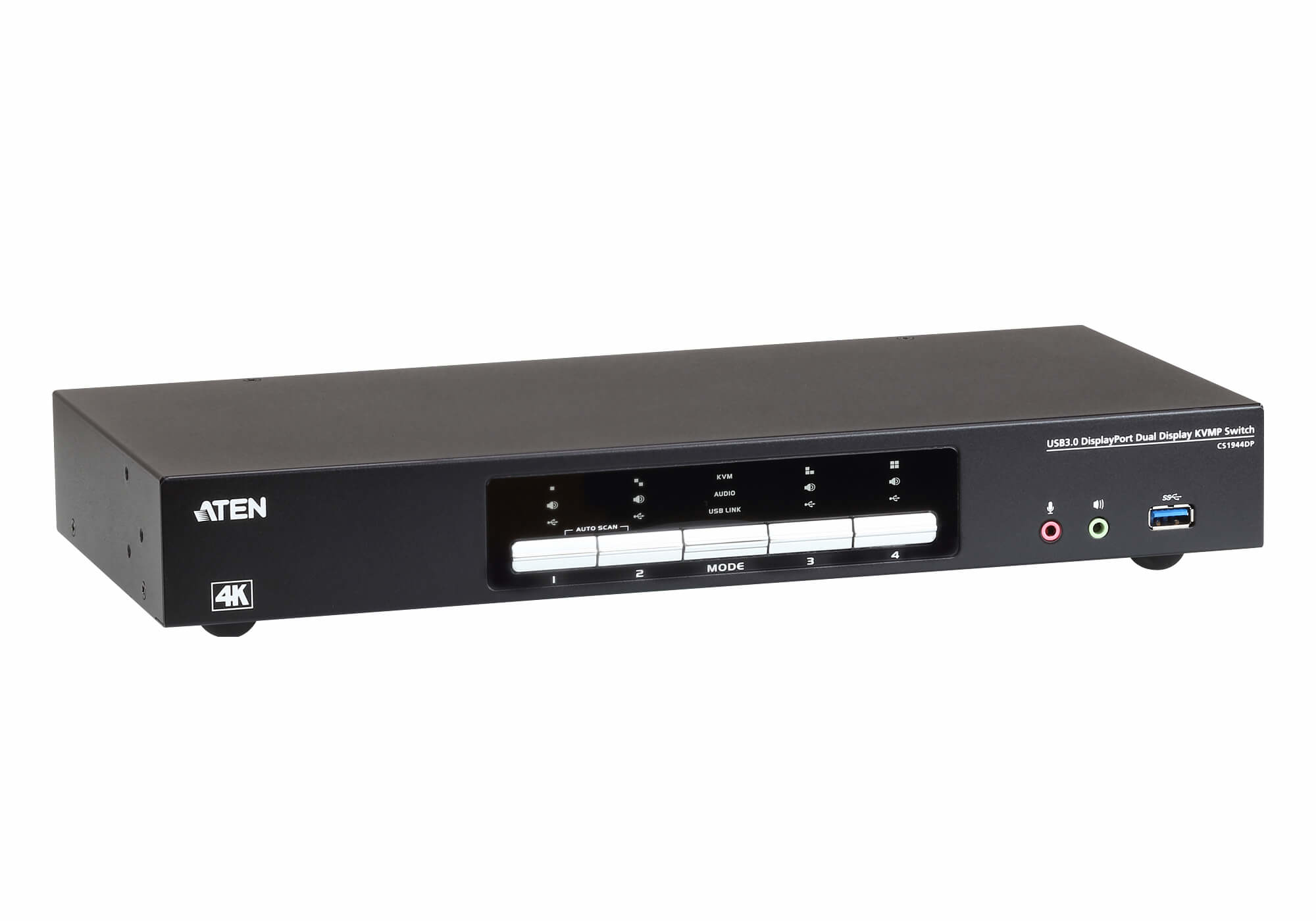

CS1944DP-AT-E KVM switch Black
Model CS1944DP-AT-E
45 specifications
- Weight3.46 kg
- ColourBlack
- Number of computers controlled4
- Ethernet LANYes
- HD type4K Ultra HD
- Built-in displayNo
Overview
- Weight
- 3.46 kg
- Colour
- Black
- Number of computers controlled
- 4
- Ethernet LAN
- Yes
- HD type
- 4K Ultra HD
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1944DP-AT-E
- Part number
- CS1944DP-AT-E
- Also known as
- ATEN CS1944DP-AT-E KVM switch Black
Specifications
45 specifications in 11 groups

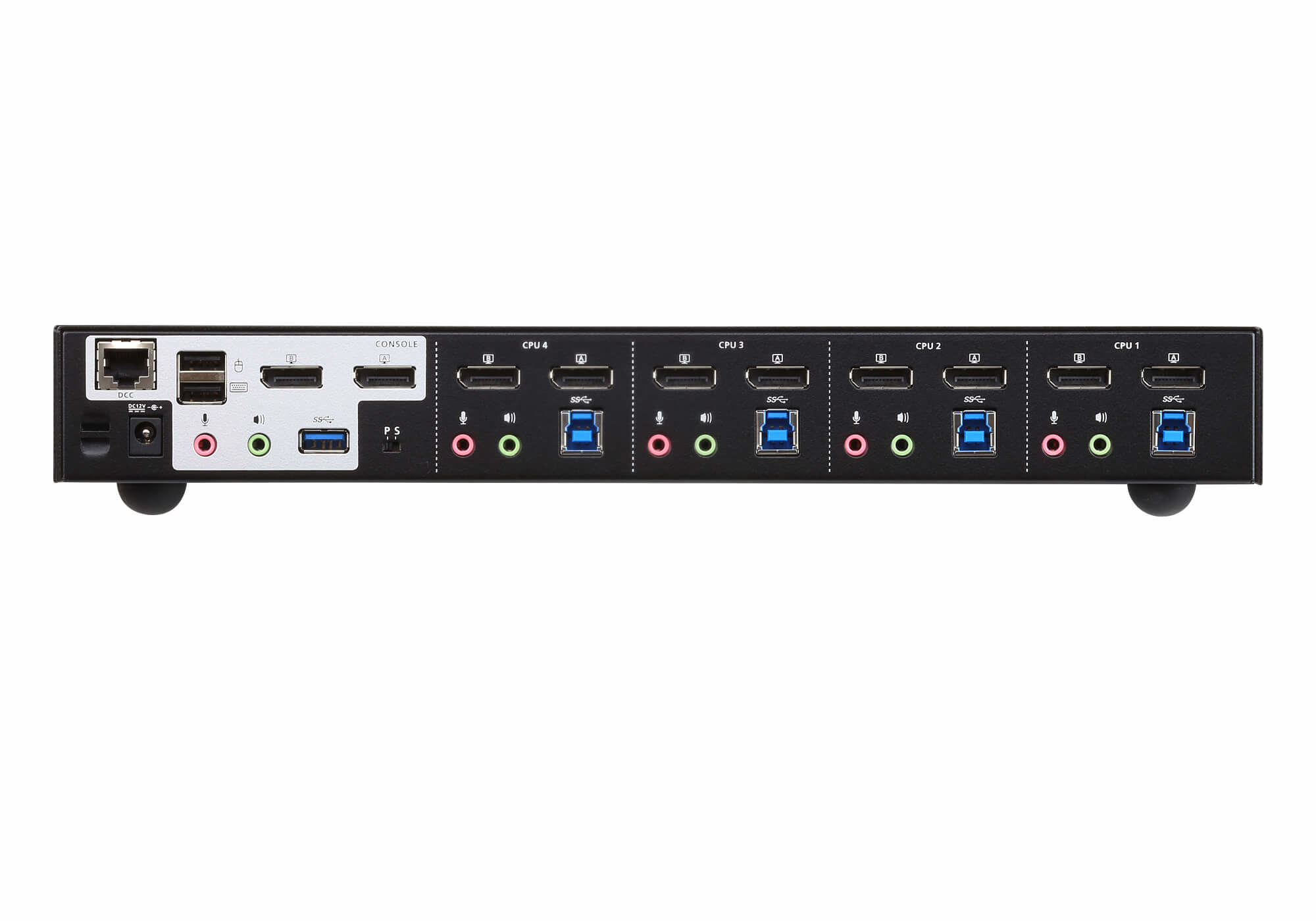

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 6.125 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156.6 mm |
| Depth | 335 mm |
| Height | 44 mm |
| Weight | 3.46 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.21 kg |

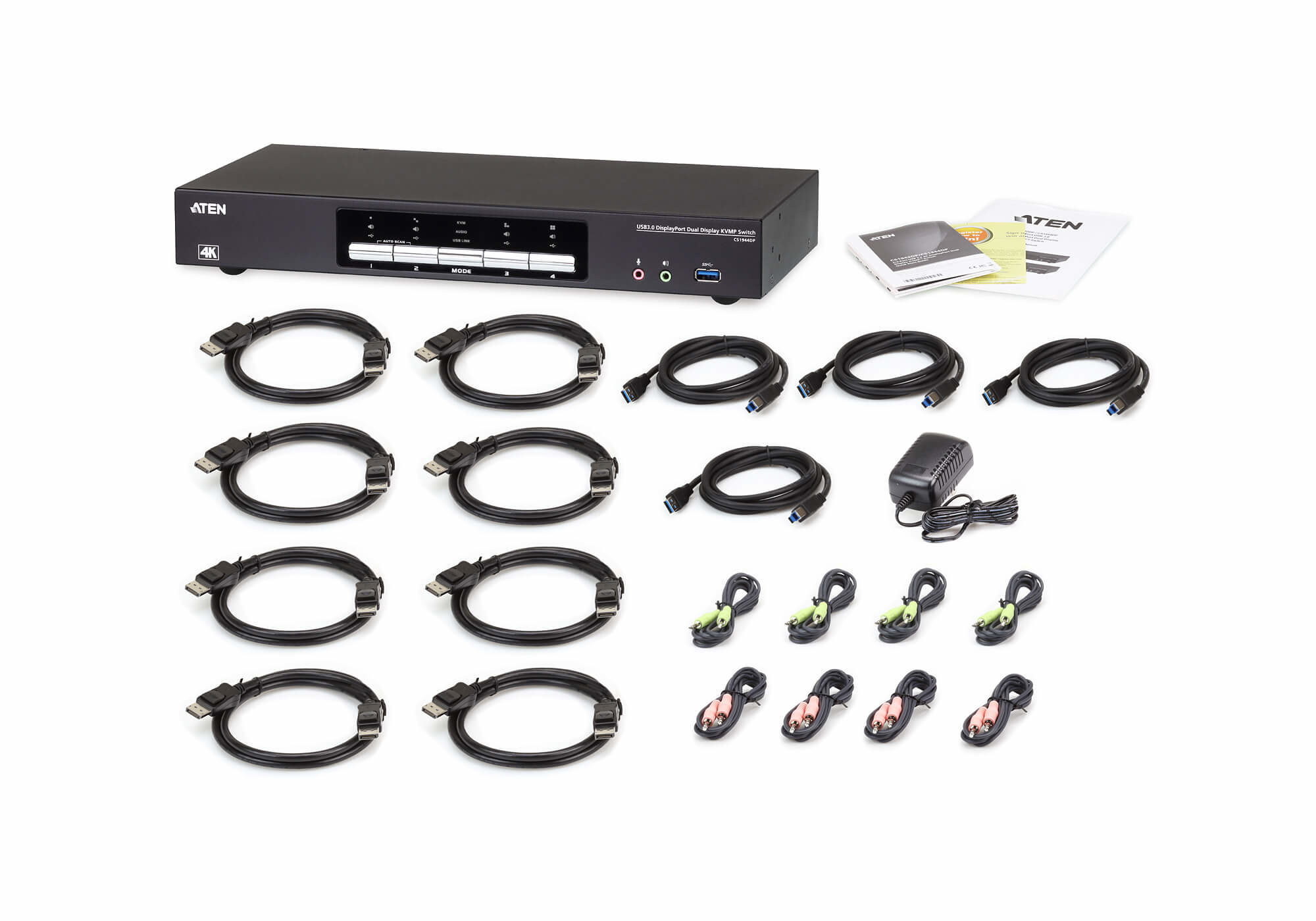

Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), DisplayPort, USB |
| AC adapter included | Yes |
| Manual | Yes |
