ATEN CS1944DP KVM switch Black

ATEN CS1944DP KVM switch Black

Model CS1944DPEAN 672792007897

46 specifications
  • Weight1.51 kg
  • ColourBlack
  • Number of computers controlled4
  • Ethernet LAN (RJ-45) ports1
  • HD type4K Ultra HD
  • Built-in displayNo
See all specifications

Overview

Weight
1.51 kg
Colour
Black
Number of computers controlled
4
Ethernet LAN (RJ-45) ports
1
HD type
4K Ultra HD
Built-in display
No
Brand
ATEN
Category
KVM Switch
Model
CS1944DP
Part number
CS1944DP
EAN / UPC
672792007897
Also known as
ATEN CS1944DP KVM switch Black

Specifications

46 specifications in 12 groups

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity10
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs6
Number of microphone inputs6
DC-in jackYes

Network

Ethernet LAN (RJ-45) ports1

Performance

HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth60 Hz
Scan interval1,99 s
HDCPYes
Firmware upgradeableYes

Design

Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysNo

Display

Built-in displayNo

Power

Power sourceDC
Input voltage12 V
Power consumption (typical)5.76 W

System requirements

Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supportedRedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 9.3, openSUSE
Mac operating systems supportedMac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS
Other operating systems supportedDOS, Novell NetWare 5.x, Novell NetWare 6.x

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width156.6 mm
Depth335 mm
Height44 mm
Weight1.51 kg

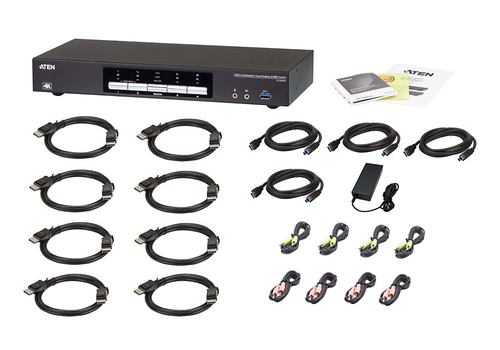

Packaging content

Cables includedAudio (3.5mm), DisplayPort, KVM, USB
AC adapter includedYes
ManualYes

Logistics data

Harmonized System (HS) code85176200
