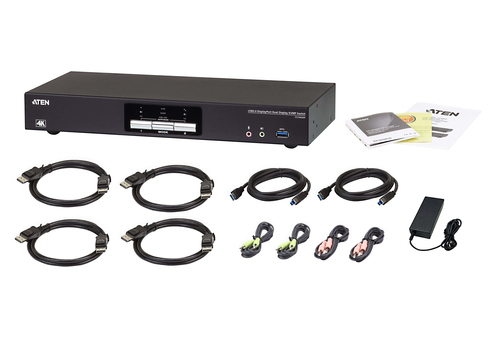

ATEN CS1942DP KVM switch Black

ATEN CS1942DP KVM switch Black

Model CS1942DPEAN 672792007880

43 specifications
  • Weight1.54 kg
  • ColourBlack
  • Number of computers controlled2
  • Ethernet LAN (RJ-45) ports1
  • HD type4K Ultra HD
  • Rack mountingNo
See all specifications

Overview

Weight
1.54 kg
Colour
Black
Number of computers controlled
2
Ethernet LAN (RJ-45) ports
1
HD type
4K Ultra HD
Rack mounting
No
Brand
ATEN
Category
KVM Switch
Model
CS1942DP
Part number
CS1942DP
EAN / UPC
672792007880
Also known as
ATEN CS1942DP KVM switch Black

Specifications

43 specifications in 10 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity6
DisplayPort version1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Headphone outputs4
Number of microphone inputs4
DC-in jackYes

Network

Ethernet LAN (RJ-45) ports1

Performance

HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth60 Hz
Scan interval1,5,99 s
Auto scan delay (min)1 s
Auto scan delay (max)99 s
HDCPYes
Daisy chainYes
Firmware upgradeableYes

Design

Rack mountingNo
Product colourBlack
Housing materialMetal
Push buttonYes
Hot keysYes

Display

Built-in displayNo

Power

Power sourceDC
Input voltage12 V

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width156.6 mm
Depth335 mm
Height44 mm
Weight1.54 kg

Packaging content

Cables includedAudio (3.5mm), DisplayPort to Mini DisplayPort, USB
AC adapter includedYes
ManualYes

Logistics data

Harmonized System (HS) code85176200
