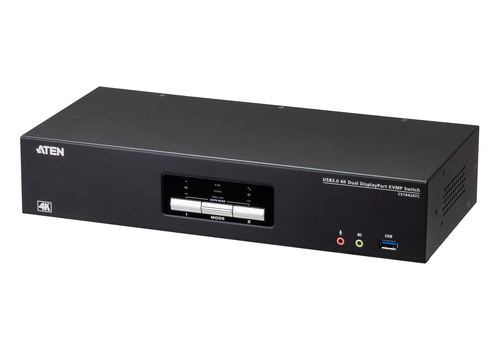

CS1942ATC-AT-E KVM switch Black
Model CS1942ATC-AT-E
38 specifications
- Weight1.88 kg
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Built-in displayYes
- Power sourceDC
Overview
- Weight
- 1.88 kg
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Built-in display
- Yes
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1942ATC-AT-E
- Part number
- CS1942ATC-AT-E
- Also known as
- ATEN CS1942ATC-AT-E KVM switch Black
Specifications
38 specifications in 8 groups

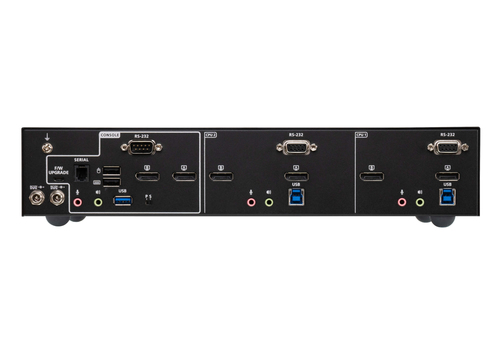

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| VGA (D-Sub) ports quantity | 3 |
| DisplayPorts quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) |
| Console DisplayPorts ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | Micro-USB, USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 17.8 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 20 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 161 mm |
| Depth | 335 mm |
| Height | 65.5 mm |
| Weight | 1.88 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
