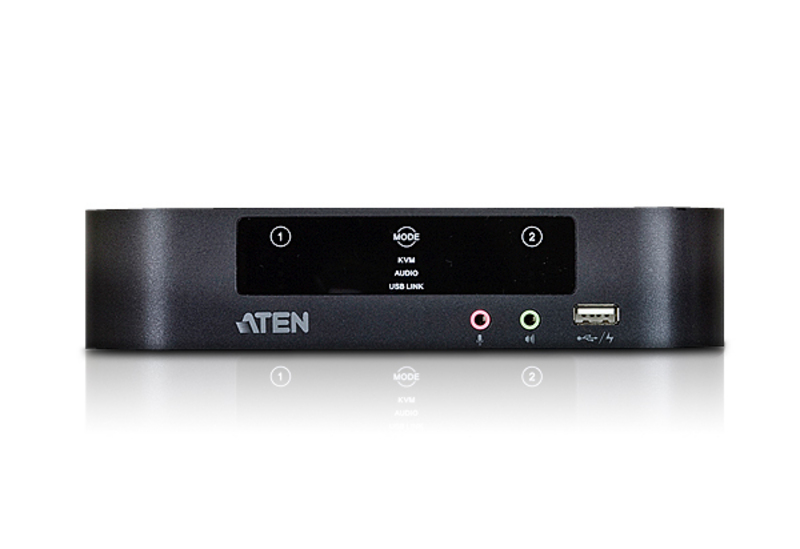

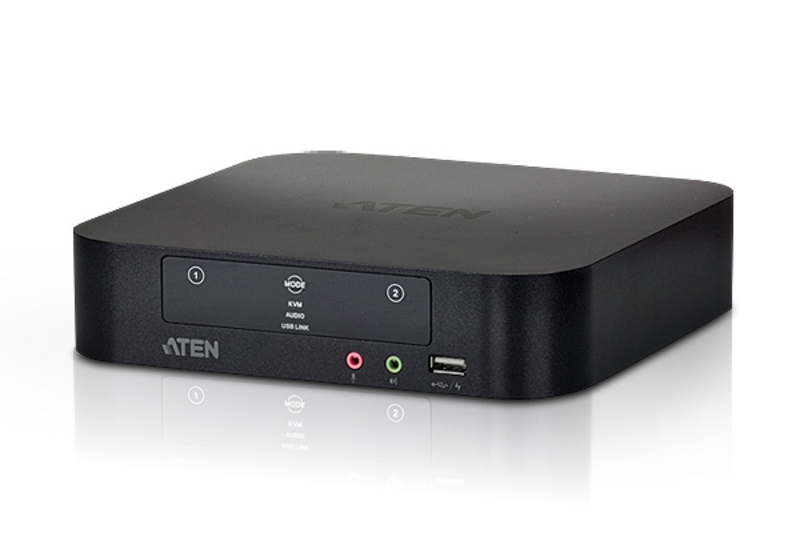

CS1942-AT-G KVM switch Black
Model CS1942-AT-GEAN 672792003431
44 specifications
- Weight560 g
- ColourBlack
- Number of computers controlled2
- HD typeWide Quad HD
- Built-in displayNo
- Power sourceAC
Overview
- Weight
- 560 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- Wide Quad HD
- Built-in display
- No
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1942-AT-G
- Part number
- CS1942-AT-G
- EAN / UPC
- 672792003431, 6727920034314
- Also known as
- ATEN CS1942-AT-G KVM switch Black
Specifications
44 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | Mini DisplayPort |
| DisplayPort version | 1.1a |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, Mini DisplayPort, USB A |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | Wide Quad HD |
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 120 Hz |
| Scan interval | 1,99 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 99 s |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 2.33 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 197 mm |
| Height | 44.7 mm |
| Weight | 560 g |

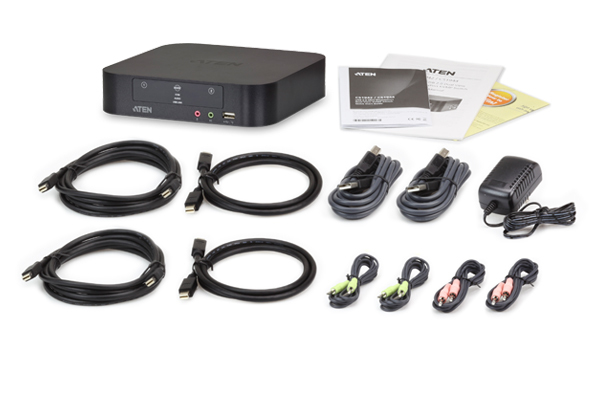

Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), Mini DisplayPort, USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Manual | Yes |
