CS1922 KVM switch Black
Model CS1922EAN 672792403712
35 specifications
- Weight910 g
- ColourBlack
- Number of computers controlled4
- Maximum resolution4096 x 2160 pixels
- Built-in displayNo
- Output voltage5 V
Overview
- Weight
- 910 g
- Colour
- Black
- Number of computers controlled
- 4
- Maximum resolution
- 4096 x 2160 pixels
- Built-in display
- No
- Output voltage
- 5 V
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1922
- Part numbers
- CS1922, 14016832, CS1922-AT-G
- EAN / UPC
- 672792403712, 4719264644764
- Also known as
- ATEN CS1922 KVM switch Black
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console USB ports quantity | 4 |

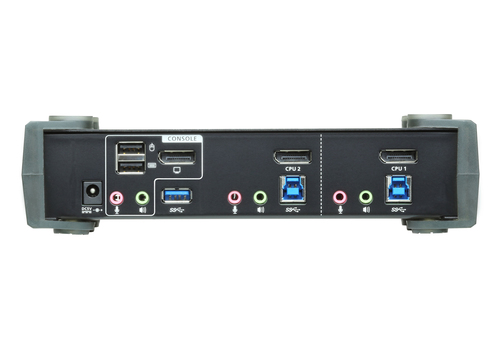

| Console ports | 3.5mm mic, DisplayPort, USB B |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Operation, USB |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| External power adapter | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 270 mm |
| Height | 55.5 mm |
| Weight | 910 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), DisplayPort, USB |
| AC adapter included | Yes |
| Manual | Yes |
