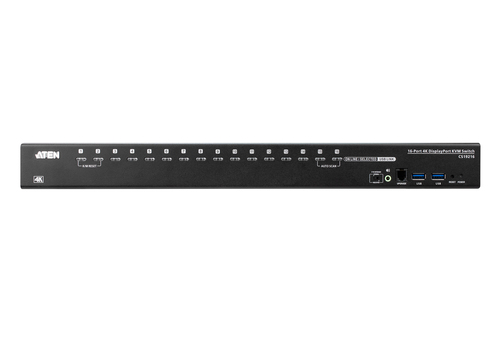

CS19216-AT-E KVM switch Black
Model CS19216-AT-EEAN 5715327008145
47 specifications
- Weight4.18 kg
- ColourBlack
- Number of computers controlled16
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 4.18 kg
- Colour
- Black
- Number of computers controlled
- 16
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS19216-AT-E
- Part number
- CS19216-AT-E
- EAN / UPC
- 5715327008145
- Also known as
- ATEN CS19216-AT-E KVM switch Black
Specifications
47 specifications in 10 groups

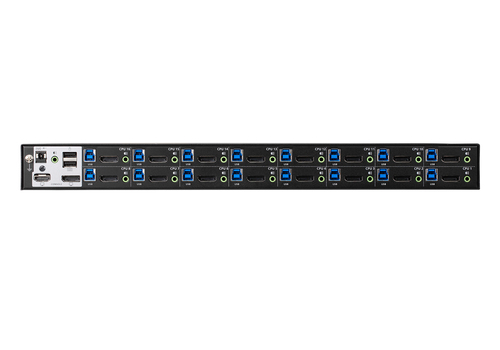

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 16 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 16 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 17 |
| Number of microphone inputs | 17 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| HDCP | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 26.66 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432.4 mm |
| Depth | 214.3 mm |
| Height | 44 mm |
| Weight | 4.18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 5.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
