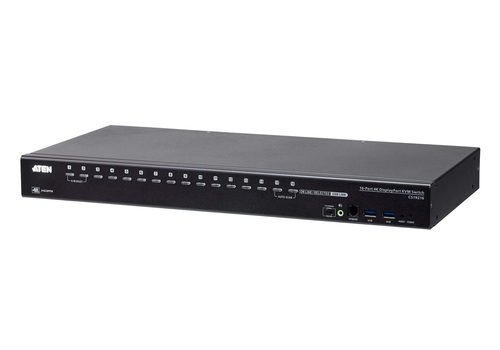

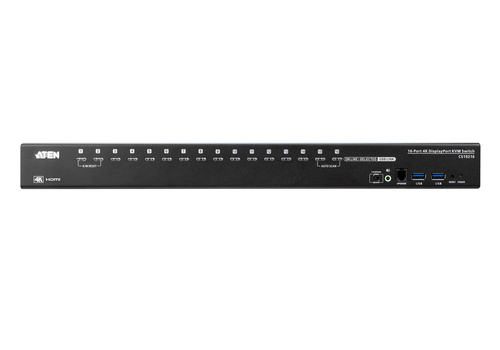

CS19216 KVM switch Rack mounting Black
Model CS19216EAN 672792011009
45 specifications
- Weight3.54 kg
- ColourBlack
- Number of computers controlled16
- HD type4K Ultra HD
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 3.54 kg
- Colour
- Black
- Number of computers controlled
- 16
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS19216
- Part number
- CS19216
- EAN / UPC
- 672792011009
- Also known as
- ATEN CS19216 KVM switch Rack mounting Black
Specifications
45 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 16 |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 18 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 255 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| External power adapter | Yes |
| Power consumption (typical) | 26.66 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432.4 mm |
| Depth | 214.3 mm |
| Height | 44 mm |
| Weight | 3.54 kg |
