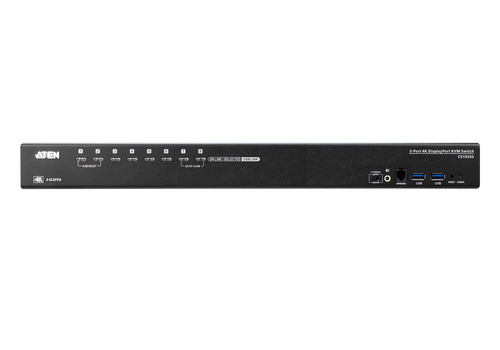

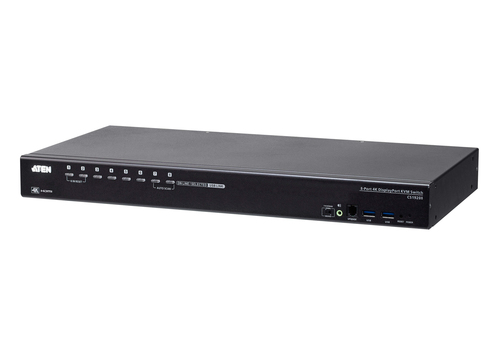

CS19208 KVM switch Rack mounting Black
Model CS19208EAN 672792010996
30 specifications
- Weight3.11 kg
- ColourBlack
- Number of computers controlled128
- HD type4K Ultra HD
- Rack mountingYes
- Power consumption (typical)18.44 W
Overview
- Weight
- 3.11 kg
- Colour
- Black
- Number of computers controlled
- 128
- HD type
- 4K Ultra HD
- Rack mounting
- Yes
- Power consumption (typical)
- 18.44 W
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS19208
- Part number
- CS19208
- EAN / UPC
- 672792010996
- Also known as
- ATEN CS19208 KVM switch Rack mounting Black
Specifications
30 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 128 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console USB ports quantity | 6 |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Auto scan delay (min) | 0 s |
| Auto scan delay (max) | 255 s |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18.44 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 214.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.11 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
