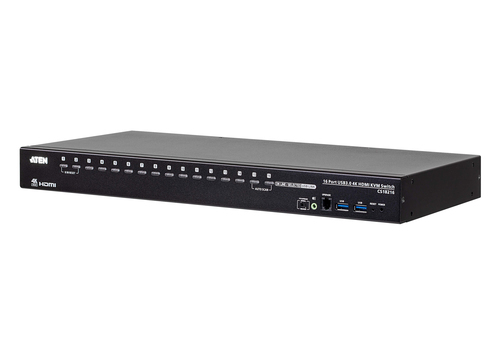

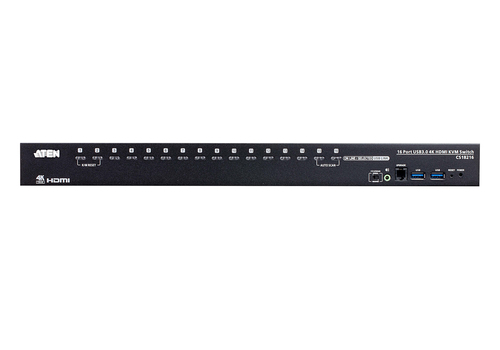

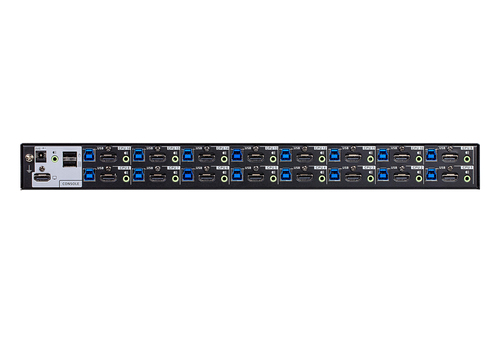

CS18216 KVM switch Black
Model CS18216EAN 672792012518
40 specifications
- Weight3.54 kg
- ColourBlack
- Number of computers controlled16
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 3.54 kg
- Colour
- Black
- Number of computers controlled
- 16
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS18216
- Part numbers
- CS18216, CS18216-AT-U
- EAN / UPC
- 672792012518
- Also known as
- ATEN CS18216 KVM switch Black
Specifications
40 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 17 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 16 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 17 |
| Number of microphone inputs | 17 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 255 s |
| Auto scan delay (min) | 0 s |
| Auto scan delay (max) | 255 s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power consumption (typical) | 13.12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 214.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.54 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Audio (3.5mm), HDMI, USB |
| AC adapter included | Yes |
| Manual | Yes |
