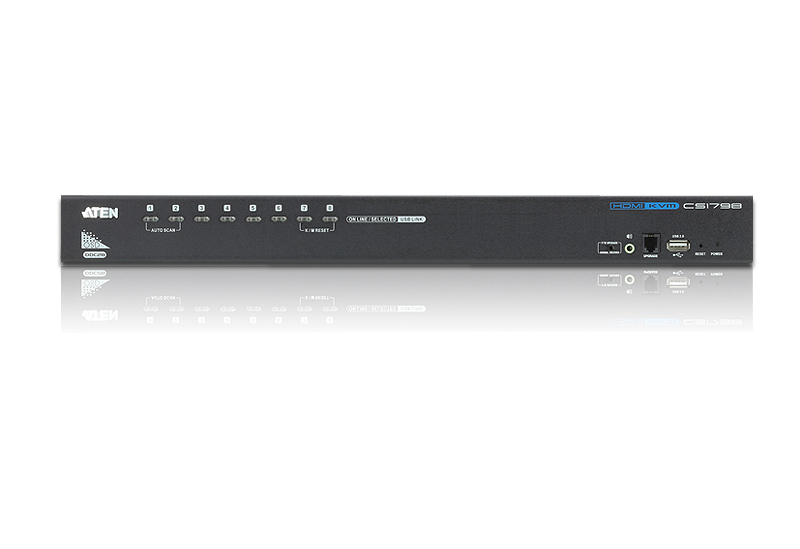

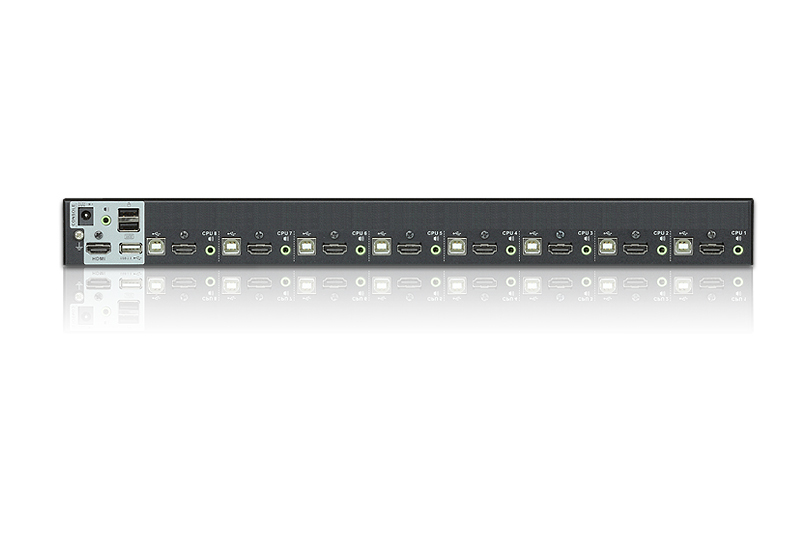

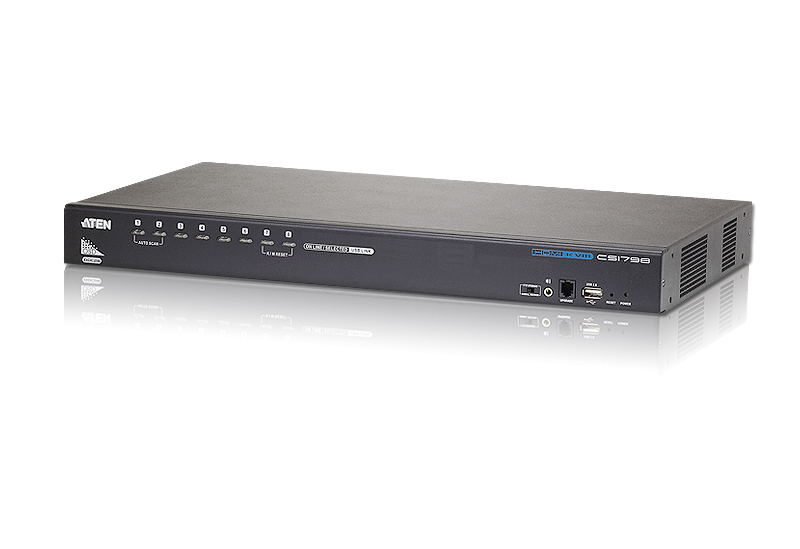

ATEN 8-Port USB - HDMI KVM Switch with USB Peripheral port
ATEN

8-Port USB - HDMI KVM Switch with USB Peripheral port

Model CS1798-AT-GEAN 4719264641596

50 specifications
  • Weight4.63 kg
  • ColourBlack
  • Number of computers controlled8
  • HD typeWUXGA
  • Built-in displayNo
  • Power sourceDC
See all specifications

Overview

Weight
4.63 kg
Colour
Black
Number of computers controlled
8
HD type
WUXGA
Built-in display
No
Power source
DC
Brand
ATEN
Category
KVM Switch
Model
CS1798-AT-G
Part number
CS1798-AT-G
EAN / UPC
4719264641596, 5706998414434
Also known as
ATEN 8-Port USB - HDMI KVM Switch with USB Peripheral port

Specifications

50 specifications in 11 groups

Ports & interfaces

Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity8
USB 2.0 Type-B ports quantity8
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
USB hubYes
USB 2.0 Type-A hub ports quantity2
USB connector typeUSB Type-A, USB Type-B
Audio connectionsYes
Headphone outputs9
Number of microphone inputs1
DC-in jackYes

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Scan interval1,5,255 s

Design

Product colourBlack
Housing materialMetal
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceDC
Input voltage5 V
Power consumption (typical)8.56 W

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width432.4 mm
Depth257.2 mm
Height440 mm
Weight4.63 kg

Packaging data

Package width133 mm
Package depth499 mm
Package height324 mm
Package weight5.22 kg

Packaging content

ManualYes
Quick installation guideYes

Logistics data

Harmonized System (HS) code85176200
Master (outer) case net weight13.9 kg
Master (outer) case width427 mm
Master (outer) case length519 mm
Master (outer) case height348 mm
Master (outer) case gross weight16.7 kg
Products per master (outer) case3 pc(s)
