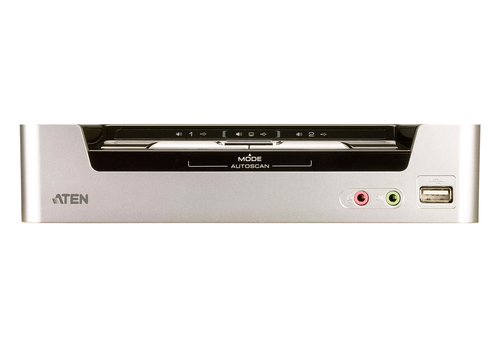

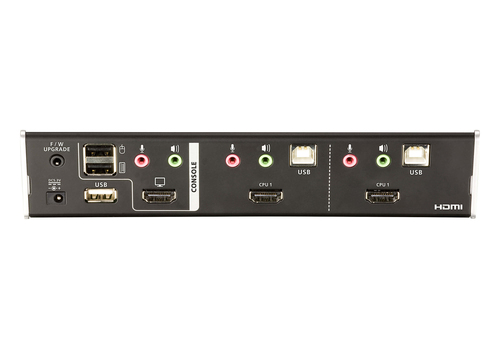

ATEN CS1792 KVM switch Rack mounting Black, Silver

ATEN CS1792 KVM switch Rack mounting Black, Silver

Model CS1792EAN 6727923981318

44 specifications
  • Weight420 g
  • ColourBlack, Silver
  • Number of computers controlled2
  • HD typeWUXGA
  • Rack capacity1U
  • Built-in displayNo
See all specifications

Overview

Weight
420 g
Colour
Black, Silver
Number of computers controlled
2
HD type
WUXGA
Rack capacity
1U
Built-in display
No
Brand
ATEN
Category
KVM Switch
Model
CS1792
Part number
CS1792
EAN / UPC
6727923981318, 080479852300, 672792398131, 2050001027641 +2 more
Also known as
ATEN CS1792 KVM switch Rack mounting Black, Silver

Specifications

44 specifications in 11 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity3
Console USB ports quantity1
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector typeUSB Type-A
Audio connectionsYes
Headphone outputs2
Number of microphone inputs1
DC-in jackYes

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Scan interval1,99 s
Firmware upgradeableYes

Design

Rack capacity1U
Rack mountingYes
Product colourBlack, Silver
Housing materialMetal, Plastic
LED indicatorsYes
Push buttonYes
Hot keysYes

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceAC
Input voltage5.3 V
Power consumption (typical)3.2 W

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Other operating systems supportedYes

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width206.3 mm
Depth72.4 mm
Height44 mm
Weight420 g

Packaging content

Cables includedKVM
AC adapter includedYes
ManualYes

Logistics data

Harmonized System (HS) code85176200
