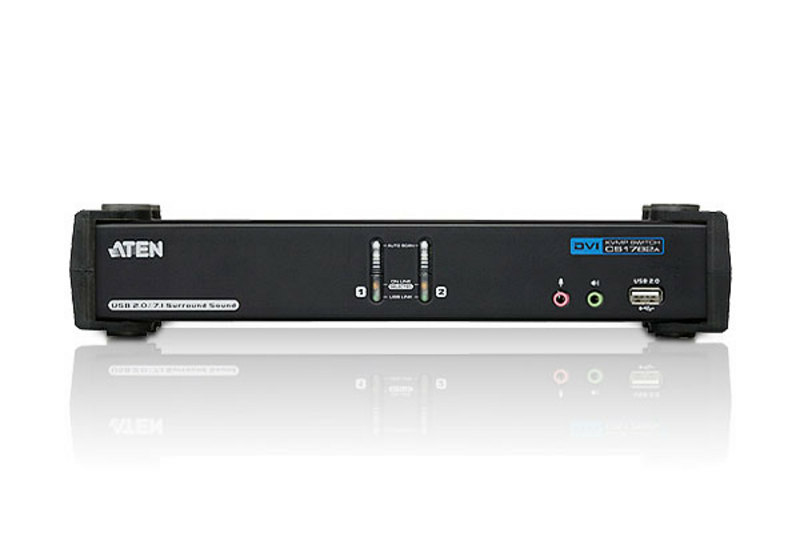

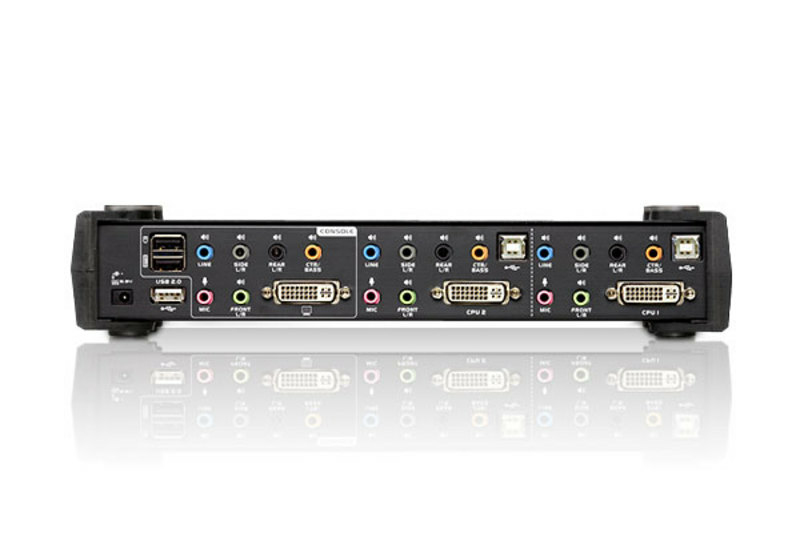

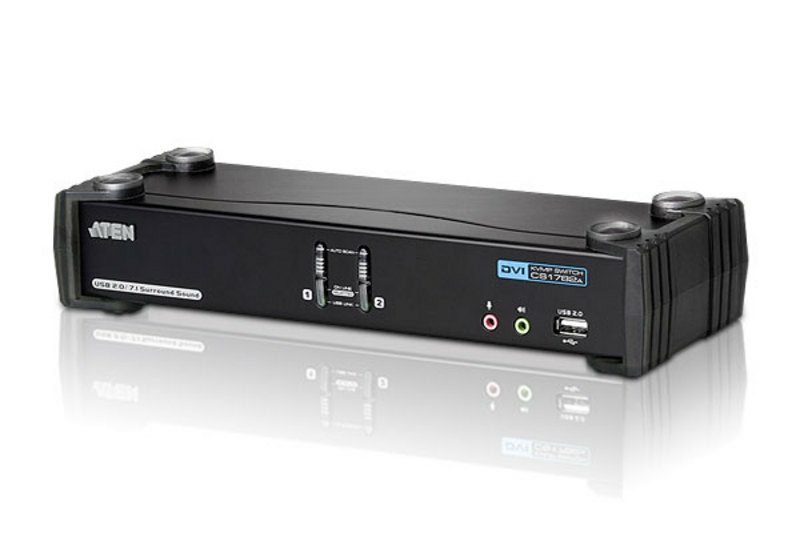

CS1782A-AT-G-C1 KVM switch Black
Model CS1782A-AT-G-C1
36 specifications
- Weight1.88 kg
- ColourBlack
- Number of computers controlled2
- HD typeWUXGA
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 1.88 kg
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- WUXGA
- Built-in display
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1782A-AT-G-C1
- Part number
- CS1782A-AT-G-C1
- Also known as
- ATEN CS1782A-AT-G-C1 KVM switch Black
Specifications
36 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 3.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 1.88 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
