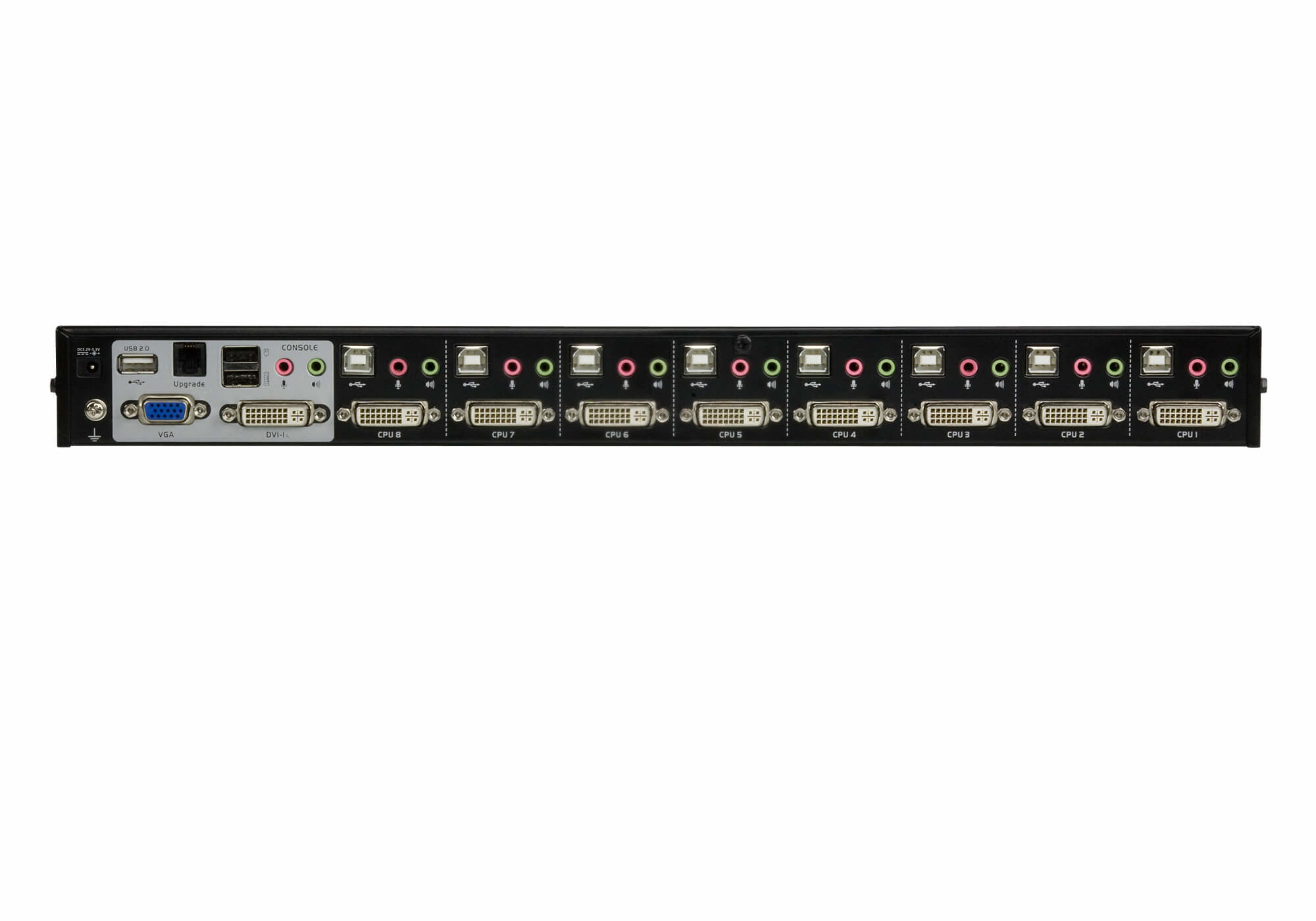

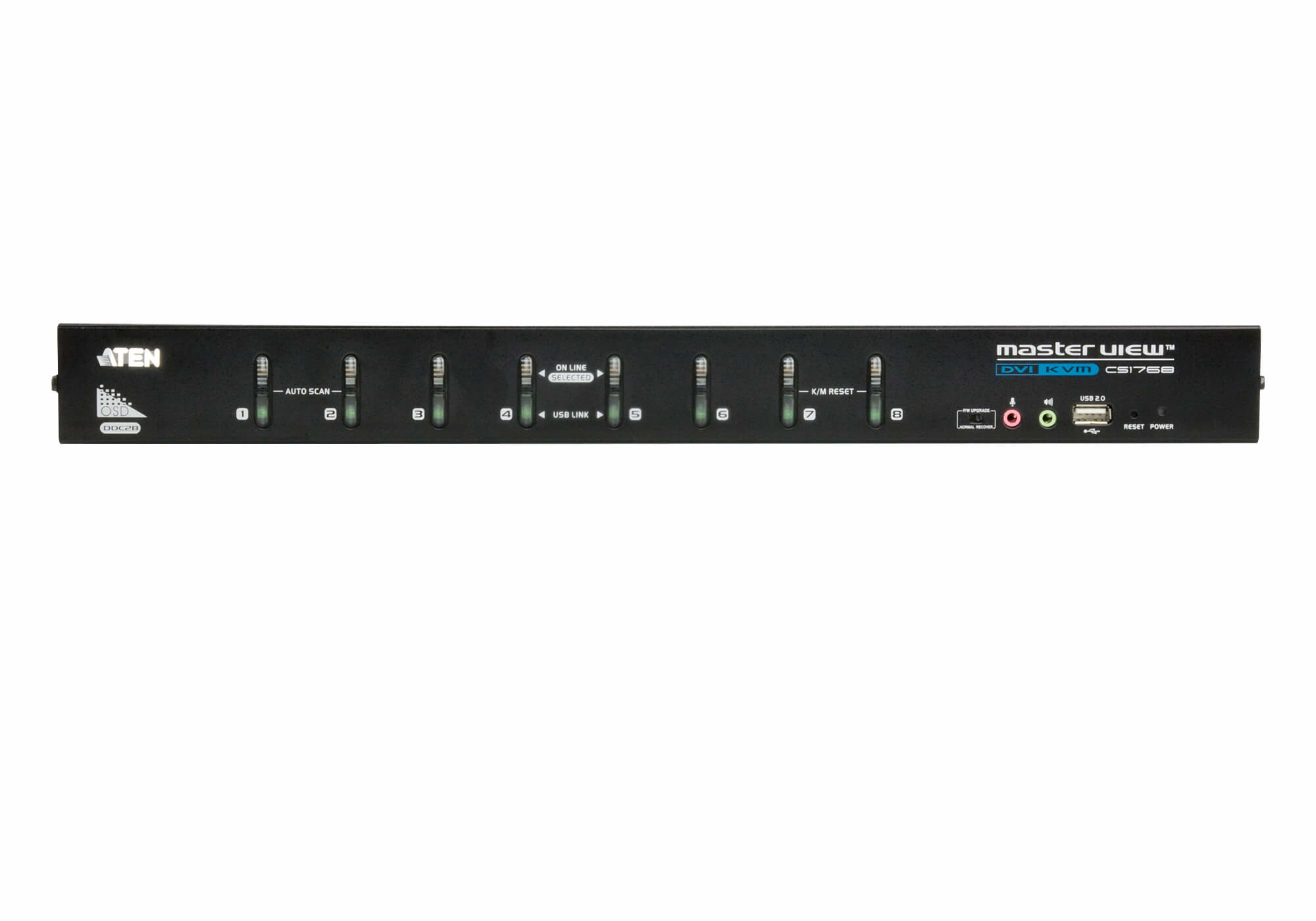

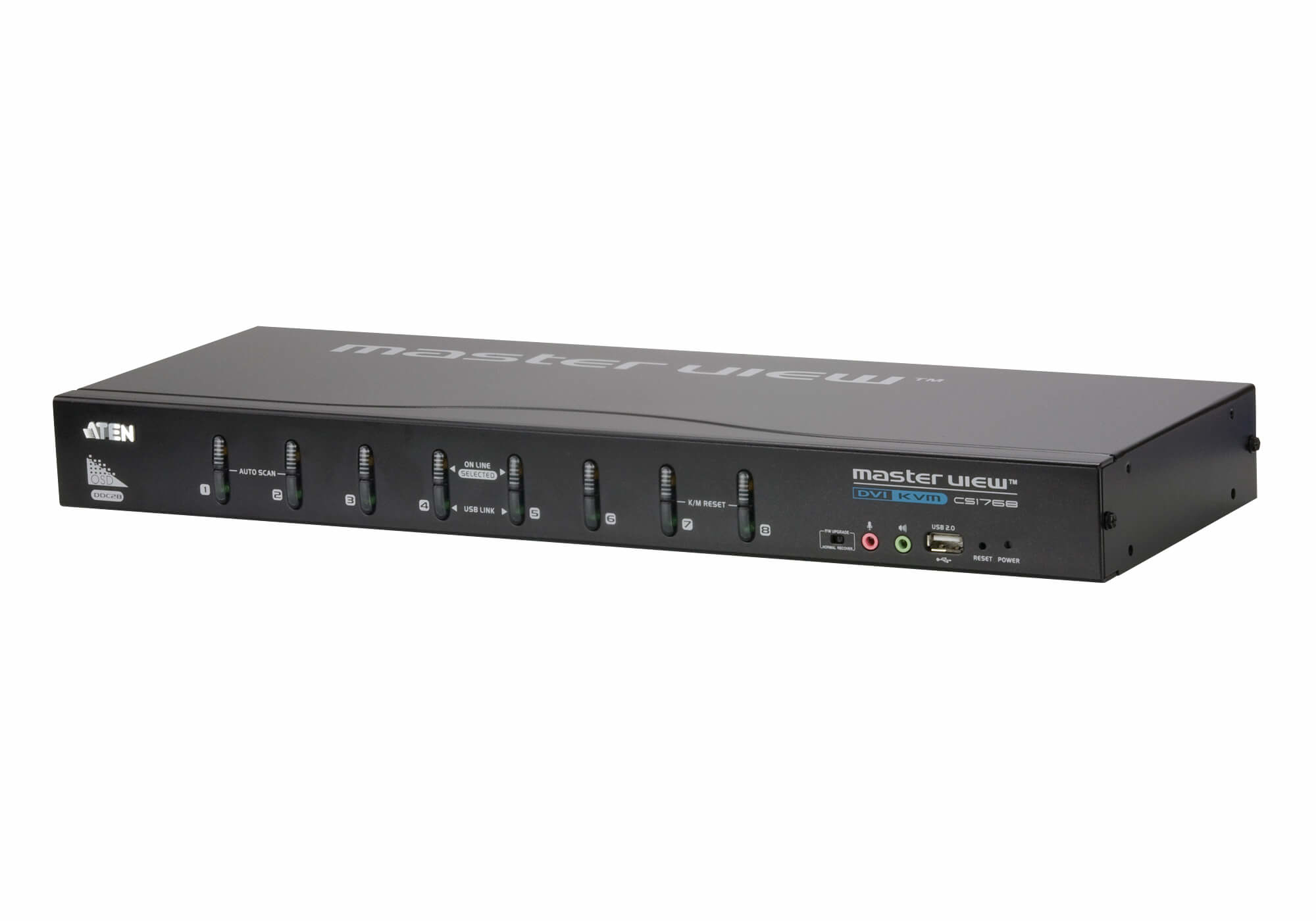

8-Port USB DVI KVM Switch with Audio
Model CS1768-ATA-E
50 specifications
- Weight3.61 kg
- ColourBlack
- Number of computers controlled8
- HD typeQXGA
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 3.61 kg
- Colour
- Black
- Number of computers controlled
- 8
- HD type
- QXGA
- Built-in display
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1768-ATA-E
- Part number
- CS1768-ATA-E
- Also known as
- ATEN 8-Port USB DVI KVM Switch with Audio
Specifications
50 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 10 |
| Number of microphone inputs | 10 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| DDC2B support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 4.53 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 161.2 mm |
| Height | 44 mm |
| Weight | 3.61 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.07 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 10.8 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 13.6 kg |
| Products per master (outer) case | 3 pc(s) |
