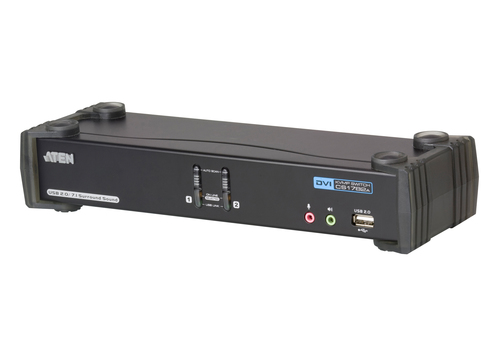

ATEN CS1764A KVM switch Black

ATEN CS1764A KVM switch Black

Model CS1764AEAN 132017610368

49 specifications
  • Weight940 g
  • ColourBlack
  • Number of computers controlled4
  • HD typeWUXGA
  • Built-in displayNo
  • Power sourceDC
See all specifications

Overview

Weight
940 g
Colour
Black
Number of computers controlled
4
HD type
WUXGA
Built-in display
No
Power source
DC
Brand
ATEN
Category
KVM Switch
Model
CS1764A
Part number
CS1764A
EAN / UPC
132017610368, 672792001987, 5055309613838, 6727920019878
Also known as
ATEN CS1764A KVM switch Black

Specifications

49 specifications in 11 groups

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
DVI-I ports quantity5
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB hubYes
USB 2.0 ports quantity4
USB connector typeUSB Type-A
USB version2.0
Audio connectionsYes
Headphone outputs5
Number of microphone inputs5
DC-in jackYes

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Scan interval1,99 s
DDC2B supportYes
HDCPYes
Power on detectionYes
Firmware upgradeableYes

Design

Product colourBlack
Housing materialMetal
LED indicatorsUSB, Yes
Push buttonYes
Hot keysYes

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceDC
Input voltage5.3 V
Power consumption (typical)10.7 W

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Other operating systems supportedYes

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width270 mm
Depth88 mm
Height55.5 mm
Weight940 g

Packaging content

Cables includedDC, KVM
ManualYes
Quick installation guideYes

Logistics data

Harmonized System (HS) code85176200
