ATEN CS1758 KVM switch White

ATEN CS1758 KVM switch White

Model CS1758EAN 4710423770522

51 specifications
  • Weight2.72 kg
  • ColourWhite
  • Number of computers controlled8
  • HD typeQXGA
  • Built-in displayNo
  • Input voltage5 V
See all specifications

Overview

Weight
2.72 kg
Colour
White
Number of computers controlled
8
HD type
QXGA
Built-in display
No
Input voltage
5 V
Brand
ATEN
Category
KVM Switch
Model
CS1758
Part numbers
CS1758, CS1758Q9-AT-G, DCP2912
EAN / UPC
4710423770522, 672792001857, 672792502866, 6727920018574 +2 more
Also known as
ATEN CS1758 KVM switch White

Specifications

51 specifications in 11 groups

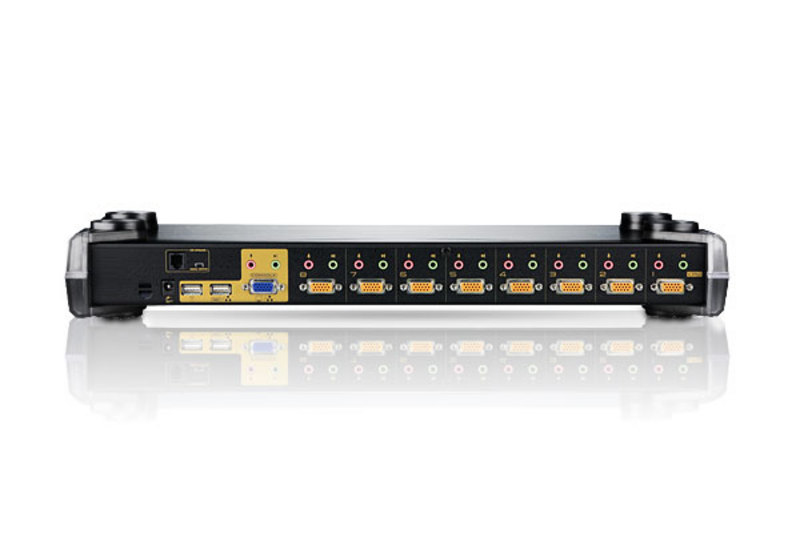

Ports & interfaces

Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Console USB ports quantity2

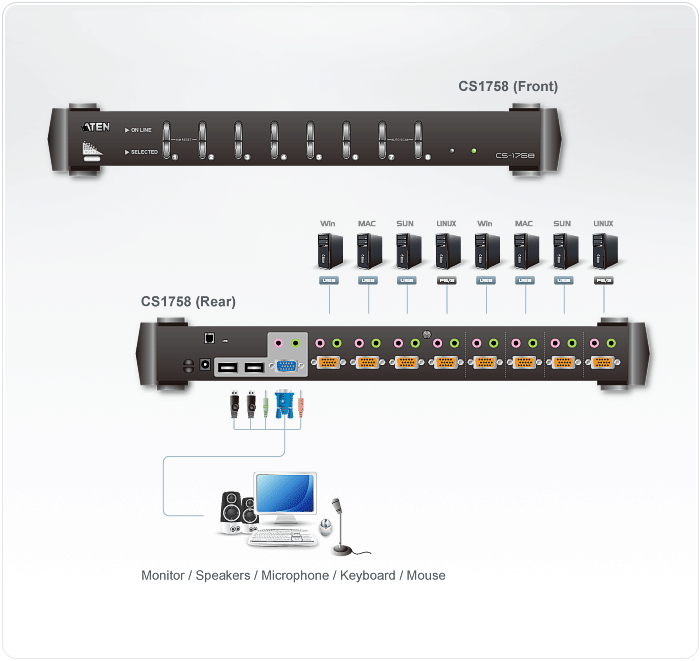

Console ports3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Headphone outputs1
Number of microphone inputs1
DC-in jackYes

Performance

HD typeQXGA
Maximum resolution2048 x 1536 pixels
Scan interval1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Auto scan delay (min)1 s
Auto scan delay (max)255 s
DDC2B supportYes

Design

Product colourWhite
Housing materialMetal
CascadableYes
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationROHS,Weee

Display

Built-in displayNo
On Screen Display (OSD)Yes

Power

Input voltage5 V
Power consumption (typical)2.32 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width161 mm
Depth437.2 mm
Height44 mm
Weight2.72 kg

Packaging data

Package width116 mm
Package depth540 mm
Package height233 mm
Package weight3.39 kg

Packaging content

Packaging content1x 8-Port PS/2-USB KVM Switch 1x LIN5-04A2-J11G Firmware Upgrade Cable 1x 0AD6-1005-10EG Power Adapter 1x Rack Mount Kit 1x User Instructions

Other features

Power supply type1 x DC Jack
CompatibilityCE790,CE350,CE370,2L-5302P,2L-5303P,2L-5301U,2L-5305P,2L-5302U,2L-5303U,2L-5305U,CS1754,CE100,CE770,CE700A,CE800B,CL3800,CL3100,CV190,2K-0001,2K-0002
Compatible operating systems-Windows 2000/XP/Vista -Linux -Mac -Unix -SUN -FreeBSD.
Dimensions (WxDxH)170 x 450 x 67 mm
Ports quantity8

Logistics data

Harmonized System (HS) code85176200
Master (outer) case width375 mm
Master (outer) case length565 mm
Master (outer) case height258 mm
Master (outer) case gross weight11.1 kg
Products per master (outer) case3 pc(s)
Country of originTaiwan
