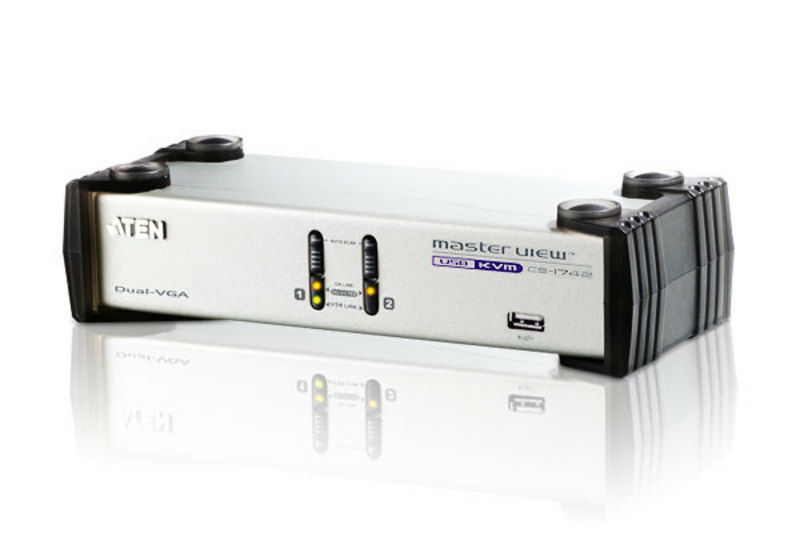

ATEN CS1742 KVM switch Silver
Model CS1742Part no. CS1742-ATEAN 5706998407207
45 specifications
- Weight820 g
- ColourSilver
- Number of computers controlled2
- Maximum resolution2048 x 1536 pixels
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 820 g
- Colour
- Silver
- Number of computers controlled
- 2
- Maximum resolution
- 2048 x 1536 pixels
- Rack mounting
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1742
- Part number
- CS1742-AT
- EAN / UPC
- 5706998407207, 672792151651, 4014619078639, 4043718065202 +2 more
- Also known as
- ATEN CS1742 KVM switch Silver
Specifications
45 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 6 |
| Console USB ports quantity | 2 |

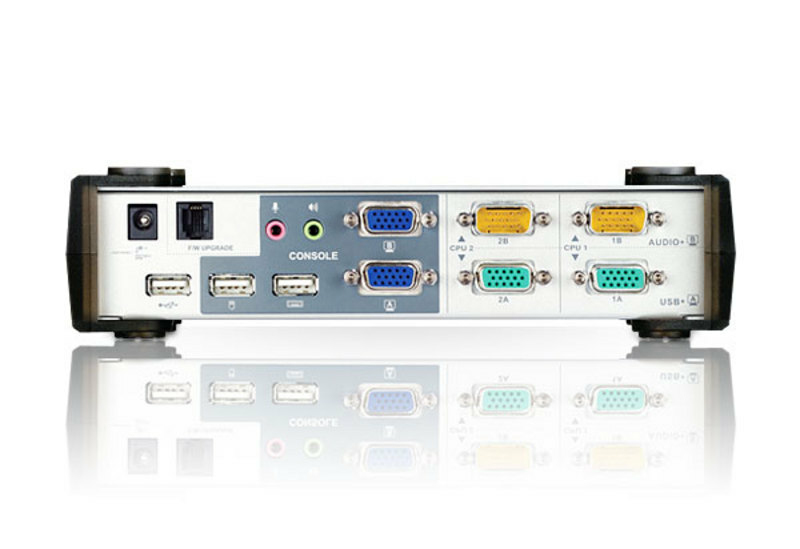

| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| USB hub | Yes |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,99 s |
| DDC2B support | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Silver |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.25 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 820 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
