4-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)
Model CS1734B-A7-G
39 specifications
- Weight1.95 kg
- ColourBlack, Metallic
- Number of computers controlled4
- HD typeQXGA
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 1.95 kg
- Colour
- Black, Metallic
- Number of computers controlled
- 4
- HD type
- QXGA
- Built-in display
- No
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1734B-A7-G
- Part number
- CS1734B-A7-G
- Also known as
- ATEN 4-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |

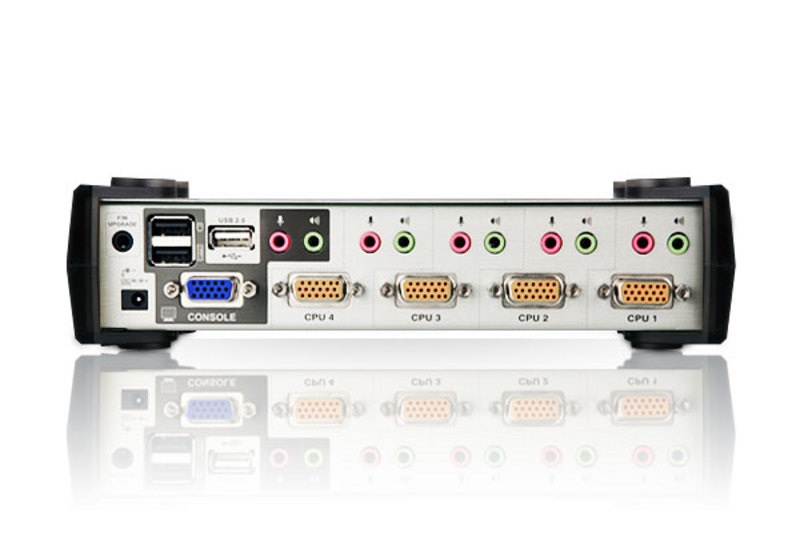

| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Metallic |
| Housing material | Metal |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.02 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 1.95 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 2.09 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM, USB |
