ATEN CS1732B-AT-E KVM switch Black, Metallic
Model CS1732B-AT-EEAN 5715327001078
43 specifications
- Weight1.15 kg
- ColourBlack, Metallic
- Number of computers controlled2
- HD typeQXGA
- On Screen Display (OSD)Yes
- Power sourceDC
Overview
- Weight
- 1.15 kg
- Colour
- Black, Metallic
- Number of computers controlled
- 2
- HD type
- QXGA
- On Screen Display (OSD)
- Yes
- Power source
- DC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1732B-AT-E
- Part number
- CS1732B-AT-E
- EAN / UPC
- 5715327001078
- Also known as
- ATEN CS1732B-AT-E KVM switch Black, Metallic
Specifications
43 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | 3.5mm headphone, 3.5mm mic |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Metallic |
| Housing material | Metal |
| Cable length | 1.2 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 2.5 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 1.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.34 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
| Manual | Yes |
| Quick installation guide | Yes |
Compare ATEN CS1732B-AT-E KVM switch Black, Metallic
Compare any products- ATEN CS1732B-AT-E KVM switch Black, Metallic vsATEN CS1642A KVM switch Rack mounting Black, SilverCompare specs
- ATEN CS1732B-AT-E KVM switch Black, Metallic vsATEN CL1316N KVM switch Rack mounting BlackCompare specs
- ATEN CS1732B-AT-E KVM switch Black, Metallic vsATEN CS1788-AT-E KVM switch BlackCompare specs
- ATEN CS1732B-AT-E KVM switch Black, Metallic vsATEN CS1716A-AT-E KVM switch Rack mounting BlackCompare specs
- ATEN CS1732B-AT-E KVM switch Black, Metallic vsDell DAV2108 KVM switch Rack mounting SilverCompare specs

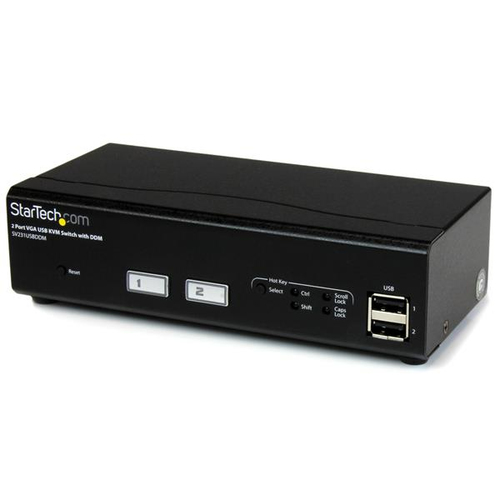

- ATEN CS1732B-AT-E KVM switch Black, Metallic vsStarTech.com 2 Port USB VGA KVM Switch with DDM Fast Switching Technology and CablesCompare specs

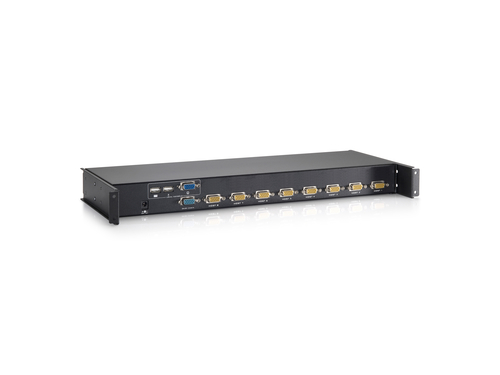

- ATEN CS1732B-AT-E KVM switch Black, Metallic vsLevelOne 8-Port KVM Switch ModuleCompare specs

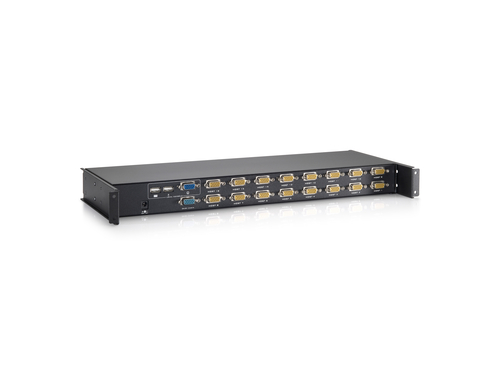

- ATEN CS1732B-AT-E KVM switch Black, Metallic vsLevelOne 16-Port KVM Switch ModuleCompare specs
