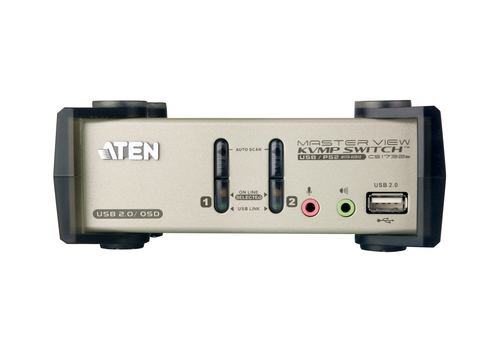

ATEN CS1732B KVM switch

ATEN CS1732B KVM switch

Model CS1732BEAN 672792112249

36 specifications
  • Weight550 g
  • Number of computers controlled2
  • Maximum resolution2048 x 1536 pixels
  • Housing materialMetal
  • On Screen Display (OSD)Yes
  • Power sourceDC
See all specifications

Overview

Weight
550 g
Number of computers controlled
2
Maximum resolution
2048 x 1536 pixels
Housing material
Metal
On Screen Display (OSD)
Yes
Power source
DC
Brand
ATEN
Category
KVM Switch
Model
CS1732B
Part number
CS1732B
EAN / UPC
672792112249, 191120037509, 667184339106, 5055309625541 +1 more
Also known as
ATEN CS1732B KVM switch

Specifications

36 specifications in 9 groups

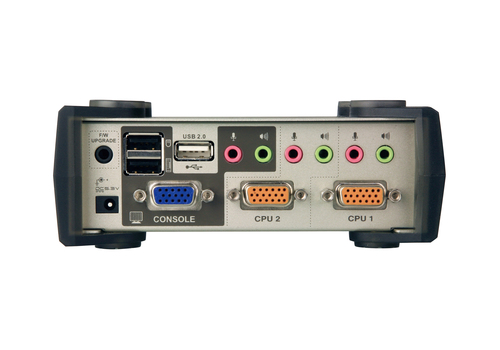

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Console ports3.5mm headphone, 3.5mm mic
USB hubYes
USB 2.0 ports quantity2
USB version2.0
Audio connectionsYes
Headphone outputs4

Performance

Maximum resolution2048 x 1536 pixels
Video bandwidth60 Hz
Scan interval1,255 s
DDC2B supportYes
Firmware upgradeableYes

Design

Housing materialMetal
Cable length1.2 m
LED indicatorsNetwork, USB
Push buttonYes
Hot keysYes

Display

On Screen Display (OSD)Yes

Power

Power sourceDC
Input voltage5.3 V
Power consumption (typical)2.5 W

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width140 mm
Depth88 mm
Height55.5 mm
Weight550 g

Packaging content

Cables includedKVM
ManualYes
Quick installation guideYes
