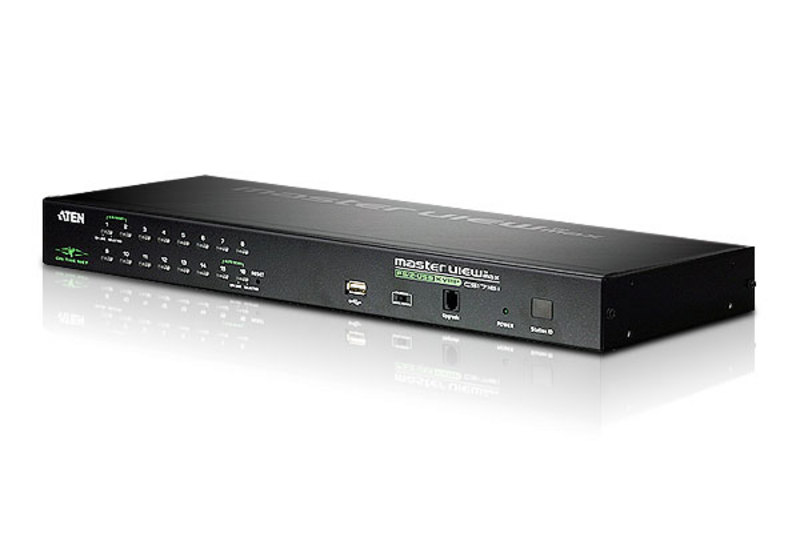

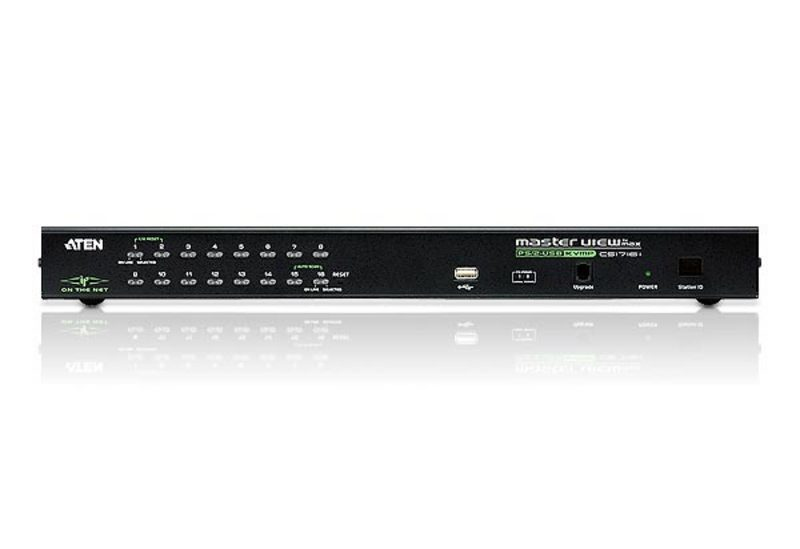

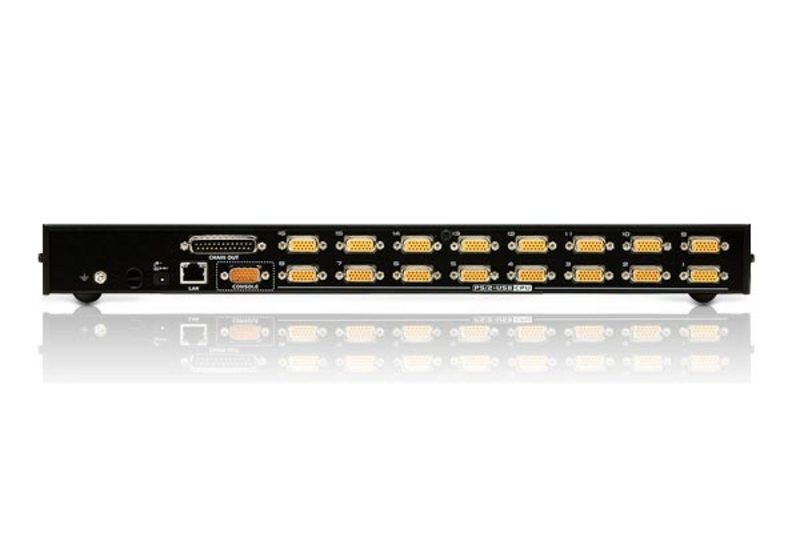

ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN

16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port

Model CS1716I-AT-GEAN 148560164876

60 specifications
  • Weight3.59 kg
  • ColourBlack
  • Number of computers controlled256
  • Ethernet LANYes
  • HD typeQXGA
  • Rack capacity1U
See all specifications

Overview

Weight
3.59 kg
Colour
Black
Number of computers controlled
256
Ethernet LAN
Yes
HD type
QXGA
Rack capacity
1U
Brand
ATEN
Category
KVM Switch
Model
CS1716I-AT-G
Part number
CS1716I-AT-G
EAN / UPC
148560164876, 4710423776722
Also known as
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port

Specifications

60 specifications in 13 groups

Ports & interfaces

Number of computers controlled256
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
VGA (D-Sub) ports quantity16
Console USB ports quantity1
Console portsUSB A, VGA (D-Sub)

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Security algorithms128-bit RC4, SSL/TLS

Performance

HD typeQXGA
Maximum resolution2048 x 1536 pixels
Video bandwidth60 Hz
Scan interval1,255 s
DDC2B supportYes
HDCPYes
Hot-Plug supportYes
Daisy chainYes
Number of users32 user(s)
Firmware upgradeableYes

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
Housing materialMetal
LED indicatorsYes
Push buttonYes
Hot keysYes

Display

Built-in displayNo
On Screen Display (OSD)Yes

Power

Power sourceDC
Input voltage5.3 V
Power consumption (typical)11 W

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width437.2 mm
Depth159.6 mm
Height44 mm
Weight3.59 kg

Packaging data

Package width116 mm
Package depth540 mm
Package height233 mm
Package weight3.98 kg

Packaging content

Cables includedDC, KVM
AC adapter includedYes
ManualYes
Quick installation guideYes
Rack mount kitYes
Software includedYes

Logistics data

Harmonized System (HS) code85176200
Master (outer) case net weight10.8 kg
Master (outer) case width375 mm
Master (outer) case length565 mm
Master (outer) case height258 mm
Master (outer) case gross weight12.6 kg
Products per master (outer) case3 pc(s)
