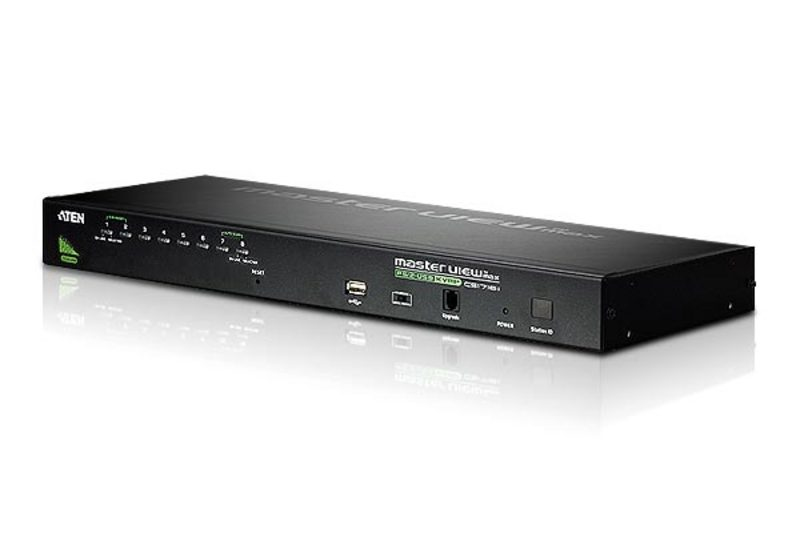

8-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
Model CS1708A-AT-GEAN 2000001245859
50 specifications
- Weight3.41 kg
- ColourBlack
- Number of computers controlled256
- HD typeQXGA
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 3.41 kg
- Colour
- Black
- Number of computers controlled
- 256
- HD type
- QXGA
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1708A-AT-G
- Part number
- CS1708A-AT-G
- EAN / UPC
- 2000001245859, 4710423775312
- Also known as
- ATEN 8-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
Specifications
50 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 256 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console USB ports quantity | 1 |
| Console ports | USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC/DDC2 supported | Yes |
| DDC2B support | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 5 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 159.9 mm |
| Height | 44 mm |
| Weight | 3.41 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.85 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 10.2 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 12.2 kg |
| Products per master (outer) case | 3 pc(s) |
