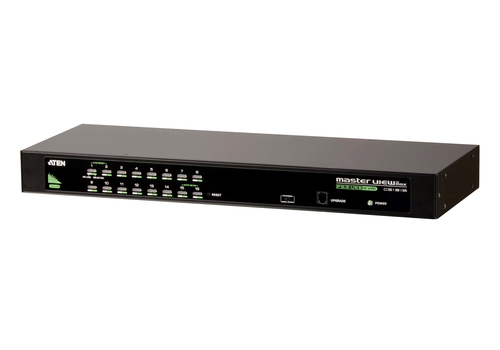

16-Port USB - PS/2 VGA KVM Switch
Model CS1316-AT-GEAN 2000001245637
49 specifications
- Weight2.5 kg
- ColourBlack
- Number of computers controlled256
- HD typeQXGA
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Number of computers controlled
- 256
- HD type
- QXGA
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1316-AT-G
- Part number
- CS1316-AT-G
- EAN / UPC
- 2000001245637, 4710423774209
- Also known as
- ATEN 16-Port USB - PS/2 VGA KVM Switch
Specifications
49 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 256 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.5 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 161.3 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.87 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 7.5 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.27 kg |
| Products per master (outer) case | 3 pc(s) |
