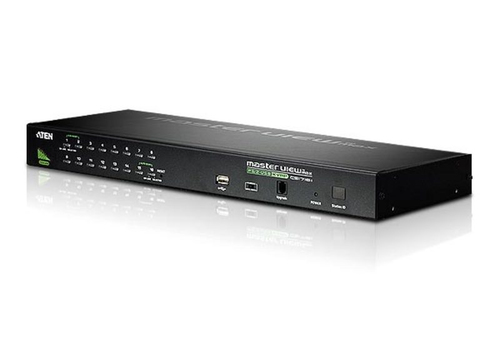

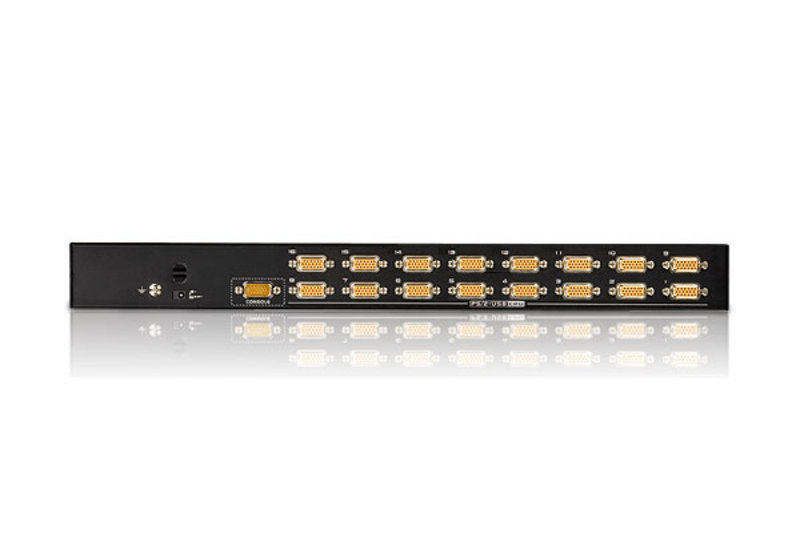

ATEN CS1316 KVM switch Rack mounting Black
Model CS1316EAN 777782213354
22 specifications
- Weight2.1 kg
- ColourBlack
- Number of computers controlled16
- Ethernet LANNo
- Maximum resolution2048 x 1536 pixels
- Rack capacity1U
Overview
- Weight
- 2.1 kg
- Colour
- Black
- Number of computers controlled
- 16
- Ethernet LAN
- No
- Maximum resolution
- 2048 x 1536 pixels
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1316
- Part numbers
- CS1316, DCP2908
- EAN / UPC
- 777782213354, 672792100369, 706166010395, 6727921003692
- Also known as
- ATEN CS1316 KVM switch Rack mounting Black
Specifications
22 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 17 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 6.6 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Compare ATEN CS1316 KVM switch Rack mounting Black
Compare any products- ATEN CS1316 KVM switch Rack mounting Black vsATEN CS1716A KVM switch Rack mounting BlackCompare specs

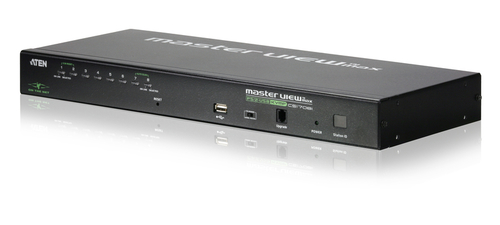

- ATEN CS1316 KVM switch Rack mounting Black vsATEN CS1708A KVM switch Rack mounting BlackCompare specs
- ATEN CS1316 KVM switch Rack mounting Black vsATEN VS0801A KVM switch Rack mounting BlackCompare specs
- ATEN CS1316 KVM switch Rack mounting Black vsATEN CS1708i-TAA KVM switch Rack mounting BlackCompare specs

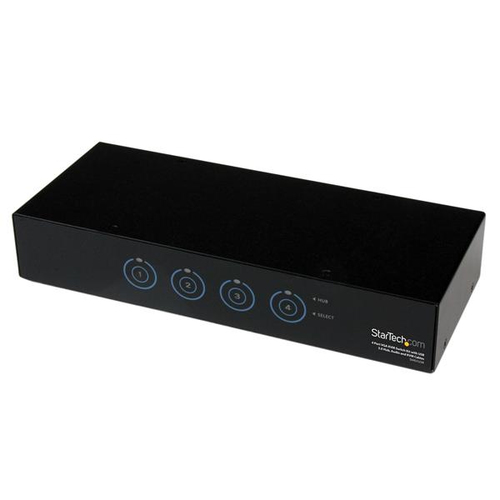

- ATEN CS1316 KVM switch Rack mounting Black vsStarTech.com 4 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio and CablesCompare specs

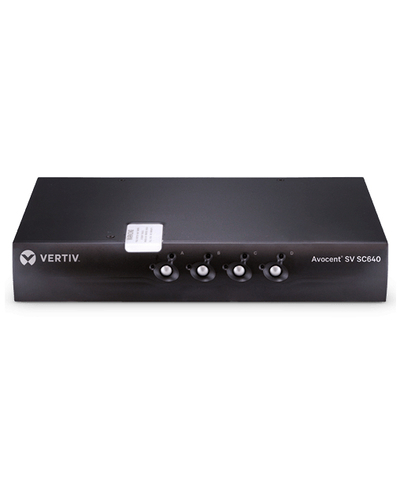

- ATEN CS1316 KVM switch Rack mounting Black vsVertiv Avocent SC740-202 KVM switch BlackCompare specs
- ATEN CS1316 KVM switch Rack mounting Black vsLindy 300m CAT5 KVM Extender Combo, USB and VGACompare specs

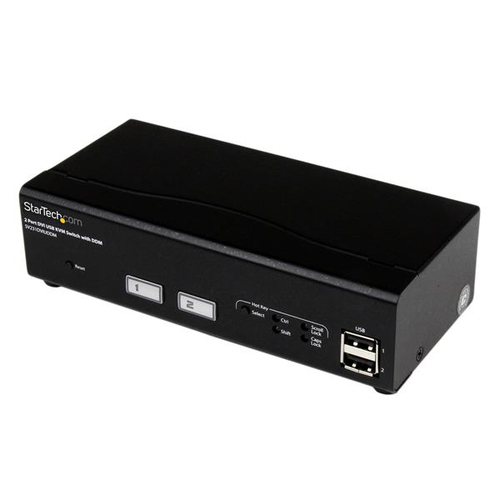

- ATEN CS1316 KVM switch Rack mounting Black vsStarTech.com 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and CablesCompare specs
