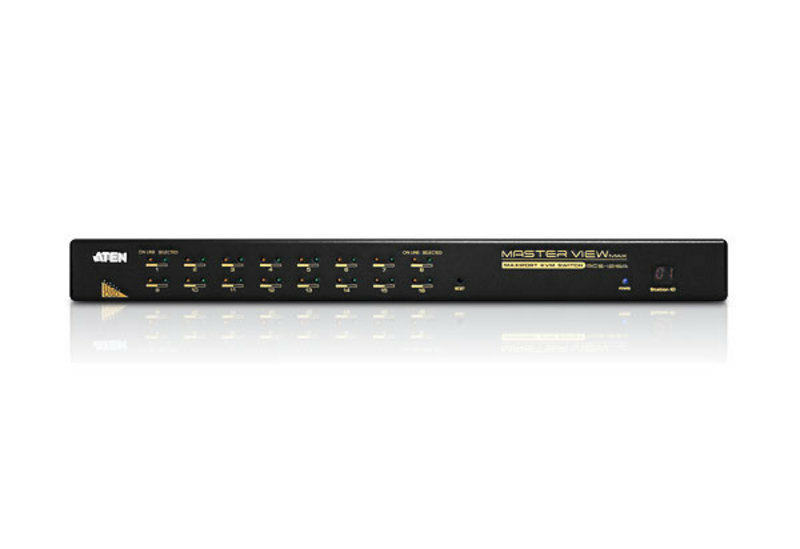

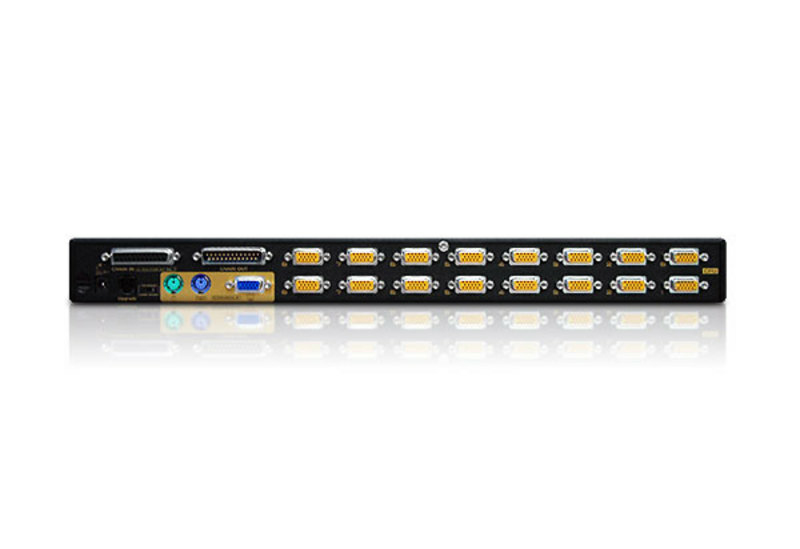

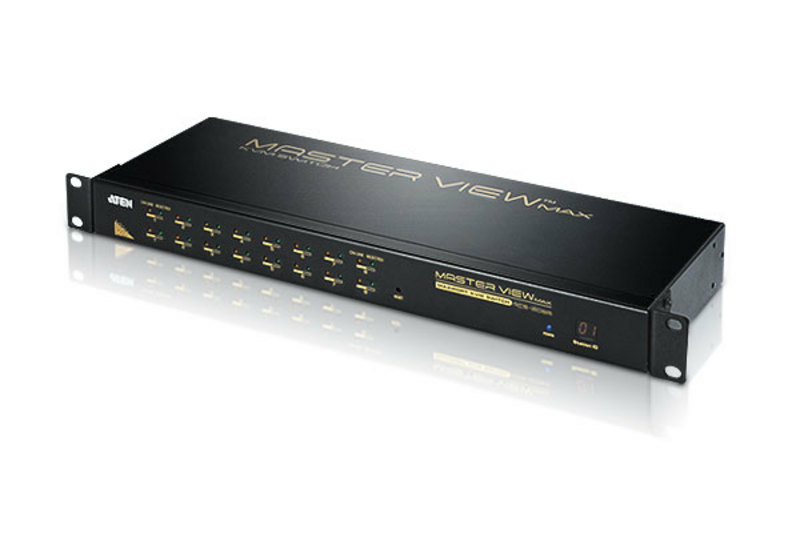

CS1216A-AT-G KVM switch Rack mounting Black
Model CS1216A-AT-GEAN 672792001772
39 specifications
- Weight2.96 kg
- ColourBlack
- Number of computers controlled16
- HD typeQXGA
- Rack mountingYes
- Built-in displayNo
Overview
- Weight
- 2.96 kg
- Colour
- Black
- Number of computers controlled
- 16
- HD type
- QXGA
- Rack mounting
- Yes
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1216A-AT-G
- Part number
- CS1216A-AT-G
- EAN / UPC
- 672792001772, 4710423770041
- Also known as
- ATEN CS1216A-AT-G KVM switch Rack mounting Black
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 17 |
| Console ports | VGA (D-Sub) |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 255 s |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cable length | 1.8 m |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 9 V |
| Power consumption (typical) | 6.27 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 159.2 mm |
| Height | 44 mm |
| Weight | 2.96 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
