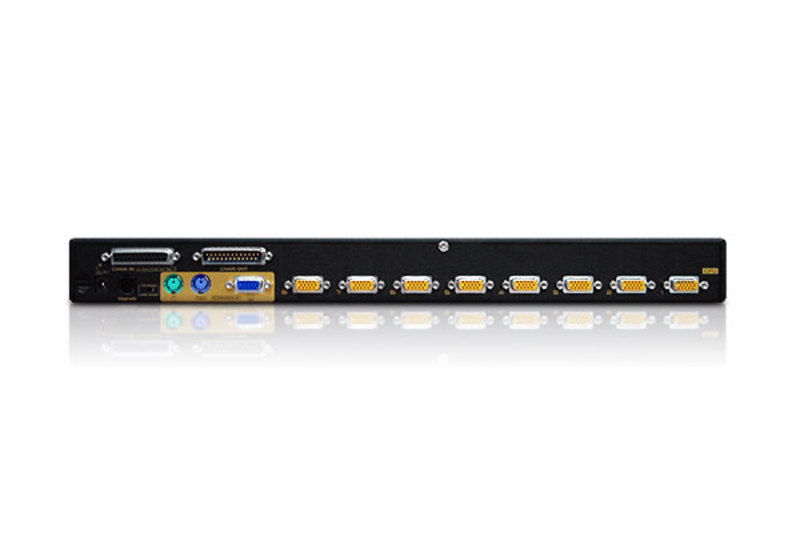

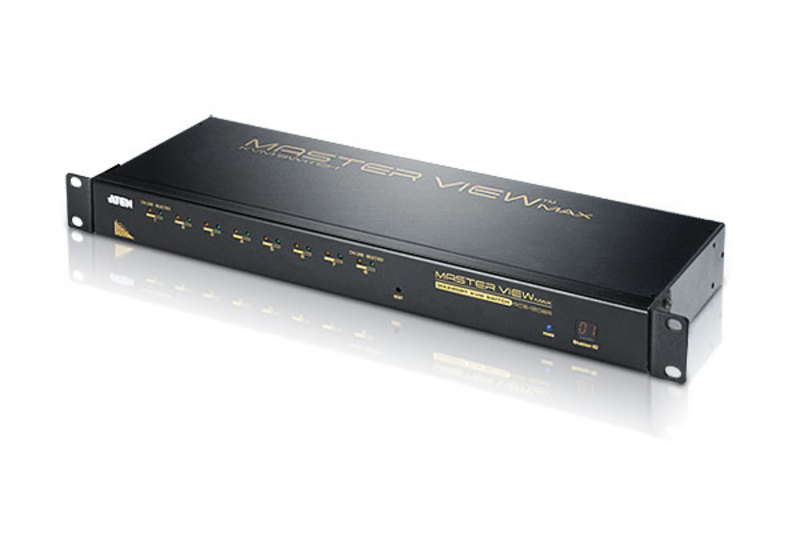

CS1208A-AT-U KVM switch Rack mounting Blue
Model CS1208A-AT-U
36 specifications
- Weight2.73 kg
- ColourBlue
- Number of computers controlled256
- Maximum resolution2048 x 1536 pixels
- Rack capacity1U
- On Screen Display (OSD)Yes
Overview
- Weight
- 2.73 kg
- Colour
- Blue
- Number of computers controlled
- 256
- Maximum resolution
- 2048 x 1536 pixels
- Rack capacity
- 1U
- On Screen Display (OSD)
- Yes
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1208A-AT-U
- Part number
- CS1208A-AT-U
- Also known as
- ATEN CS1208A-AT-U KVM switch Rack mounting Blue
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 256 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| Console ports | PS/2, VGA (D-Sub) |
| PS/2 ports quantity | 2 |
| DC-in jack | No |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| DDC2B support | Yes |
| HDCP | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Blue |
| Housing material | Metal |
| LED indicators | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 9 V |
| Power consumption (typical) | 7.5 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 443 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 2.73 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC, KVM |
| Manual | Yes |
| Rack mount kit | Yes |
