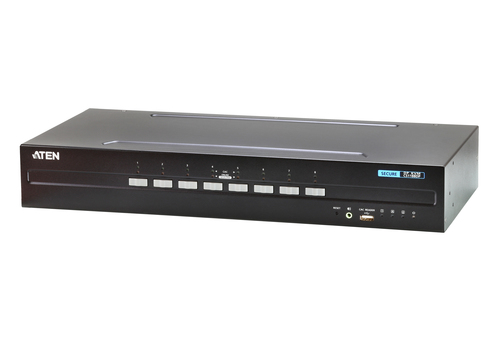

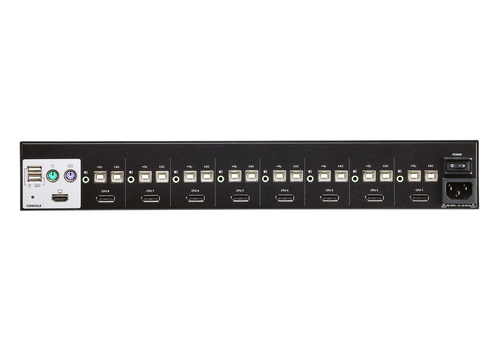

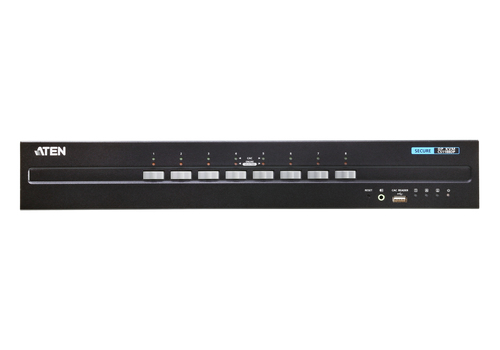

8-Port USB DisplayPort Secure KVM Switch (PSS PP v3.0 Compliant)
Model CS1188DP-AT-U
37 specifications
- Weight3.05 kg
- ColourBlack
- Number of computers controlled8
- HD type4K Ultra HD
- Rack mountingYes
- Built-in displayNo
Overview
- Weight
- 3.05 kg
- Colour
- Black
- Number of computers controlled
- 8
- HD type
- 4K Ultra HD
- Rack mounting
- Yes
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1188DP-AT-U
- Part number
- CS1188DP-AT-U
- Also known as
- ATEN 8-Port USB DisplayPort Secure KVM Switch (PSS PP v3.0 Compliant)
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| USB 2.0 Type-B ports quantity | 16 |
| Console USB ports quantity | 2 |
| Console ports | HDMI, PS/2, USB A |
| Console HDMI ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 9 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 9.4 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 205 mm |
| Height | 66 mm |
| Weight | 3.05 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
