CS1184D4 KVM switch Black
Model CS1184D4EAN 672792013201
46 specifications
- Weight1.96 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceAC
Overview
- Weight
- 1.96 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1184D4
- Part numbers
- CS1184D4, CS1184D4-AT-G
- EAN / UPC
- 672792013201, 4710469341397
- Also known as
- ATEN CS1184D4 KVM switch Black
Specifications
46 specifications in 10 groups

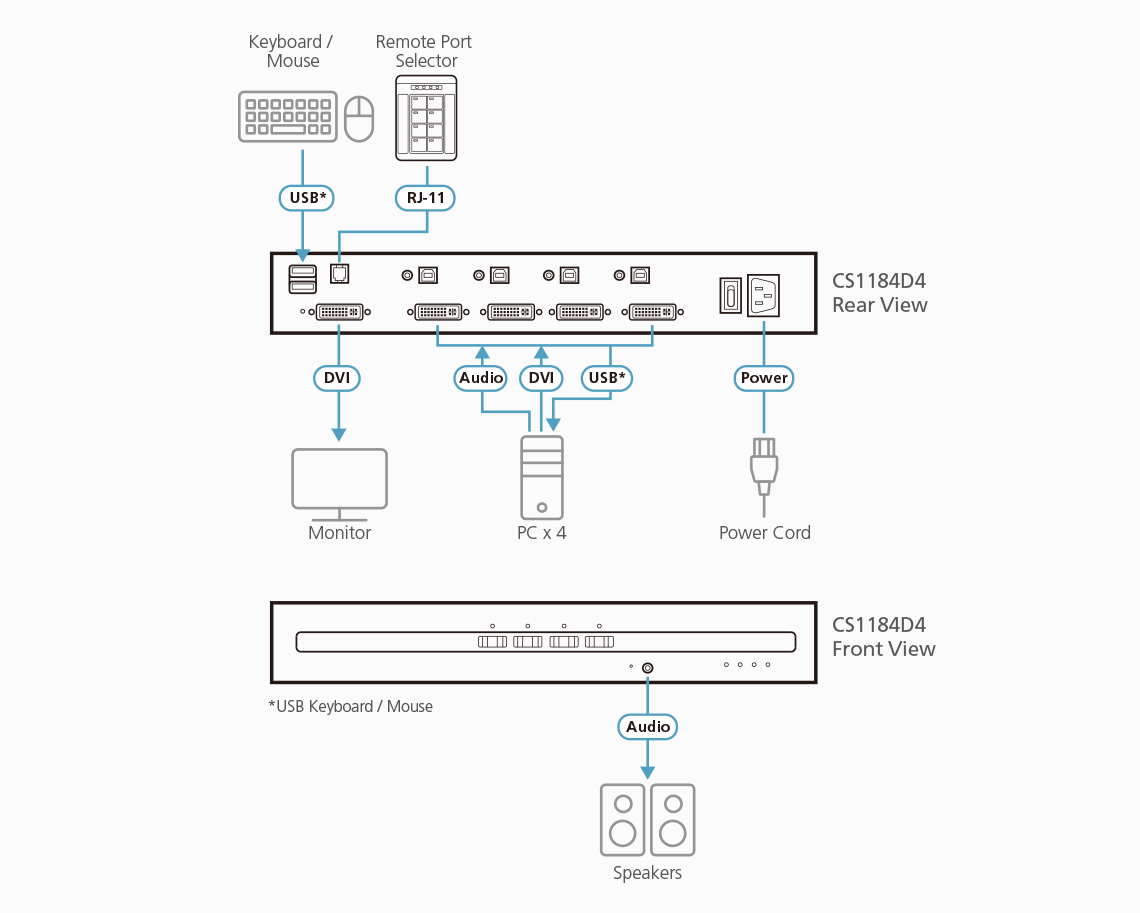

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | DVI-I, USB A |
| Console DVI-I ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| RJ-11 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 8.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163.9 mm |
| Depth | 335 mm |
| Height | 44 mm |
| Weight | 1.96 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package volume | 14583.175999 cm³ |
| Package weight | 2.54 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 5.88 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 8.25 kg |
| Master (outer) case volume | 54651.513938 cm³ |
| Country of origin | Taiwan |
