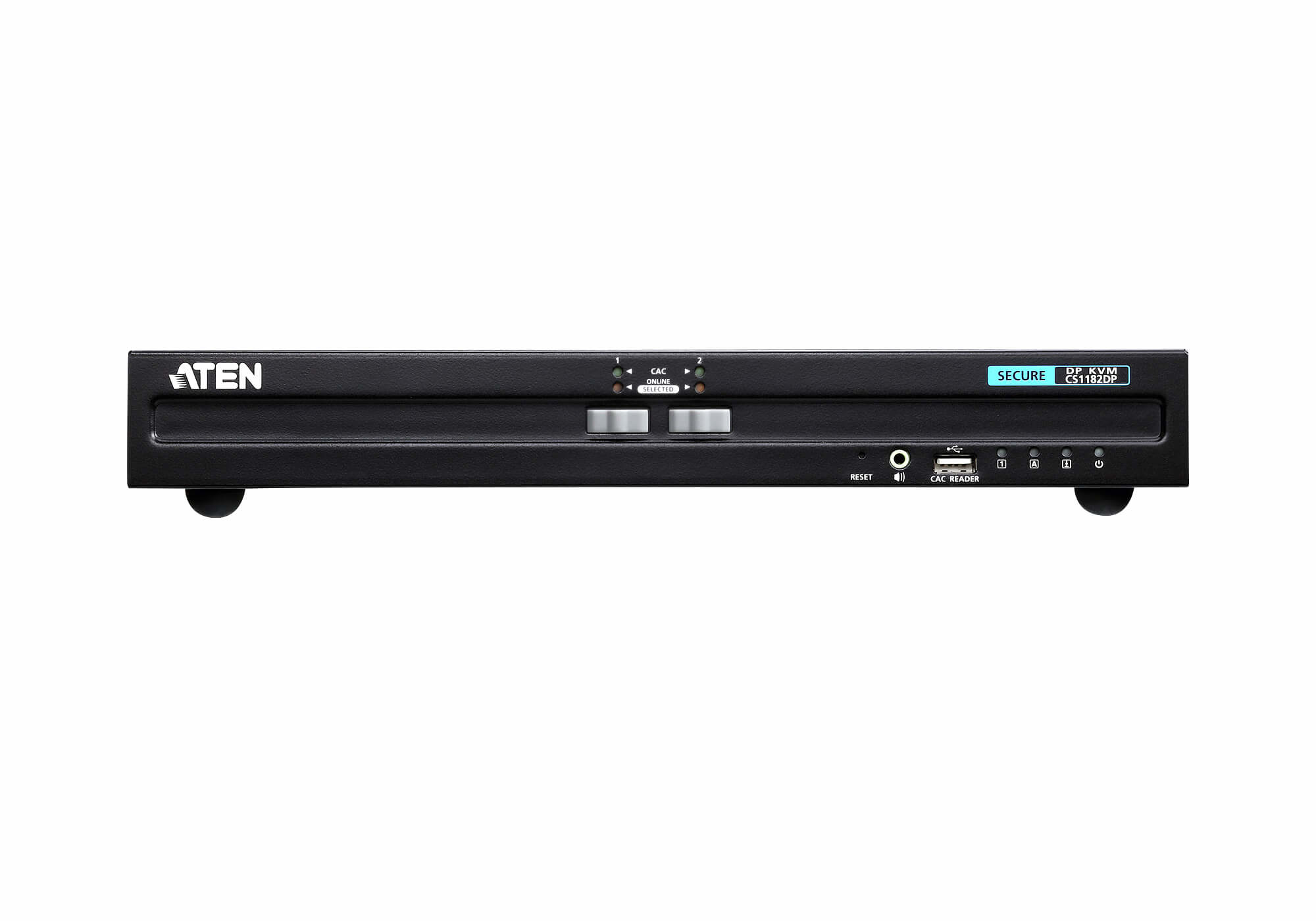

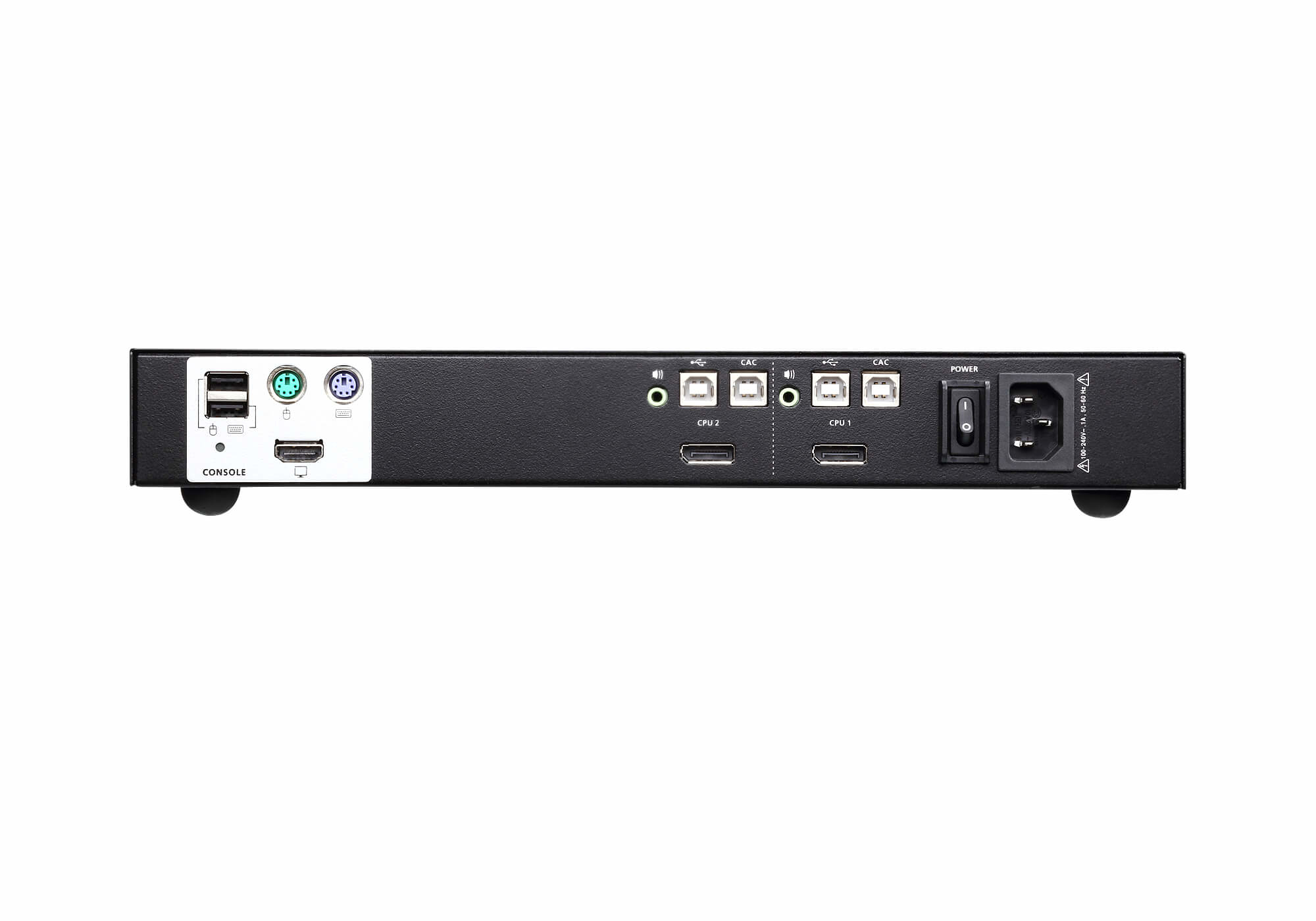

CS1182DP-AT-X KVM switch Rack mounting Black
Model CS1182DP-AT-X
43 specifications
- Weight1.94 kg
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 1.94 kg
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1182DP-AT-X
- Part number
- CS1182DP-AT-X
- Also known as
- ATEN CS1182DP-AT-X KVM switch Rack mounting Black
Specifications
43 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, PS/2 |
| USB connector type | USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 3 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 3.8 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 335 mm |
| Depth | 163 mm |
| Height | 44 mm |
| Weight | 1.94 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.47 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Quick installation guide | Yes |
