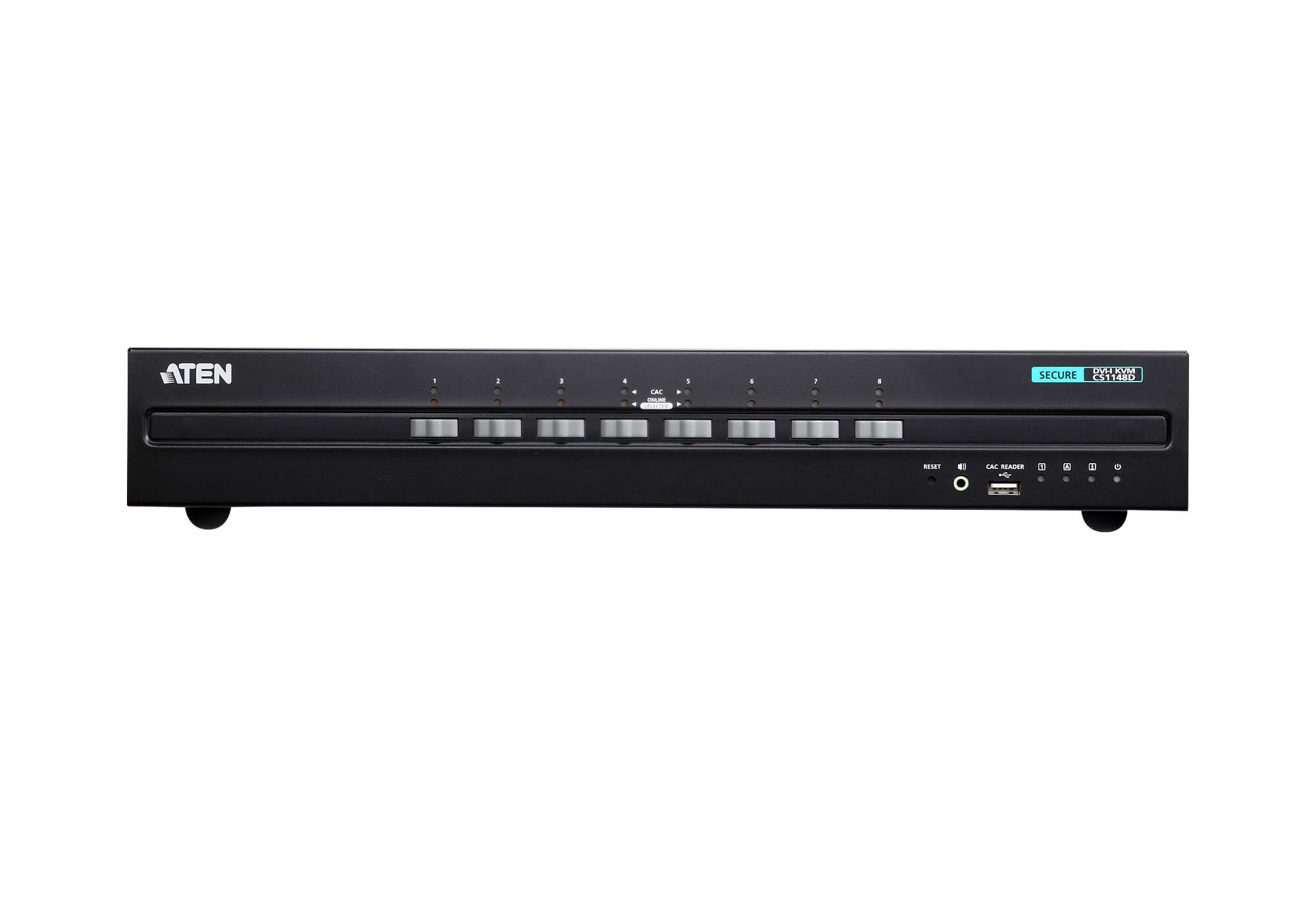

CS1148D-AT-E KVM switch Black
Model CS1148D-AT-E
32 specifications
- Weight3.34 kg
- ColourBlack
- Number of computers controlled8
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceAC
Overview
- Weight
- 3.34 kg
- Colour
- Black
- Number of computers controlled
- 8
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- AC
- Brand
- ATEN
- Category
- KVM Switch
- Model
- CS1148D-AT-E
- Part number
- CS1148D-AT-E
- Also known as
- ATEN CS1148D-AT-E KVM switch Black
Specifications
32 specifications in 8 groups

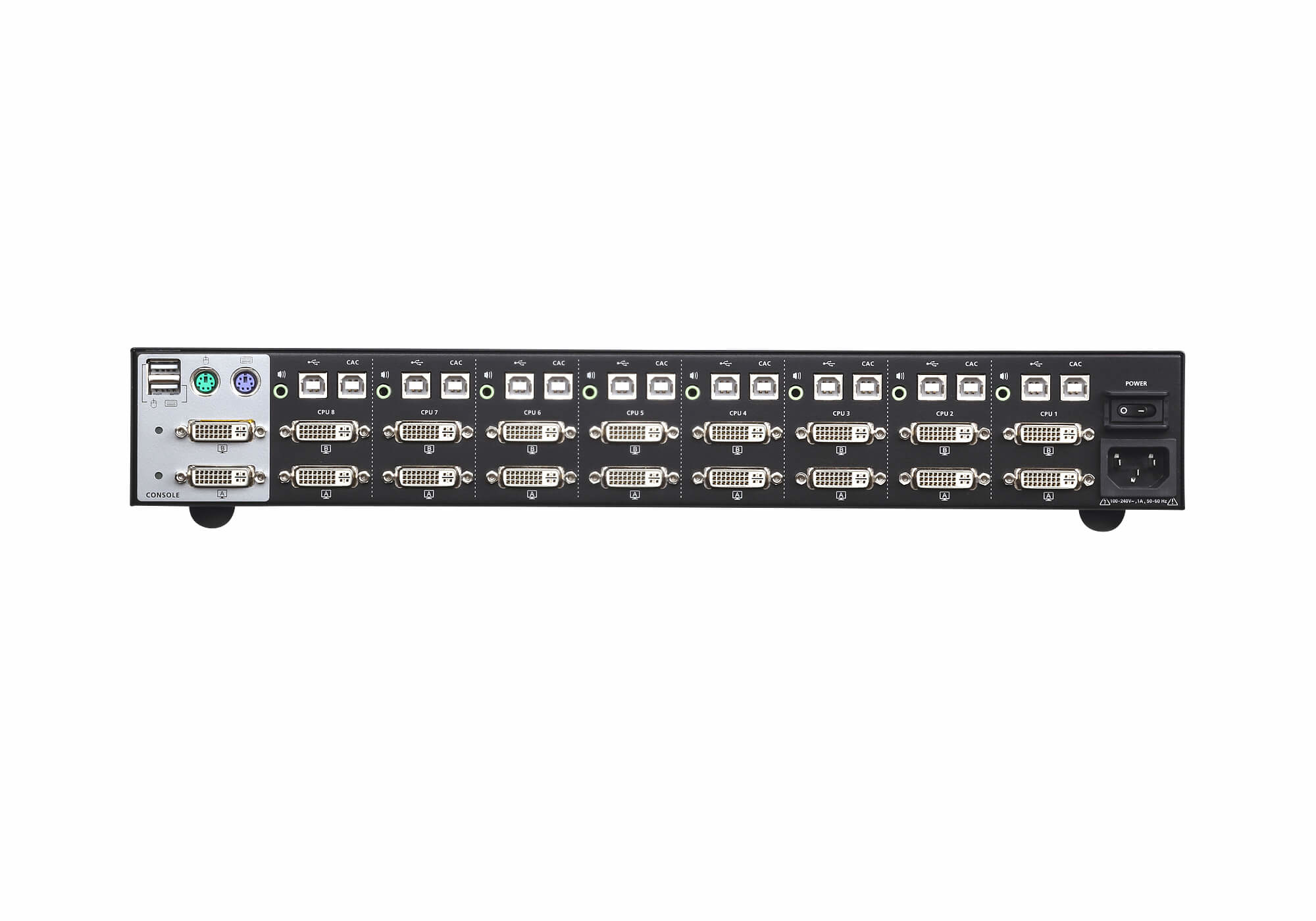

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | DVI-I |
| DVI-I ports quantity | 18 |
| Console USB ports quantity | 2 |
| Console ports | DVI-I, PS/2, USB A |
| USB connector type | USB Type-A, USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204.9 mm |
| Depth | 432.4 mm |
| Height | 65.5 mm |
| Weight | 3.34 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
